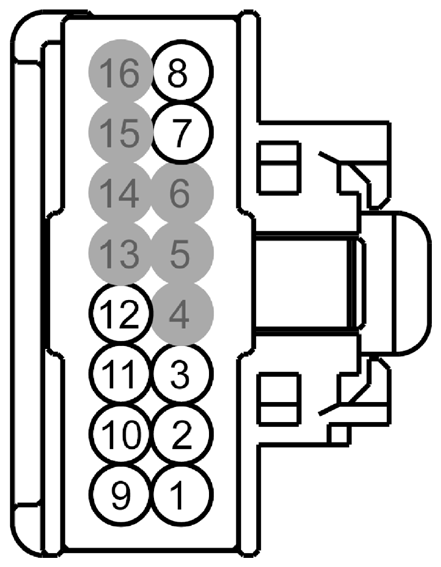

CLOCKSPRING Connector End View (C218B)

Fig 1: Identifying Clockspring Connector (C218B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (BN)	*	TRIP SIGNAL
2	* (VT)	*	DISPLAY/TRIP GROUND
3	* (GY)	*	CTRL MOD. - INSTRUMENT CLUSTER # SWITCH INFORMATION/MESSAGE CENTER SELECT
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	* (BK)	*	SWITCH - IP/SWITCH ILLUMINATION
8	* (GY)	*	CRUISE SIGNAL 1
9	* (VT)	*	CTRL MOD. - STEERING WHEEL # HORN
10	* (GN)	*	GROUND - PILLAR A LEFT
11	* (GY)	*	SWITCH - REDUNDANT AUDIO
12	* (VT)	*	CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used

Available Pigtail Kits

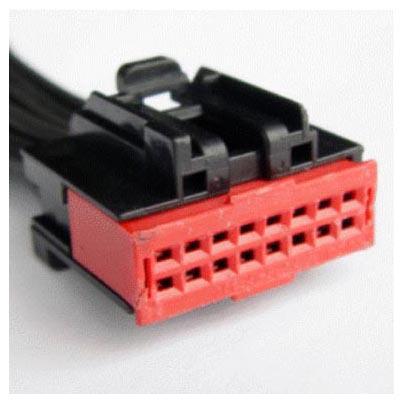

Pigtail Kit Part Number WPT-1152	Service Part Number: 3U2Z-14S411-AJD  Gauge: 18  Pin material: Silver  Cavities: 16  Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console - Inline (Female) Switch - Multifunction

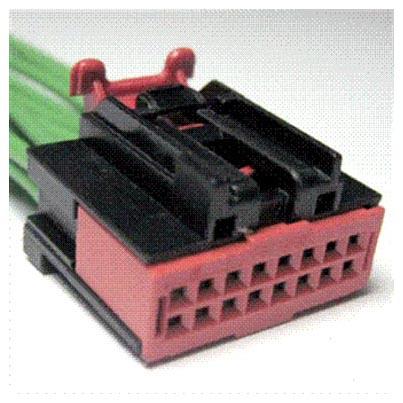

Pigtail Kit Part Number WPT-942	Service Part Number: 3U2Z-14S411-AJC  Gauge: 18  Pin material: Silver  Cavities: 16  Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console - Inline (Female) Switch - Multifunction Switch - Multifunction (Turn)

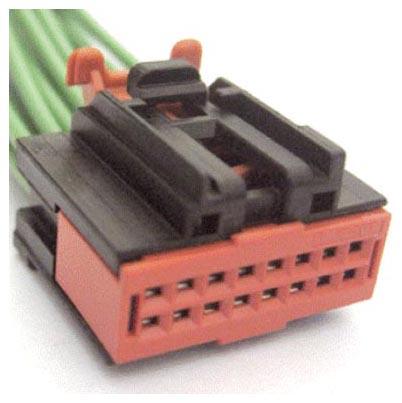

Pigtail Kit Part Number WPT-201	Service Part Number: 3U2Z-14S411-AJA  Gauge: 20  Pin material: Tin  Cavities: 16  Vehicle Uses Connector - Inline Mirror - Sideview Switch - Multifunction
