Driver Door Window Control Switch Connector End View (C535)

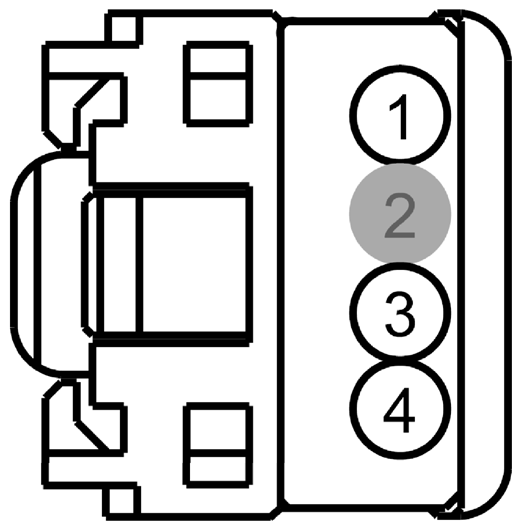

Fig 1: Identifying Driver Door Window Control Switch Connector (C535)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP17 (BK)	20	FUSE - 17 OR CIRCUIT BREAKER
2	*	*	Not Used
3	VPW32 (GY-BU)	22	CTRL MOD. - REAR DOOR CTRL MOD. DRIVER SIDE LIN BUS
4	GD135 (BK-VT)	20	GROUND - COWL SIDE/PILLAR A LEFT # 3RD POINT (6L2T)

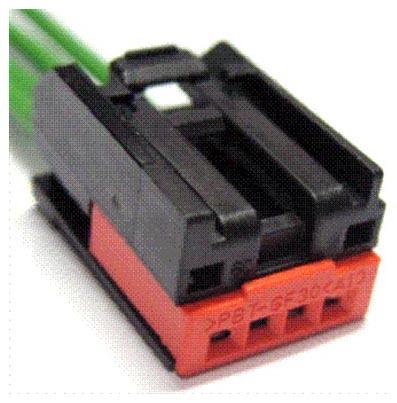

Available Pigtail Kits

Pigtail Kit Part Number WPT-1139
