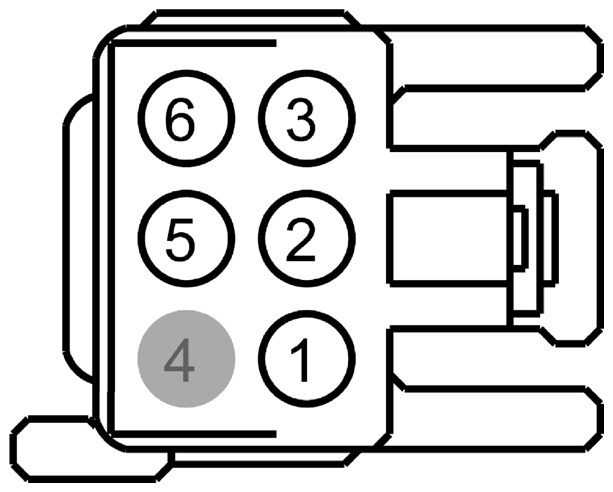

Glass Roof Panel Blind Module Connector End View (C9040)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP21 (GY-RD) | 22 | FUSE - 21 OR CIRCUIT BREAKER | |
| 2 | CBR16 (BU-GN) | 14 | FUSE - 16 OR CIRCUIT BREAKER | |
| 3 | GD138 (BK-WH) | 16 | GROUND - COWL SIDE/PILLAR A RIGHT (6L2T) | |
| 4 | * | * | Not Used | |
| 5 | CPR86 (GY-BN) | 20 | SWITCH - SHADE MOON/SUN ROOF OPEN | |
| 6 | CPR85 (GN-WH) | 20 | SWITCH - SHADE MOON/SUN ROOF CLOSE |

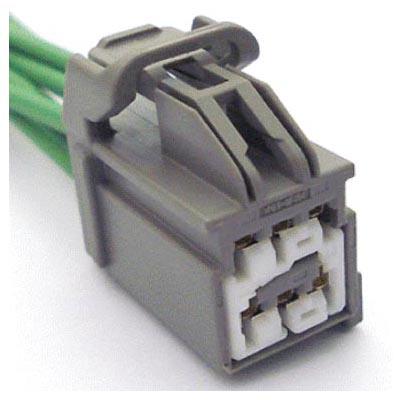

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-962 | Service Part Number: 3U2Z-14S411-JBB Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses
|
