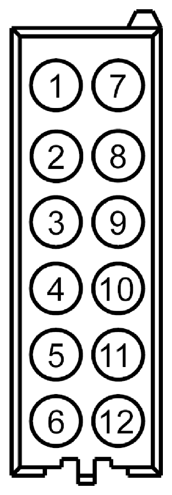

Parking Aid Module Connector End View (C4014C)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | VMP14 (WH-OG) | 22 | SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE) | |
| 4 | VMP17 (YE-OG) | 22 | SENSOR - PARKING AID # REAR # (RIGHT OUTER) | |
| 5 | VMP15 (YE-GN) | 22 | SENSOR - PARKING AID # REAR # (LEFT OUTER) | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | RMP07 (GN-WH) | 22 | CTRL MOD. - PARKING AID # SENSORS REAR - | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | LMP07 (BU-WH) | 22 | CTRL MOD. - PARKING AID # SENSORS REAR + | |
| 12 | * | * | Not Used |

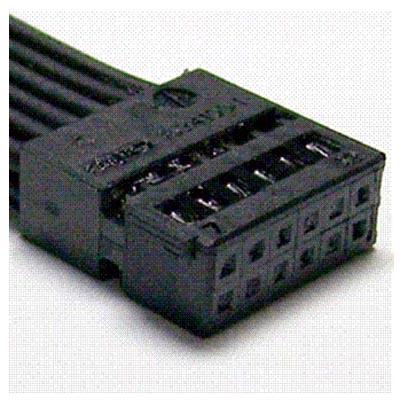

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1178 | Service Part Number: BU2Z-14S411-YA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses
|
