Cooling Module: Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure, refer to ENGINE COOLING SYSTEM HEALTH AND SAFETY PRECAUTIONS . Failure to follow this instruction may result in serious personal injury.

Refer to: ENGINE COOLING SYSTEM HEALTH AND SAFETY PRECAUTIONS .
Refer to: COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Refer to: COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Refer to: AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
Refer to: ACTIVE GRILLE SHUTTER .

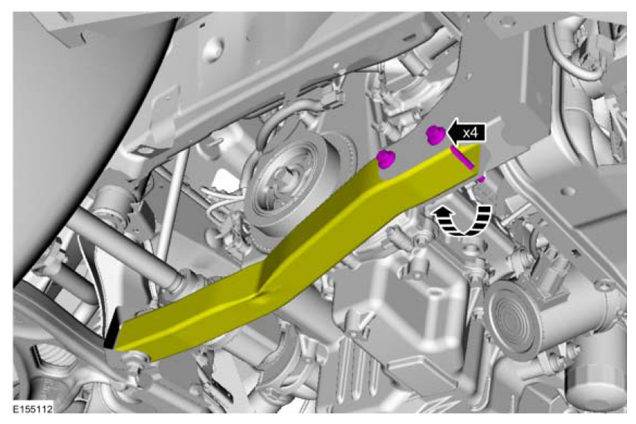

Torque: 15 Nm

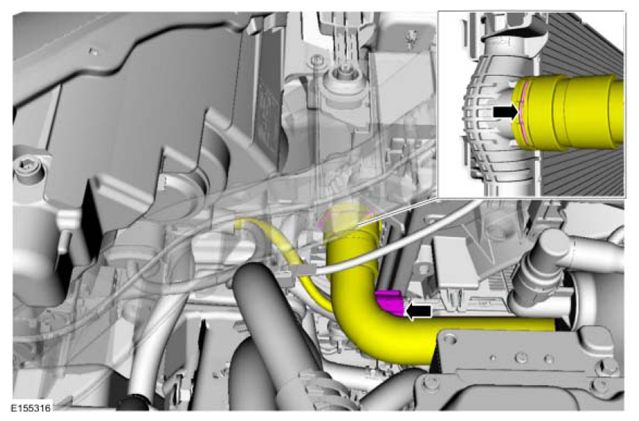

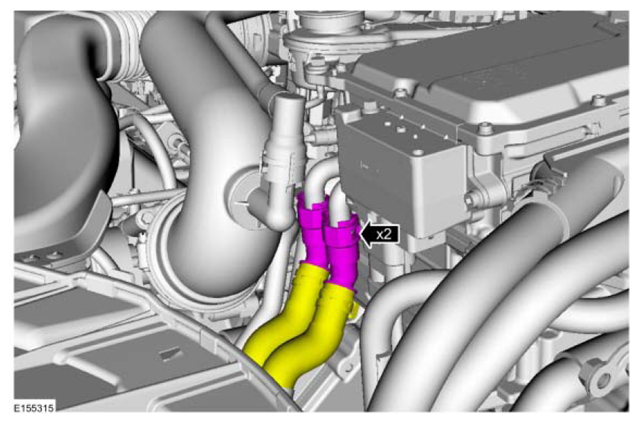

Courtesy of FORD MOTOR CO.

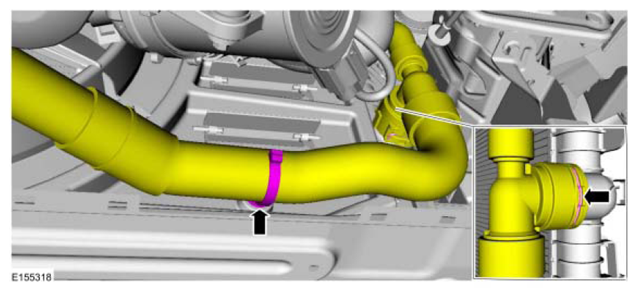

Courtesy of FORD MOTOR CO.

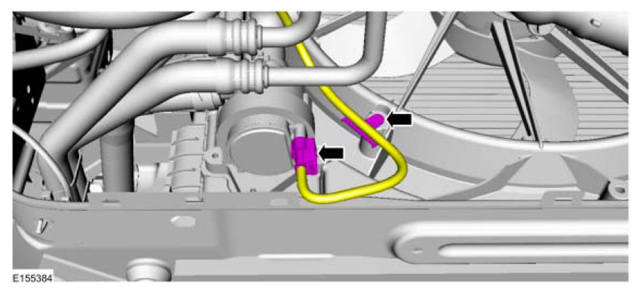

Courtesy of FORD MOTOR CO.

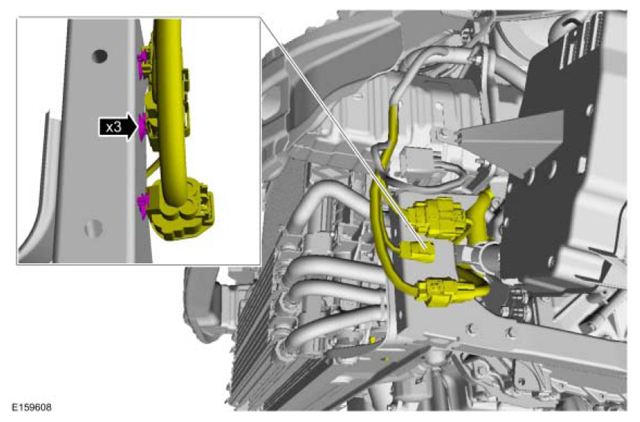

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.

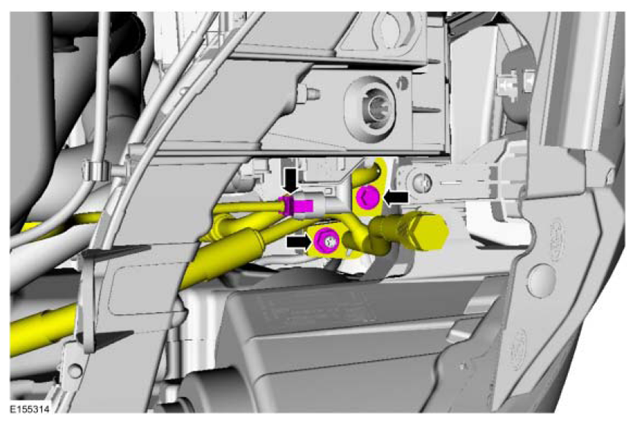

NOTE: Be prepared to capture escaping fluid

Plug holes and lines to minimize fluid loss.

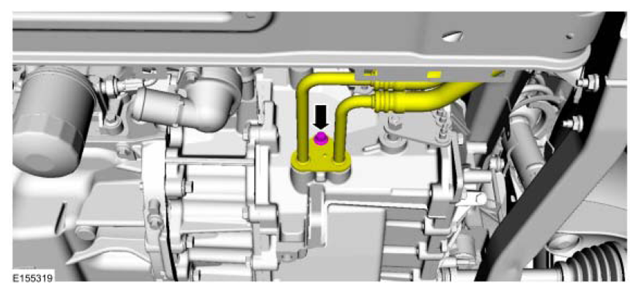

Torque: 25 Nm

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.

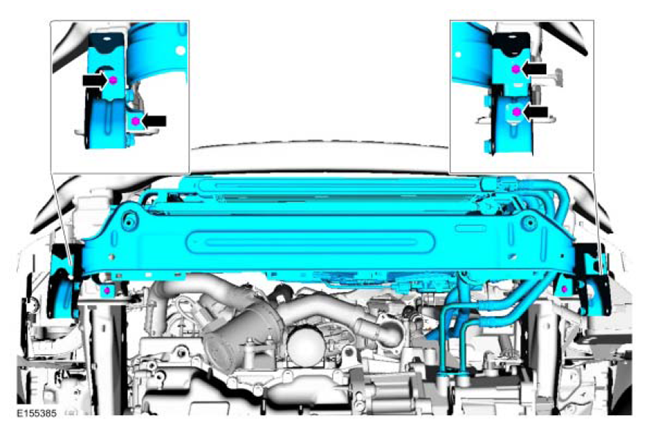

Both sides.
Torque: 25 Nm

Courtesy of FORD MOTOR CO.
This procedure step requires the specified number of technicians.
Torque: 25 Nm

Courtesy of FORD MOTOR CO.
