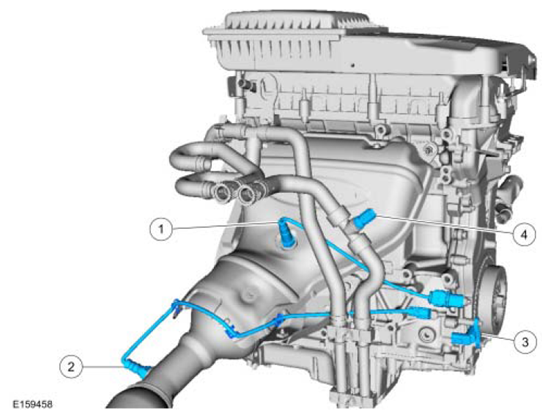

RH Engine Sensor Locations - PHEV

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9Y460	Heated oxygen sensor (HO2S)
2	9G444	Catalyst monitor sensor
3	6C315	Crankshaft position (CKP) sensor
4	12A648	Engine coolant temperature 2 (ECT2) sensor
