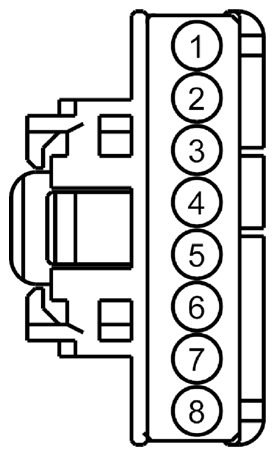

CLOCKSPRING Connector End View (C218A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR101 (VT-BN) | 20 | CTRL MOD. - AIR BAG DRIVER 1+ | |
| 2 | RR101 (YE-GN) | 20 | CTRL MOD. - AIR BAG DRIVER 1 - | |
| 3 | CRH03 (BN) | 22 | CTRL MOD. - STEERING WHEEL # HORN | |
| 4 | GD133 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT (6L2T) | |
| 5 | VME14 (GY-YE) | 22 | SWITCH - REDUNDANT AUDIO + | |
| 6 | RME24 (BU-WH) | 22 | CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO | |
| 7 | CR102 (BU) | 20 | CTRL MOD. - AIR BAG DRIVER 2 + | |
| 8 | RR102 (WH) | 20 | CTRL MOD. - AIR BAG DRIVER 2 - |

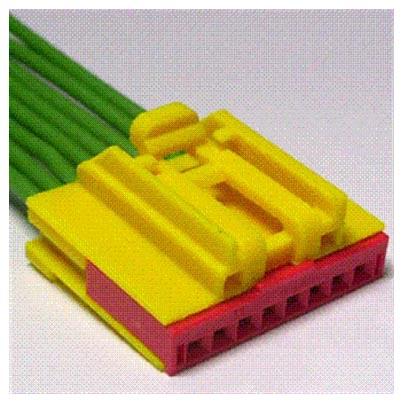

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1333 | Service Part Number: DU2Z-14S411-DA Gauge: 20 Pin material: Silver Cavities: 8 Vehicle Uses
|
