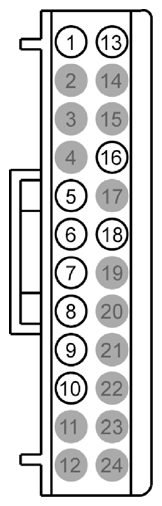

| 1 |
VDB06 (BK) |
18 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
CLS22 (GN-BN) |
20 |
CTRL MOD. - TURN LAMP LEFT MIRROR + |
|
| 6 |
CLN31 (VT-GN) |
20 |
CTRL MOD. - PUDDLE LAMP LEFT |
|
| 7 |
CRD13 (GN-VT) |
20 |
CTRL MOD. - HEATER MIRROR LEFT |
|
| 8 |
CPM28 (BU-BN) |
22 |
CTRL MOD. - LEFT MIRROR RIGHT |
|
| 9 |
CPM03 (BU-WH) |
22 |
CTRL MOD. - LEFT MIRROR COMMON GLASS ADJUSTMENT |
|
| 10 |
CPM29 (GN) |
22 |
CTRL MOD. - LEFT MIRROR UP |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
VDB07 (BK) |
18 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
GD135 (BK-VT) |
20 |
GROUND - COWL SIDE/PILLAR A LEFT # 3RD POINT (6L2T) |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
RPM05 (VT-GN) |
20 |
CTRL MOD. - LEFT MIRROR RETURN |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
* |
* |
Not Used |
|
