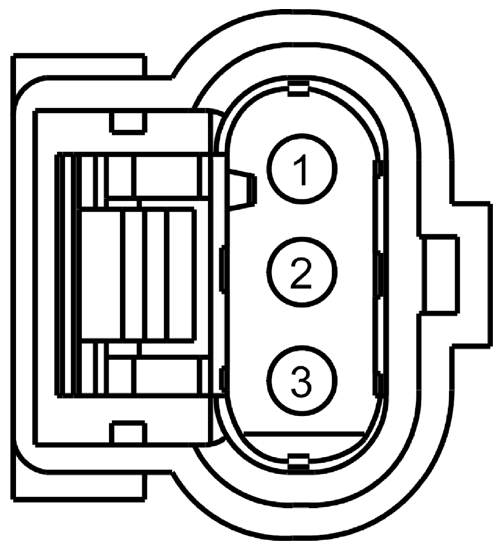

Hands Free Liftgate Actuation Module Connector End View (C4401)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPL45 (BN) | 18 | SWITCH - LIFTGATE/DECKLID RELEASE | |
| 2 | SBB01 (RD) | 18 | FUSE - 1 OR CIRCUIT BREAKER | |
| 3 | GD152 (BK-BU) | 18 | GROUND - PILLAR D RIGHT # 2ND POINT (6L2T) |
| Available Pigtail Kits | |
|---|---|

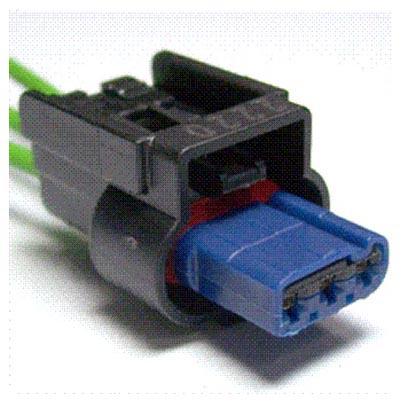

| Pigtail Kit Part Number WPT-1202 | Service Part Number: BU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses
|
