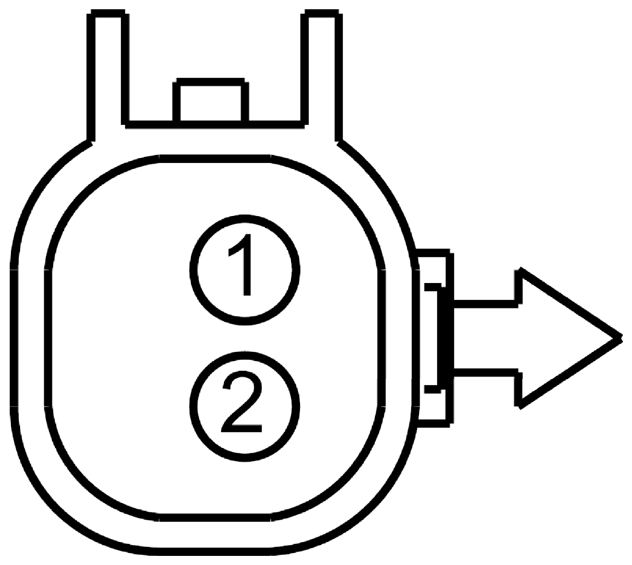

Liftgate Release Switch Connector End View (C4353)

Fig 1: Identifying Liftgate Release Switch Connector (C4353)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLS33 (GN)	20	LIFTGATE SWITCH
2	GD150 (BK-WH)	20	GROUND

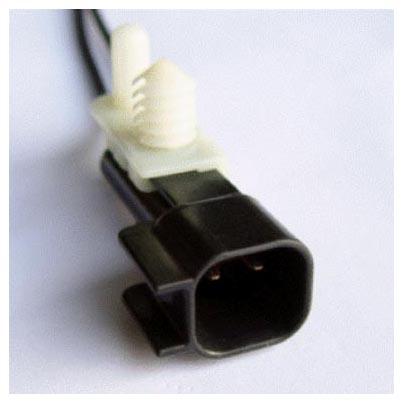

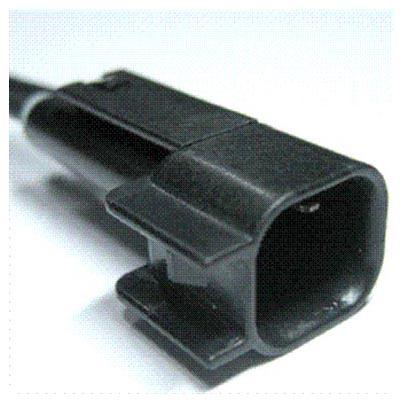

Available Pigtail Kits
Pigtail Kit Part Number WPT-1193	Service Part Number: 3U2Z-14S411-DCAB  Gauge: 16  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Fog/Driving Lamp - Side Marker (Rear Fender) Mirror - Sideview Sensor - Crash (Engine Compartment) Speaker - Tweeter - LH - Front Speaker - Tweeter - RH - Front
Pigtail Kit Part Number WPT-693	Service Part Number: 3U2Z-14S411-DCAA  Gauge: 18  Pin material: Tin  Cavities: 2  Vehicle Uses Lamp - CHMSL (Center High Mount Stop Lamp)
