Steering Gear: Installation

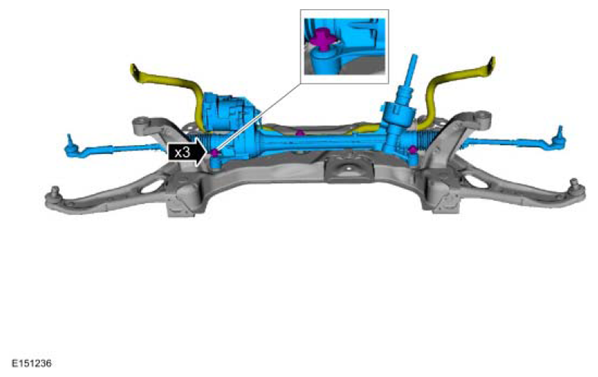

  1. Finger tight at this stage.
    G08408080Courtesy of FORD MOTOR CO.

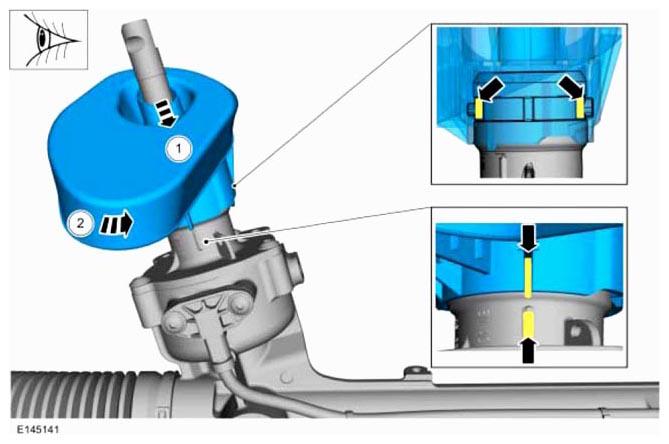

  2. G08062158Courtesy of FORD MOTOR CO.

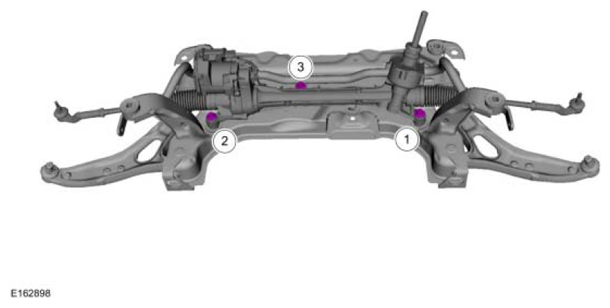

    1. Torque:

      Stage 1: 110 Nm

      Stage 2: Loosen:  360°

      Stage 3: 56 Nm

      Stage 4: 180°

    2. Torque:

      Stage 1: 110 Nm

      Stage 2: Loosen:  360°

      Stage 3: 56 Nm

      Stage 4: 180°

    3. Torque:

      Stage 1: 110 Nm

      Stage 2: Loosen:  360°

      Stage 3: 56 Nm

      Stage 4: 180°

      G08408082Courtesy of FORD MOTOR CO.
    4. Refer to: FRONT SUBFRAME .
