Transmission Fluid Drain and Refill: Filling

Remove the following items:
1. Refer to: AIR CLEANER .
2. Refer to: AIR CLEANER OUTLET PIPE .
3. Refer to: COWL PANEL .

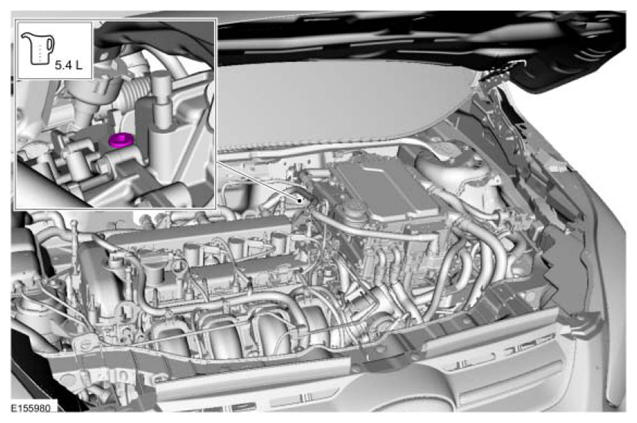

Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV)
Torque: 35 Nm

Courtesy of FORD MOTOR CO.
Refer to: AIR CLEANER .
Refer to: AIR CLEANER OUTLET PIPE .
1. Start the engine and allow to run for 1 minute. Turn engine off and wait 5 minutes.
2. Allow the excess fluid to drain. The fluid should be even with the bottom of the oil leveling plug hole.
Torque: 8 Nm

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Refer to: COWL PANEL .
