OEM Ground Distribution: Grounds: Notes

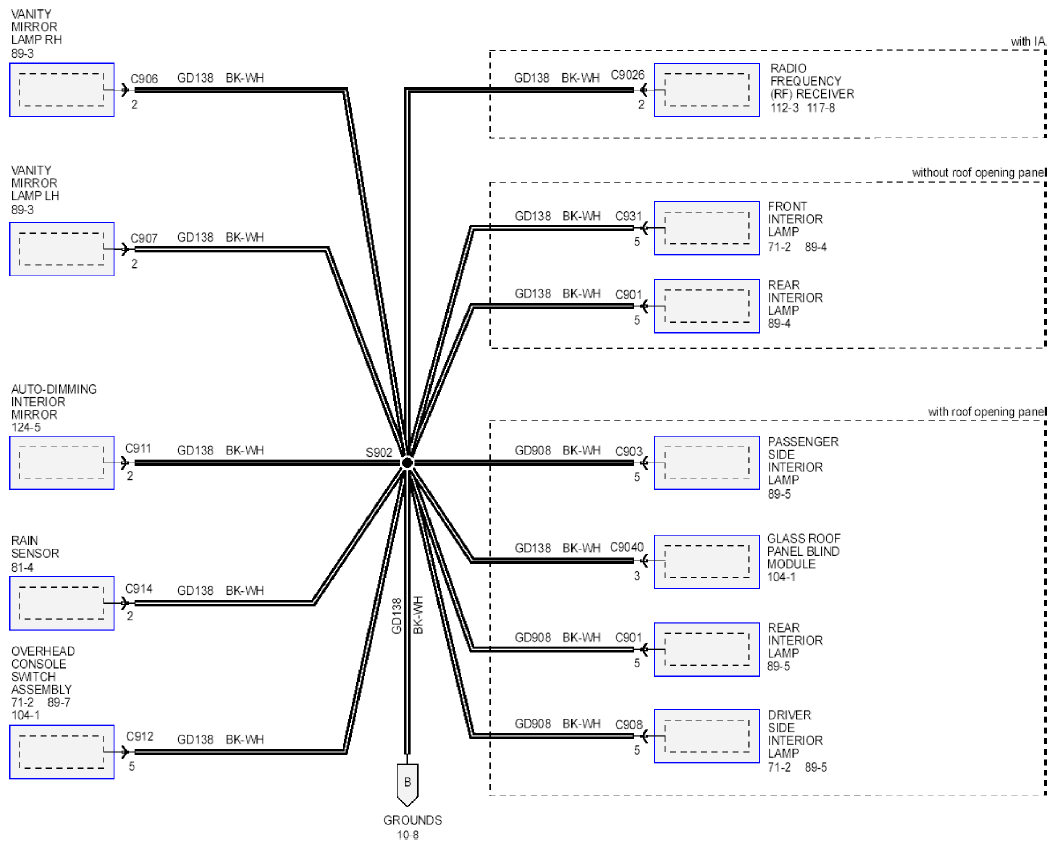

Fig 1: Ground Circuit Diagram - (1 Of 2)
Courtesy of FORD MOTOR CO.

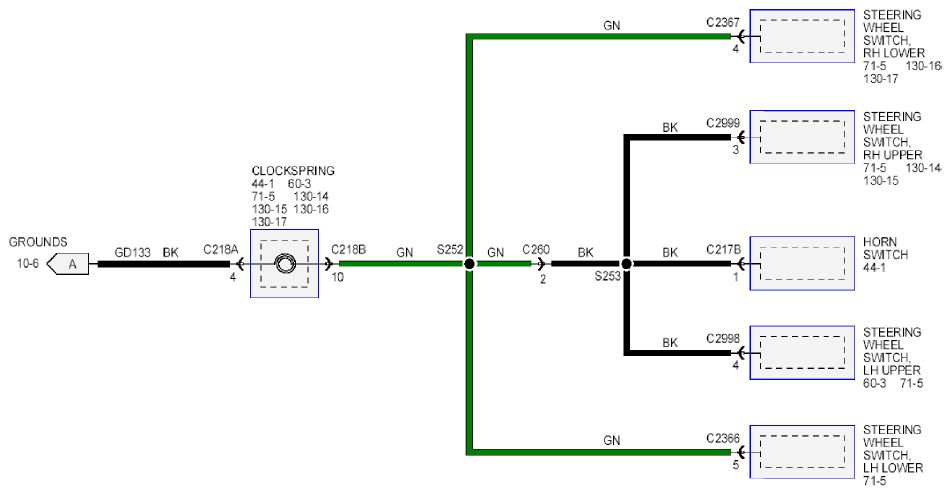

Fig 2: Ground Circuit Diagram - (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
