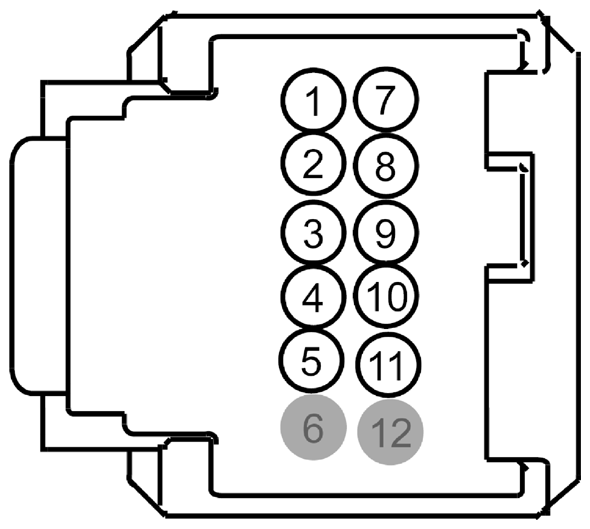

Battery Energy Control Module (BECM) Connector End View (C4237C)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VYB33 (BK) | 22 | TEMP RTN | FHEV |
| 2 | VYB34 (BK) | 22 | TEMP RTN | FHEV |
| 3 | VYB35 (BK) | 22 | TEMP RTN | FHEV |
| 4 | VYB36 (BK) | 22 | TEMP RTN | FHEV |
| 5 | VYB37 (BK) | 22 | TEMP RTN | FHEV |
| 6 | * | * | Not Used | |
| 7 | RYB33 (BK) | 22 | TEMP SIG | FHEV |
| 8 | RYB34 (BK) | 22 | TEMP SIG | FHEV |
| 9 | RYB35 (BK) | 22 | TEMP SIG | FHEV |
| 10 | RYB36 (BK) | 22 | TEMP SIG | FHEV |
| 11 | RYB37 (BK) | 22 | TEMP SIG | FHEV |
| 12 | * | * | Not Used |
