Home › Ford › 2013 › Edge Sport, AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Ground Distribution › Grounds › G201

OEM Ground Distribution: Grounds: G201

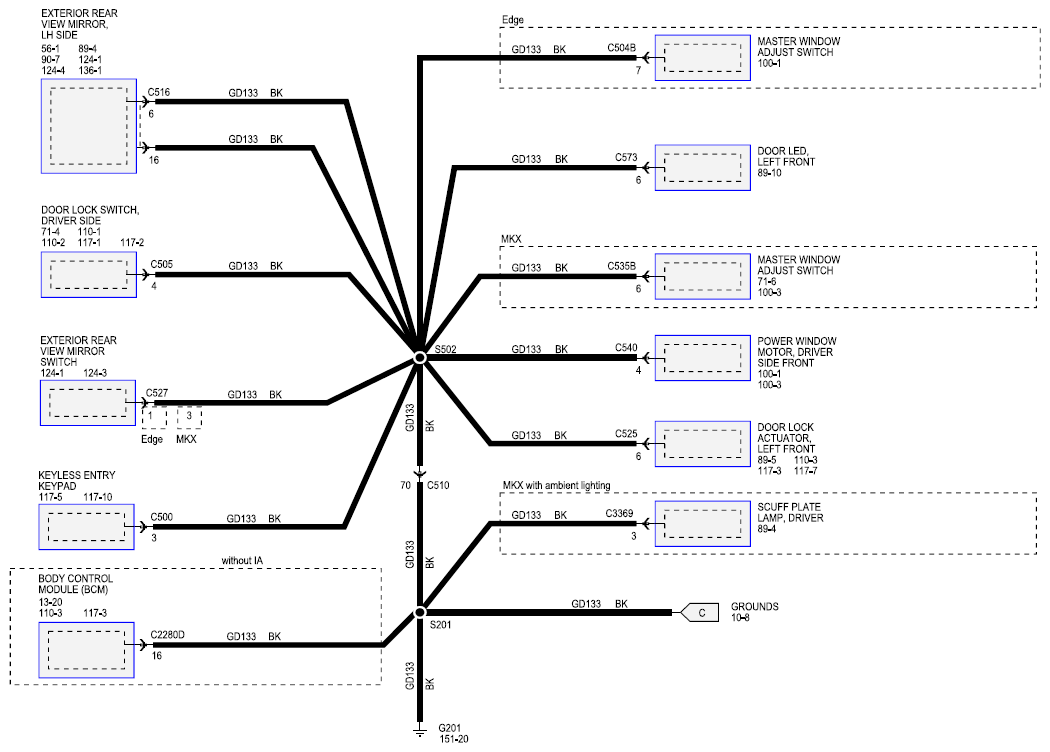

Fig 1: Ground Circuit Diagram - G201
G08726933Courtesy of FORD MOTOR CO.
