Differential Housing Cover: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Clear Silicone Rubber TA-32 |
ESB-M4G92-A |
| Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL (US); CXY-80W90-1L (Canada) |
WSP-M2C197-A |

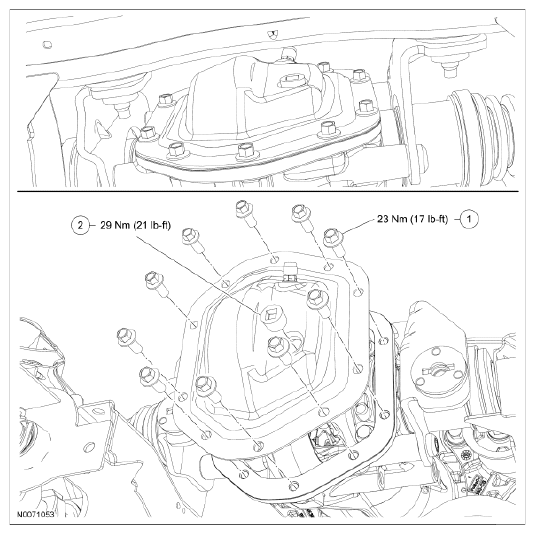

| Item | Part Number | Description |
|---|---|---|
| 1 | W505262 | Differential housing cover bolt (10 required) |
| 2 | 4N282 | Filler plug |
