Axle Assembly: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

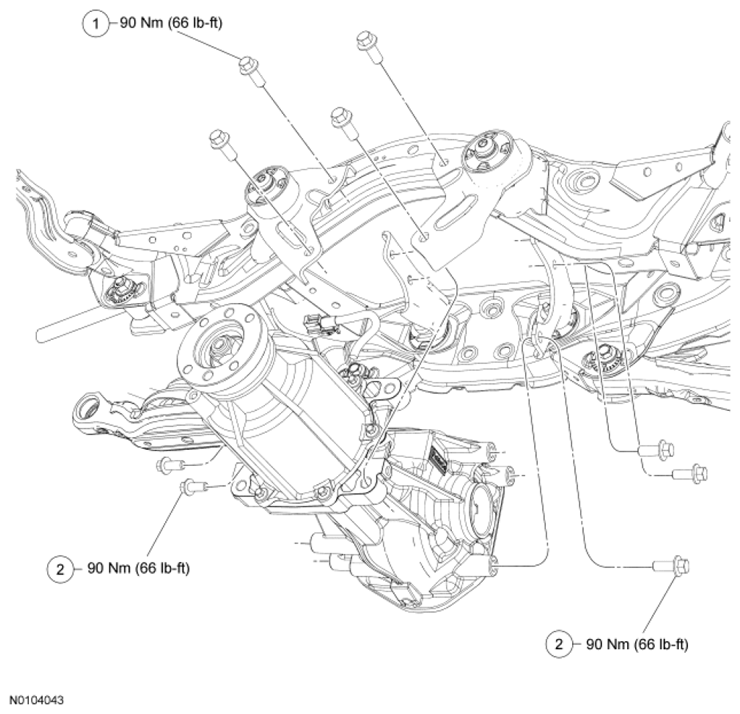

Rear Drive Unit (RDU) with stamped steel differential cover shown in illustration, RDU with aluminum cover similar .
| Item | Part Number | Description |
|---|---|---|
| 1 | W506540 | Differential housing-to-front insulator bracket bolt (4 required) |
| 2 | W500043 | Side insulator bracket-to-rear axle housing bolts (5 or 6 required defendant on RDU style) |
