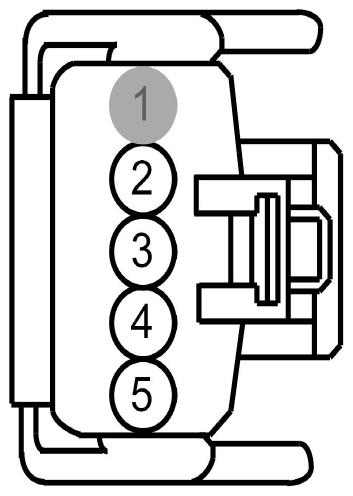

Backup Transceiver Connector End View (C3371)

Fig 1: Identifying Backup Transceiver Connector (C3371)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	VPK33 (WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA AUXILIARY/BACKUP CLOCK
3	VPK32 (WH-BU)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA AUXILIARY/BACKUP
4	RPK32 (YE-GY)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA AUXILIARY/BACKUP
5	LPK32 (GN-BU)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA AUXILIARY/BACKUP
