Safety Canopy Module, Passenger Connector End View (C9019)

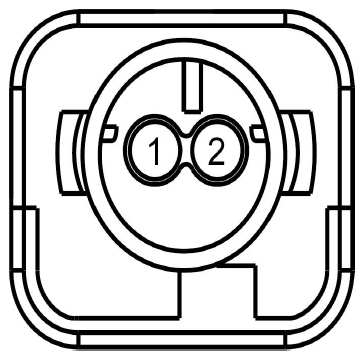

Fig 1: Identifying Safety Canopy Module, Passenger Connector (C9019)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR111 (BN-WH)	20	CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE
2	RR111 (YE-VT)	20	CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE

Available Pigtail Kits

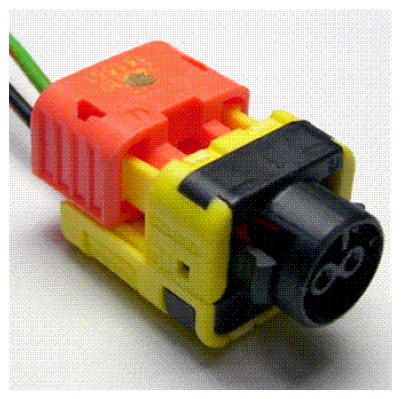

Pigtail Kit Part Number WPT-1228	Service Part Number: BU2Z-14S411-BMA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Airbag - Side Curtain
