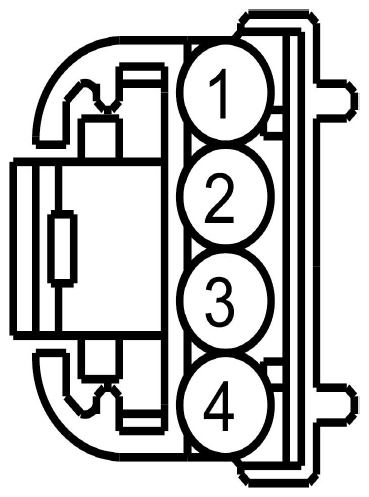

Sunload Sensor Connector End View (C286)

Fig 1: Identifying Sunload Sensor Connector (C286)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VH417 (YE-OG)	22	SENSOR - SUN LOAD # RIGHT
2	VLF14 (BU-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT
3	VH416 (VT-GY)	22	SENSOR - SUN LOAD # LEFT
4	GD115 (BK-GY)	20	GROUND - CROSS CAR BEAM # 2ND POINT

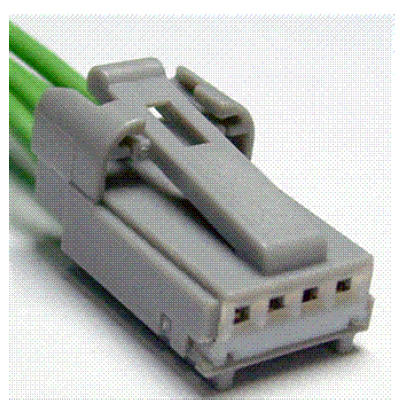

Available Pigtail Kits
Pigtail Kit Part Number WPT-1013	Service Part Number: 9U2Z-14S411-TA  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Module - Auto Lamps Sensor - Sunload
