Automatic Torque Coupling (ATC) Configuration

Using the scan tool, under the toolbox icon select Powertrain then select ATC Barcode Entry. Follow the instructions displayed on the scan tool.
NOTE: If the ATC bar code information is not correct, RDU damage or driveability concerns can occur.
Enter the 4-digit numeric bar code found on the label. The scan tool verifies the digits entered are valid and displays a message if the information is not valid.

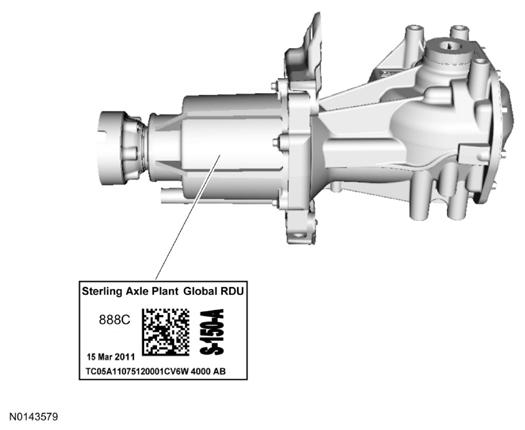

Fig 1: Identifying Sterling Axle Plant Global RDU
Courtesy of FORD MOTOR CO.
Follow the instructions displayed on the scan tool.
Road test the vehicle. Carry out the AWD drive cycle after downloading the ATC solenoid bar code information to the PCM. REFER to ALL WHEEL DRIVE (AWD) SYSTEMS .
