Section 428 (Parking Aid System)
›
Removal And Installation
›
Parking Aid Sensor
›

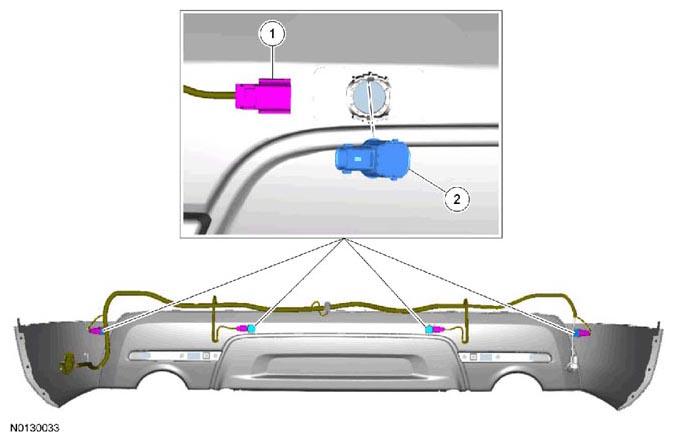

Exploded View
Exploded View
WARNING:
This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Item
Part Number
Description
1
15K868
Rear parking aid sensor electrical connector
2
15K859
Rear parking aid sensor
