Fog Lamp: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

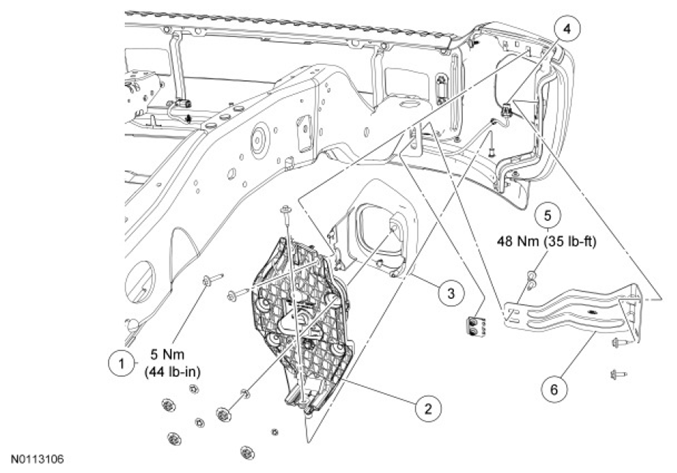

| Item |
Part Number |
Description |
| 1 |
W503926 |
Fog lamp bolts (3 required) |
| 2 |
15200/15201 |
Fog lamp assembly (RH/LH) |
| 3 |
15A245/15A246 |
Fog lamp bezel |
| 4 |
- |
Fog lamp electrical connector (part of 15A211) |
| 5 |
W705201 |
Front bumper bracket bolts (4 required) |
| 6 |
17B836/17B837 |
Front bumper bracket (RH/LH) |
