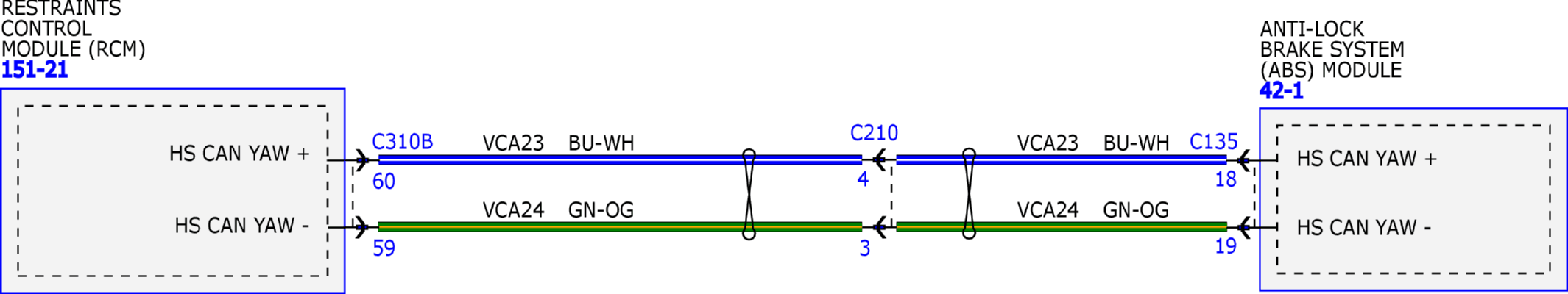

Fig 1: Module Communications Network System Wiring Diagrams (1 of 8)
Courtesy of FORD MOTOR COMPANY

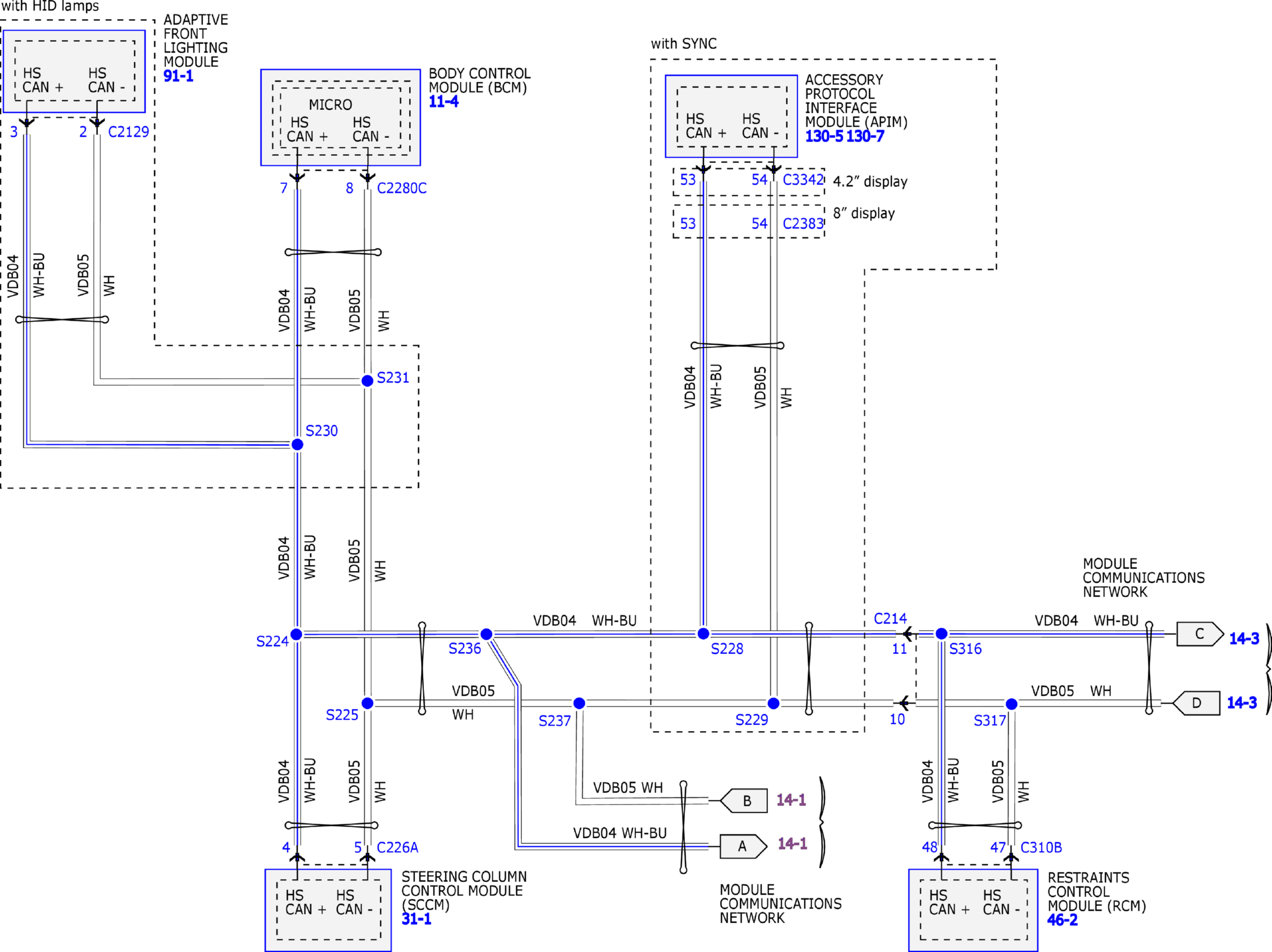

Fig 2: Module Communications Network System Wiring Diagrams (2 of 8)
Courtesy of FORD MOTOR COMPANY

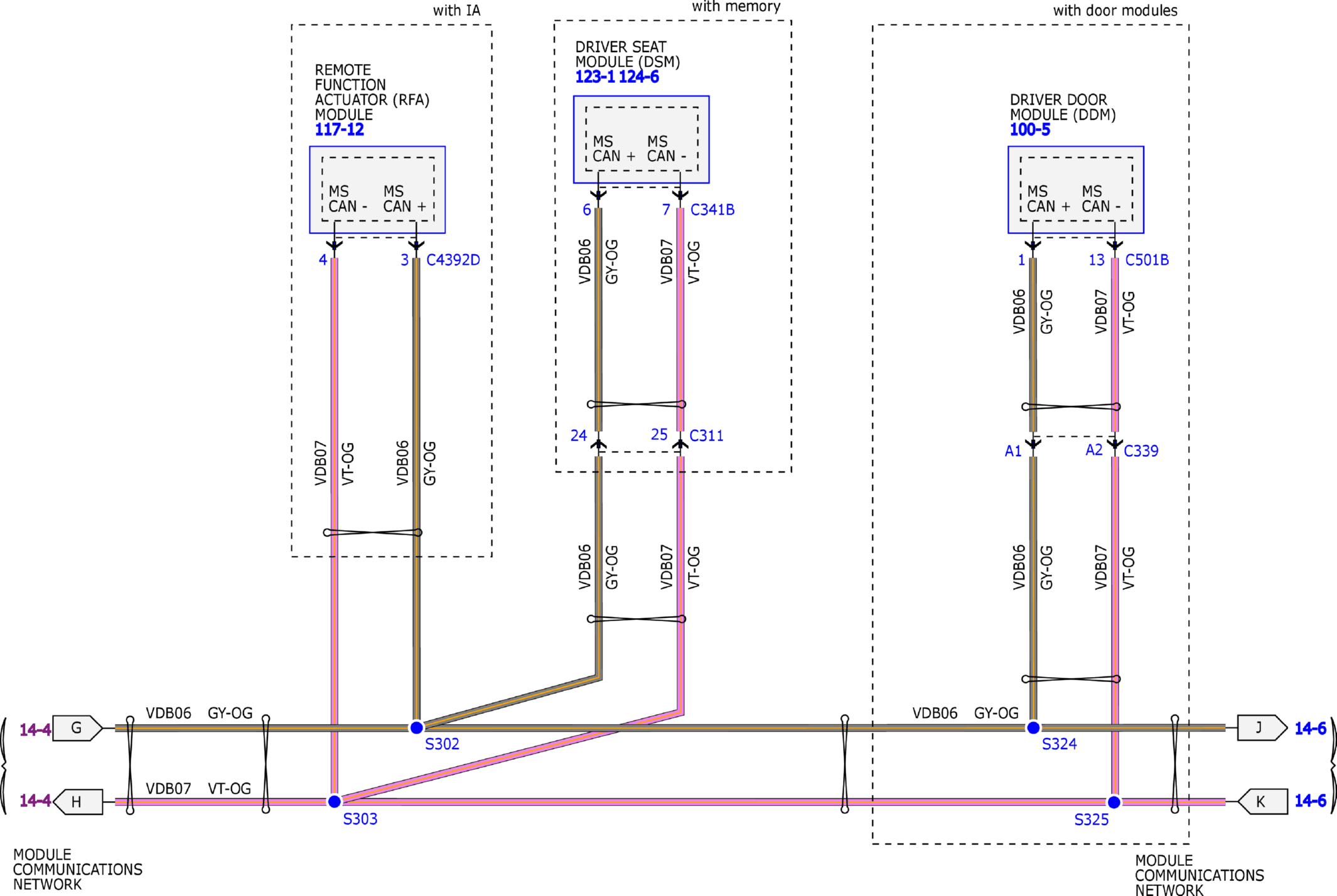

Fig 3: Module Communications Network System Wiring Diagrams (3 of 8)
Courtesy of FORD MOTOR COMPANY

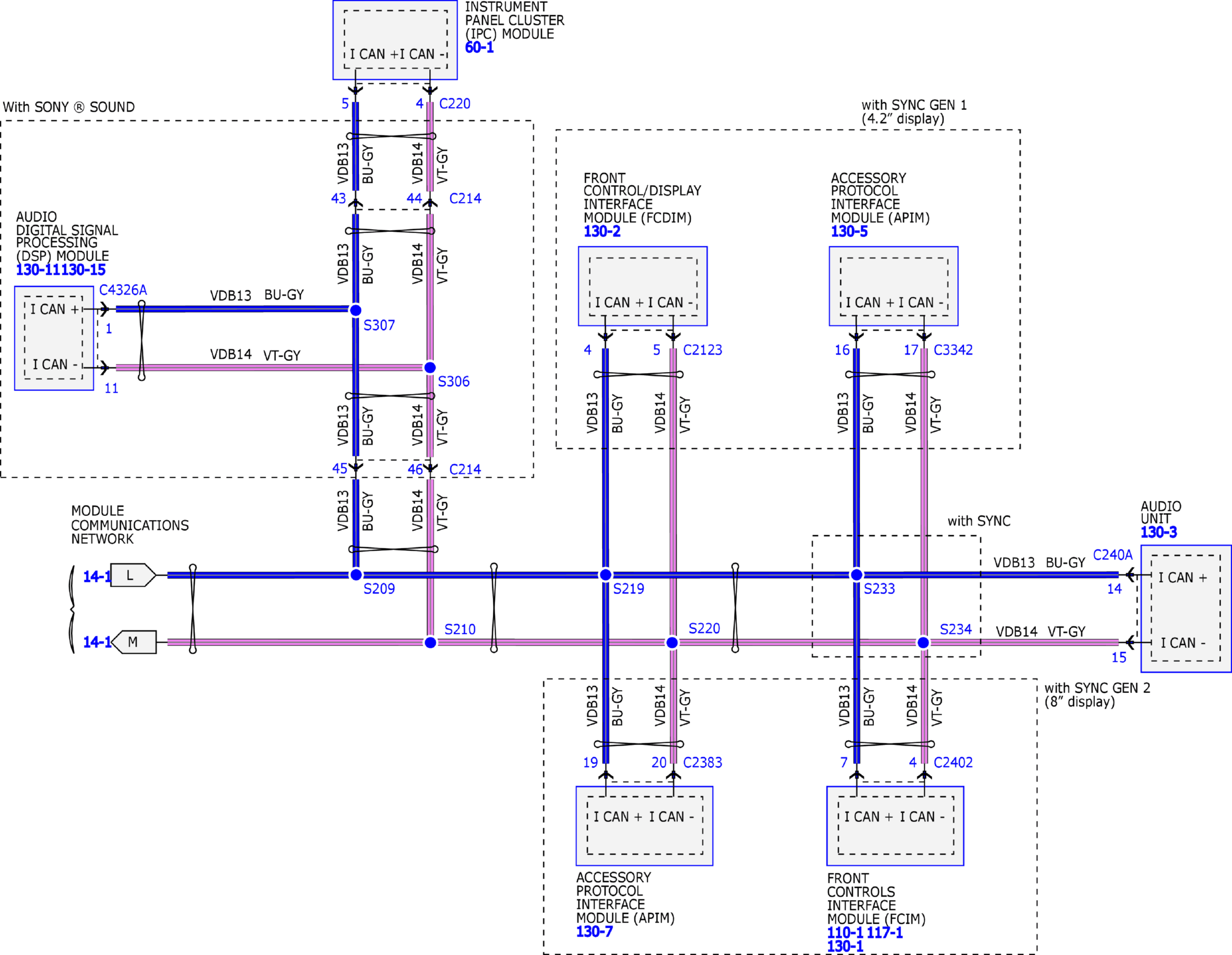

Fig 4: Module Communications Network System Wiring Diagrams (4 of 8)
Courtesy of FORD MOTOR COMPANY

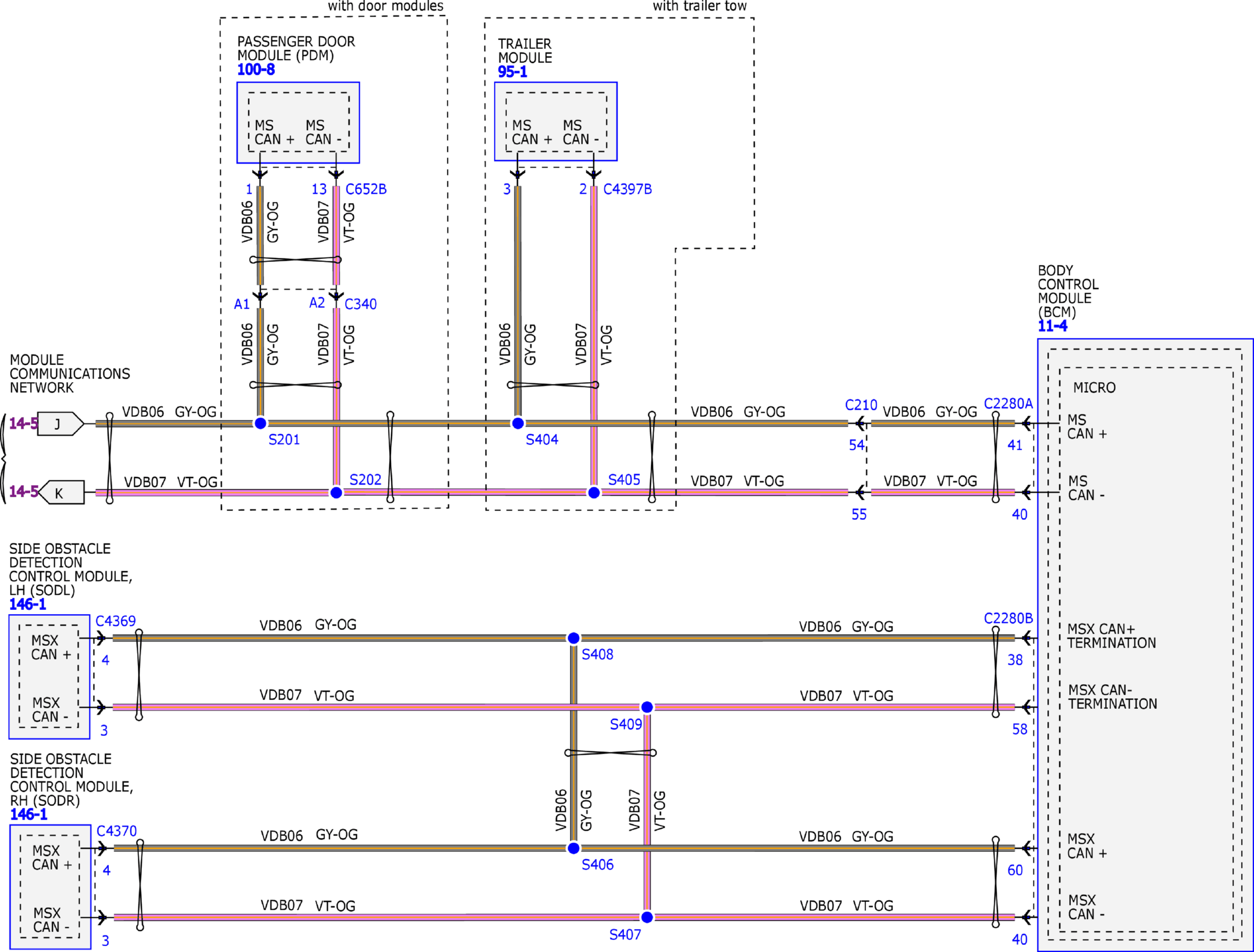

Fig 5: Module Communications Network System Wiring Diagrams (5 of 8)
Courtesy of FORD MOTOR COMPANY

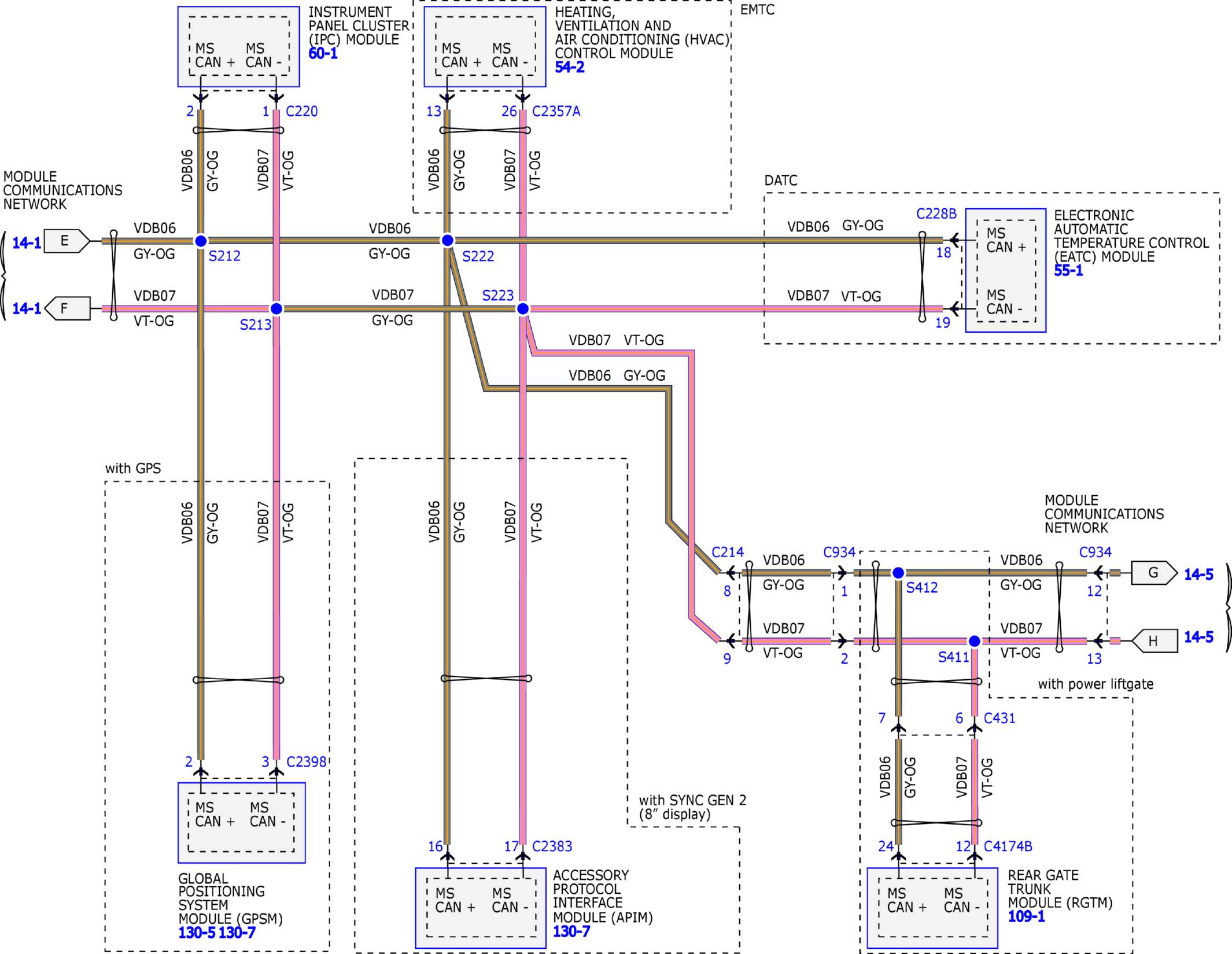

Fig 6: Module Communications Network System Wiring Diagrams (6 of 8)
Courtesy of FORD MOTOR COMPANY

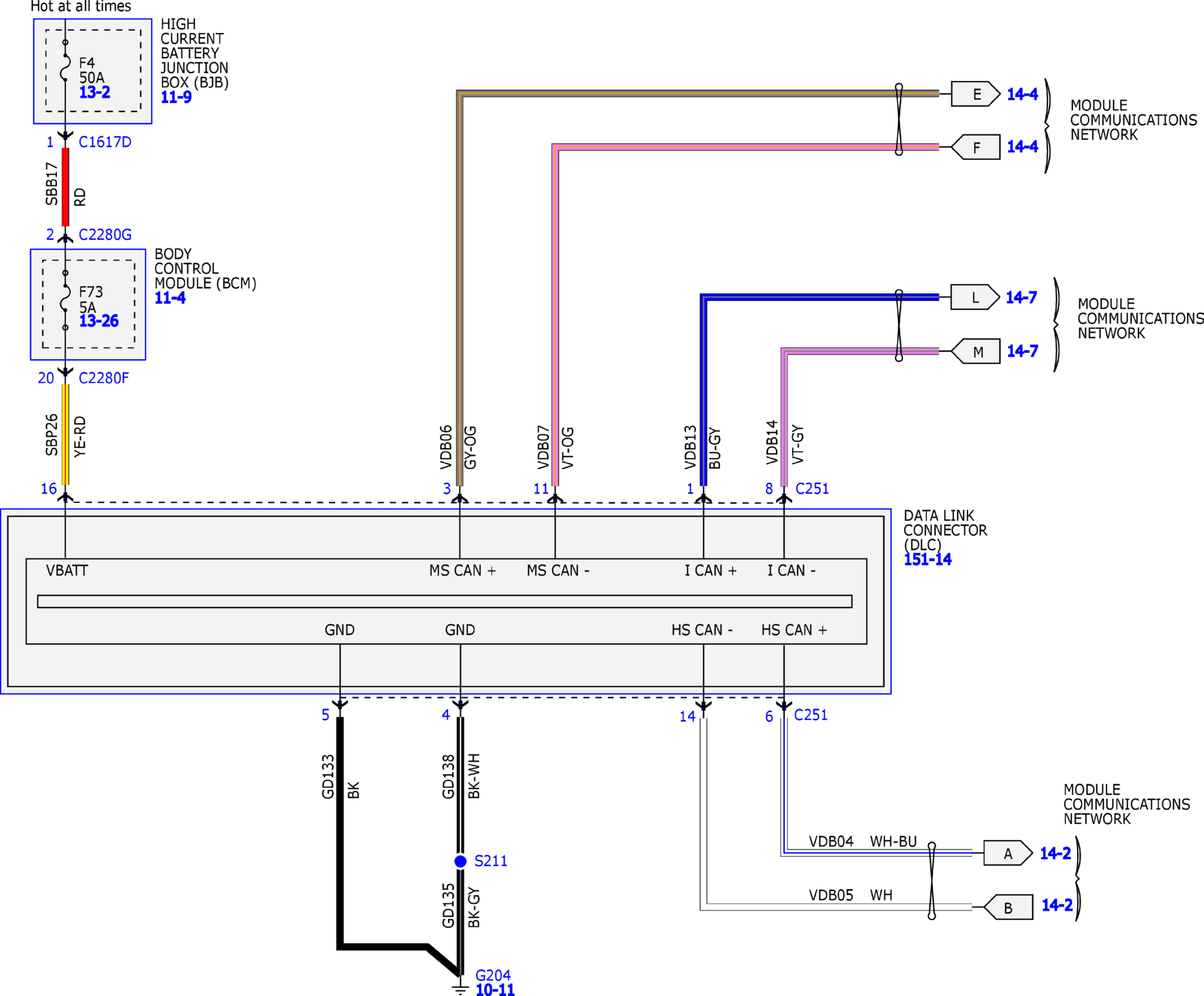

Fig 7: Module Communications Network System Wiring Diagrams (7 of 8)
Courtesy of FORD MOTOR COMPANY

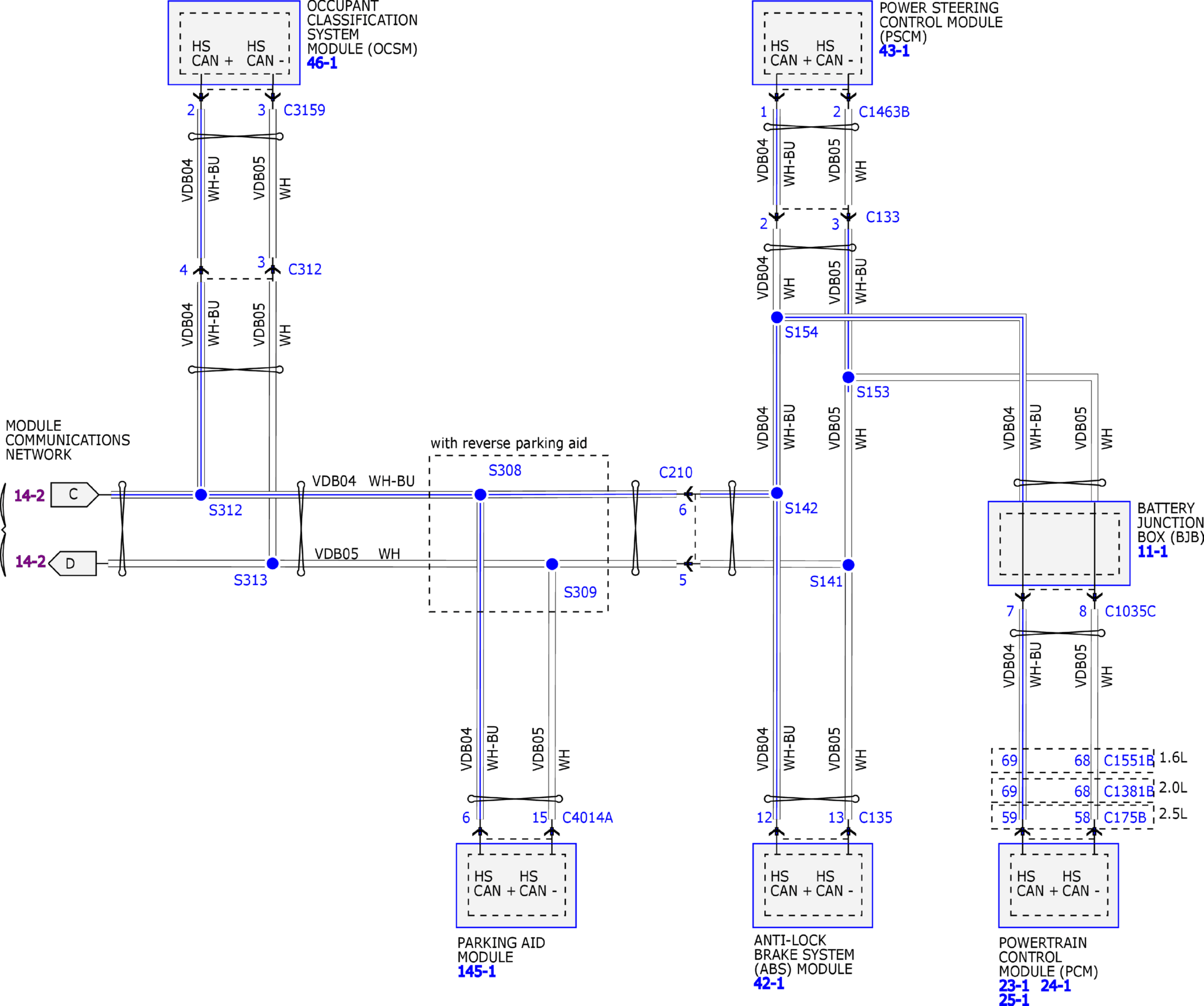

Fig 8: Module Communications Network System Wiring Diagrams (8 of 8)
