Piston Diameter
WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Check
NOTE:
Refer to Specifications - 1.6L
, Specifications - 2.0L
, or Specifications - 2.5L
for the specification.
- 1.

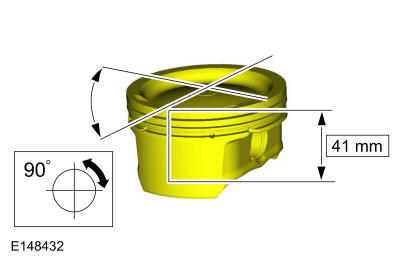

Measure the piston diameter 90 degrees from the piston pin and 41 mm (1.61 in) down from the top of the piston at the point indicated.
