Audio System/Navigation: Notes

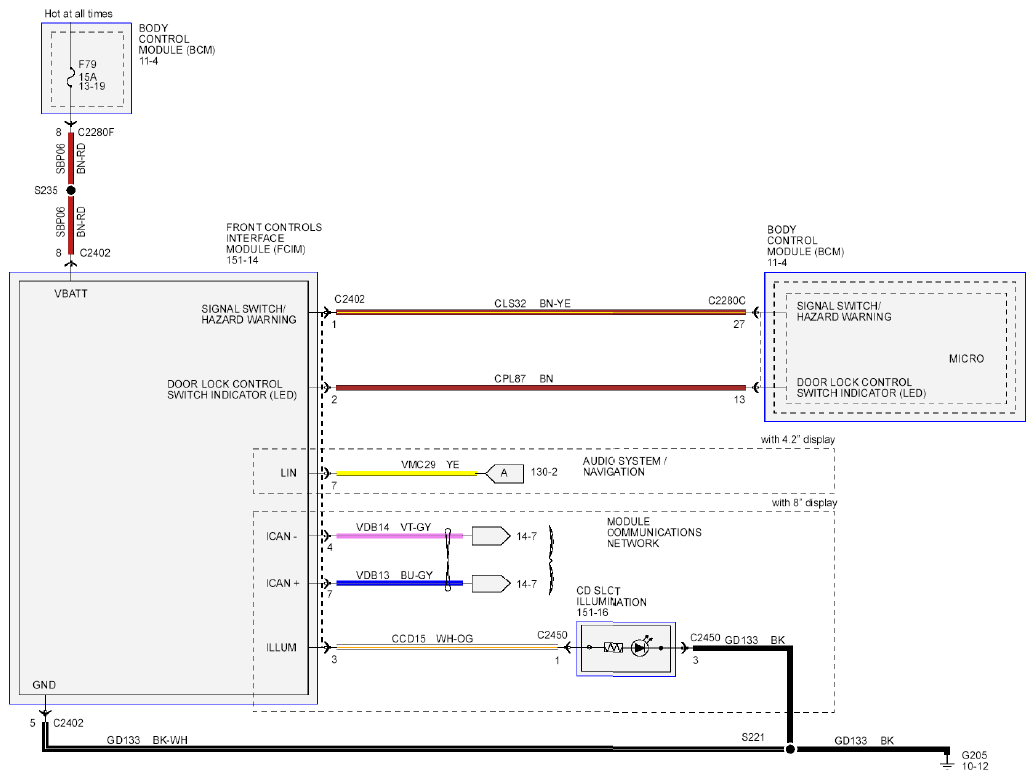

Fig 1: Audio System/Navigation Circuit Diagram (1 Of 4)
G08741789Courtesy of FORD MOTOR CO.

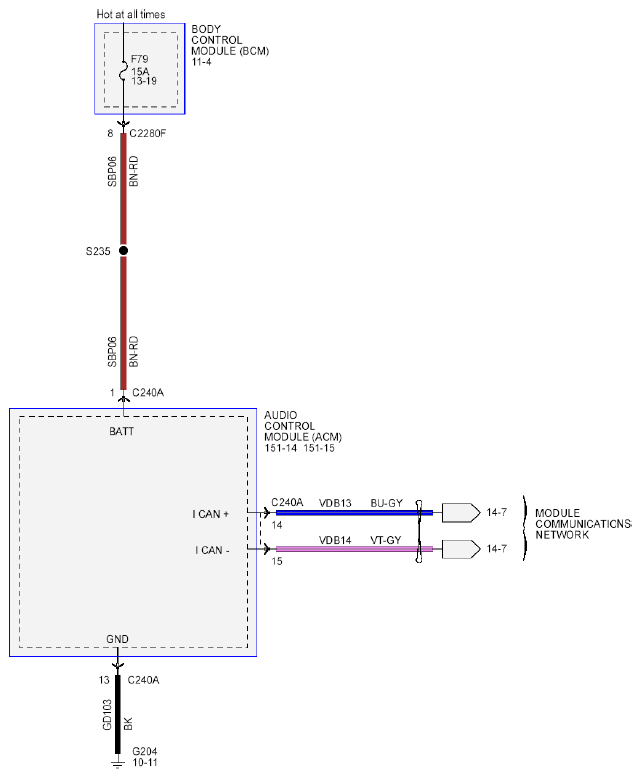

Fig 2: Audio System/Navigation Circuit Diagram (2 Of 4)
G08741791Courtesy of FORD MOTOR CO.

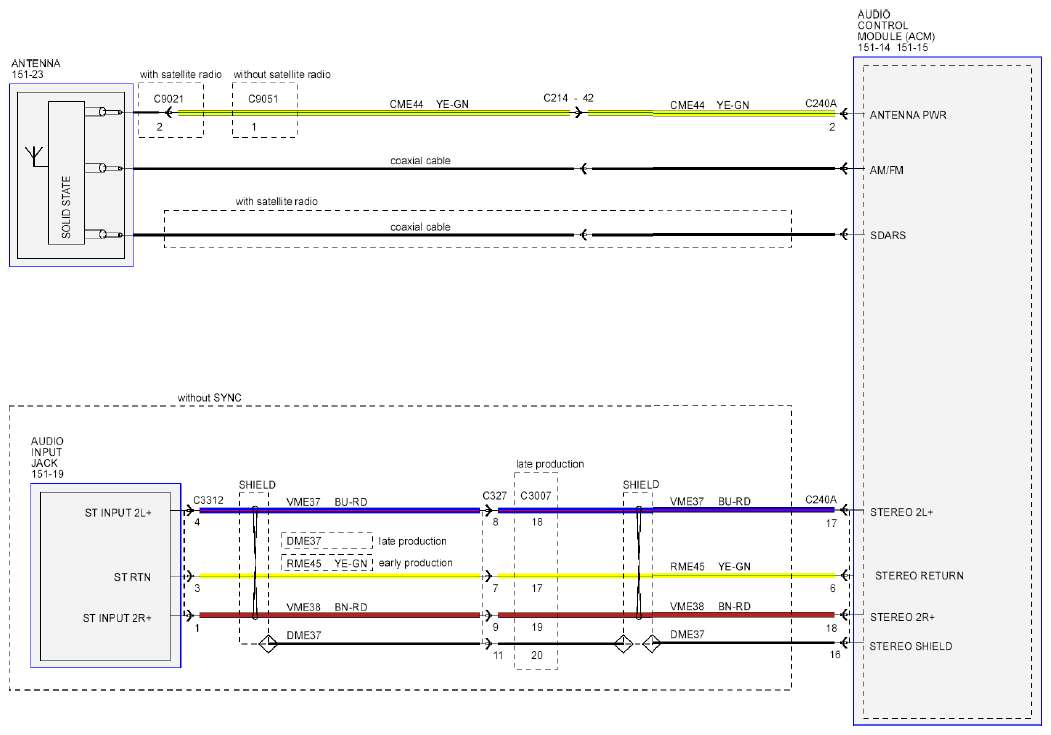

Fig 3: Audio System/Navigation Circuit Diagram (3 Of 4)
G08741792Courtesy of FORD MOTOR CO.

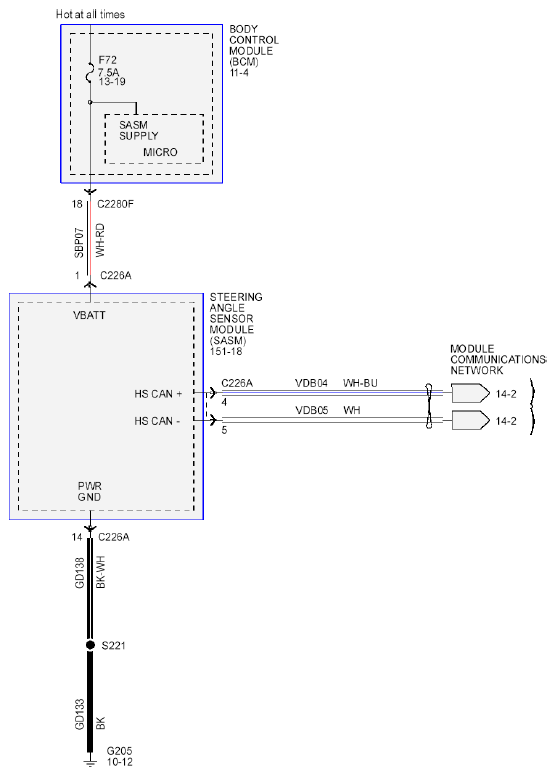

Fig 4: Audio System/Navigation Circuit Diagram (4 Of 4)
G08741805Courtesy of FORD MOTOR CO.
