Seat Backrest: Installation

All seats

1. To install, reverse the removal procedure.
2. If a new seat backrest has been installed, the driver seat hard stops must be calibrated using a scan tool.

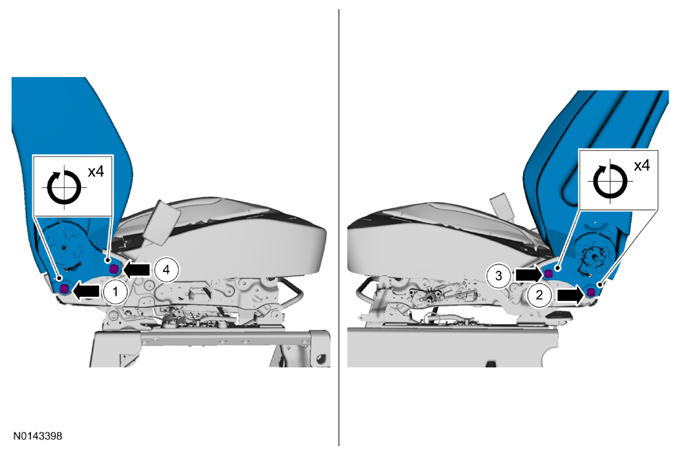

3. Turn the bolts clockwise (CW) through 4 complete turns.

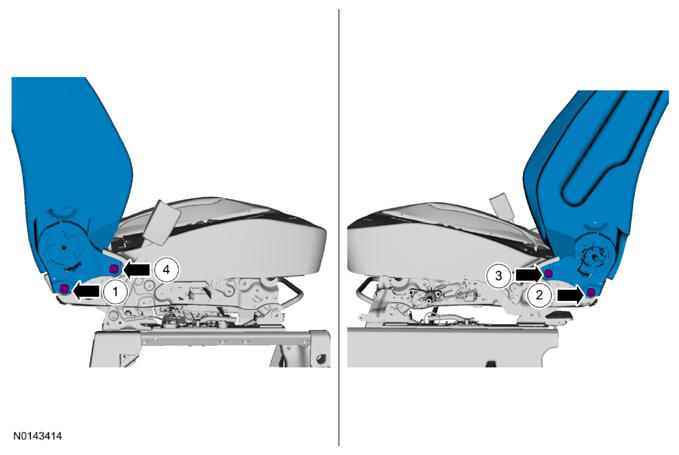

4. • Tighten to 45 Nm (10 lb-ft).
5. NOTE: Before installing the seat up and down adjustment handle to the seat, check that the cap is positioned correctly.
6. Install the front seat. If the passenger seat has been serviced, do not prove out the SRS at this time. Refer to SEAT .

   Passenger seat

7. WARNING: Occupant Classification System (OCS) parts are calibrated as an assembly and must only be replaced in the configuration they are sold. Never separate parts of an assembly. Failure to follow this instruction may result in incorrect operation of the OCS and increases the risk of serious personal injury or death in a crash.
   WARNING: Make sure the front passenger seat repair is complete, the seat and all attached components (head restraint, seat side shield, etc.) are correctly assembled, and the seat is correctly installed to the vehicle before using System Reset to rezero the seat weight. Failure to follow these instructions may result in incorrect operation of the occupant classification system (OCS) and increases the risk of serious personal injury or death in a crash.
   NOTE: To prevent system failure, the following precautions must be taken before carrying out the Occupant Classification System (OCS) reset:

   • Make sure the voltage to the is greater than 8 volts and less than 18 volts.
   • Make sure the is not below 6° C (42.8° F) or above 36° C (96.7° F) when initiating the reset process. If the vehicle has been exposed to extreme cold or hot temperatures, the vehicle must be exposed and kept at a temperature between 6° C (42.8° F) to 36° C (96.7° F) for a minimum of 30 minutes.
   • Make sure nothing is present on the passenger seat before and during the reset process.
   • Prior to carrying out the reset, make sure a minimum of 8 seconds has elapsed after cycling the ignition switch on.

   Using a diagnostic scan tool, carry out the Occupant Classification System (OCS) reset. Cycle the ignition switch after the OCS reset.

8. If the first system reset attempt was successful, proceed to prove out the SRS.
9. If the first system reset attempt was not successful, carry out a thorough visual inspection of the OCS connector and wiring for damage, pressure sensor hose for kinks and or damage, and seat-related wiring harness and body wiring harness terminals and connectors for damage. Repair any concerns found and proceed to the next step.
10. Carry out a second OCS reset. Cycle the ignition switch after the OCS reset. If the second attempt is unsuccessful, install a new OCS service kit. SUPPLEMENTAL RESTRAINT SYSTEM .
11. Prove out the SRS by: turning the ignition from ON to OFF. Wait 10 seconds, then turn the ignition ON and monitor the air bag warning indicator with the air bag installed. The air bag warning indicator illuminates continuously for approximately 6 seconds and then turns off. If an air bag SRS fault is present, the air bag warning indicator will fail to light, remain lit continuously, or flash.
12. The flashing might not occur until approximately 30 seconds after the ignition has been turned from OFF to ON. This is the time required for the RCM to complete the testing of the SRS. If the air bag warning indicator is inoperative and a SRS fault exists, a chime sounds in a pattern of 5 sets of 5 beeps. If this occurs, diagnose and repair the air bag warning indicator and any SRS faults.
13. Clear all continuous Diagnostic Trouble Codes (DTCs) from the RCM and OCSM using a diagnostic scan tool.
