OEM Ground Distribution: Grounds: G103

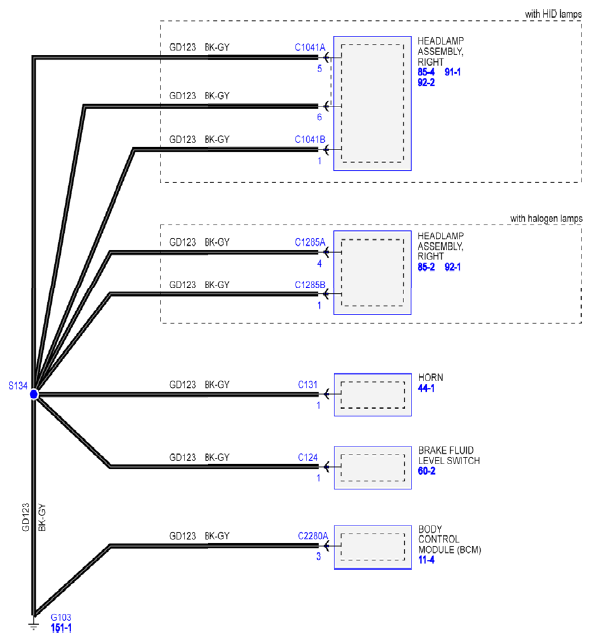

Fig 1: Ground Circuit Diagram - G103
Courtesy of FORD MOTOR CO.
