OEM Ground Distribution: Grounds: G107

Fig 1: Ground Circuit Diagram - G107 (1 Of 2)
G08741535Courtesy of FORD MOTOR CO.

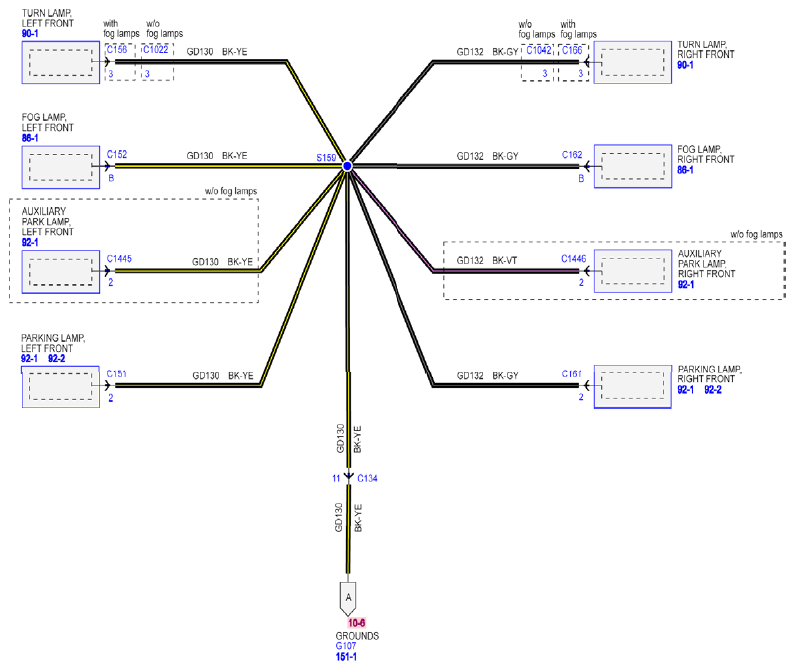

Fig 2: Ground Circuit Diagram - G107 (2 Of 2)
G08741536Courtesy of FORD MOTOR CO.
