OEM Ground Distribution: Grounds: G204

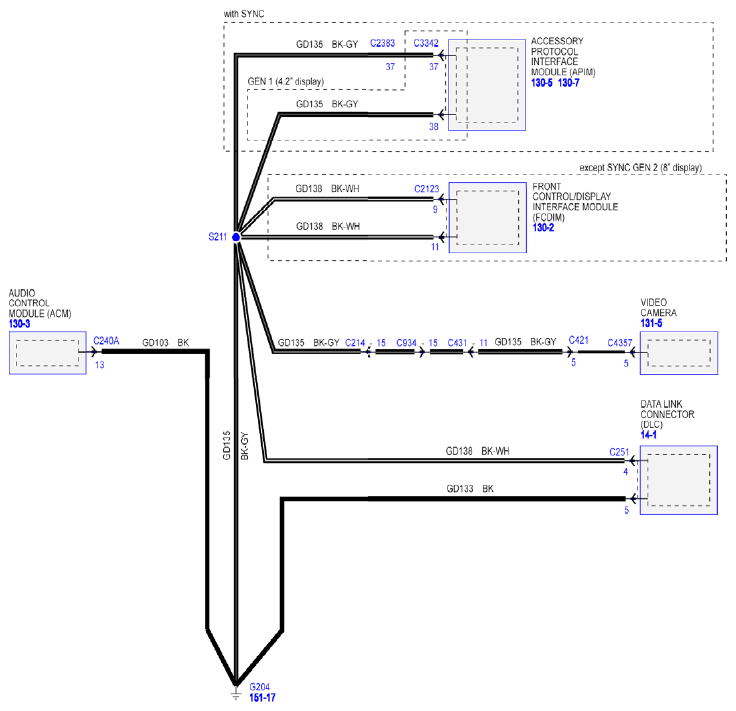

Fig 1: Ground Circuit Diagram - G204
G08741540Courtesy of FORD MOTOR CO.
