OEM Ground Distribution: Grounds: G205

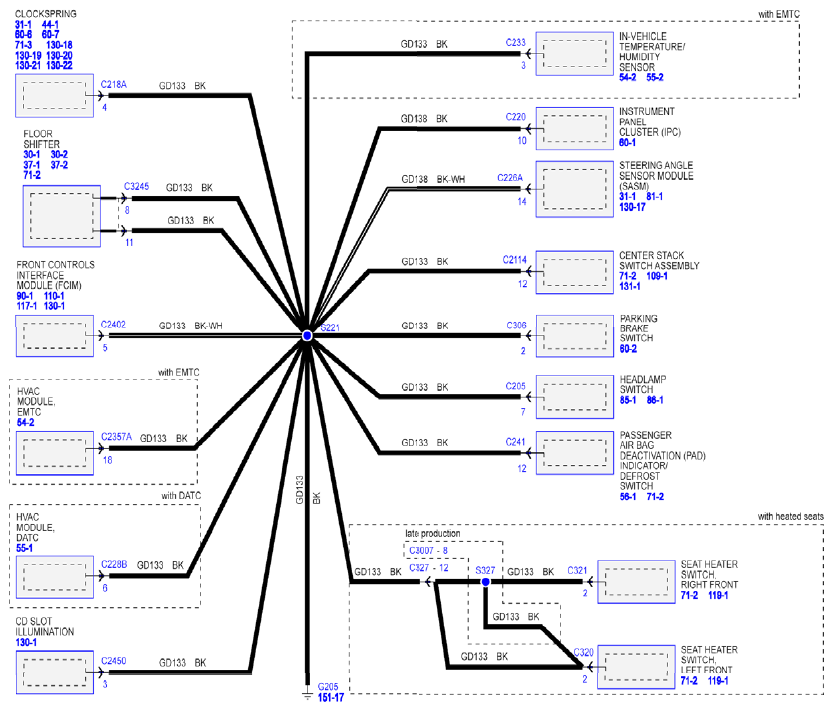

Fig 1: Ground Circuit Diagram - G205
G08741541Courtesy of FORD MOTOR CO.
