OEM Ground Distribution: Grounds: G400

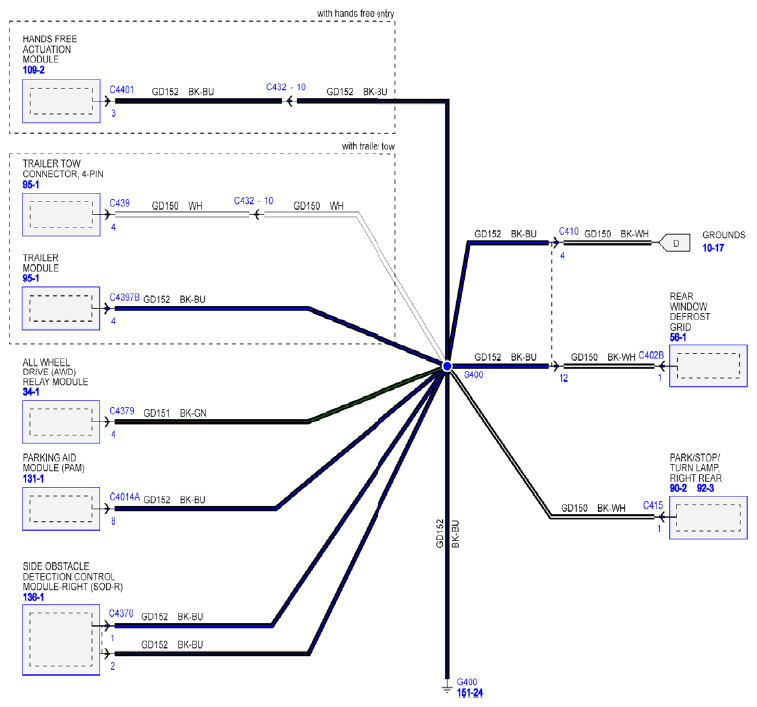

Fig 1: Ground Circuit Diagram - G400 (1 Of 2)
G08741545Courtesy of FORD MOTOR CO.

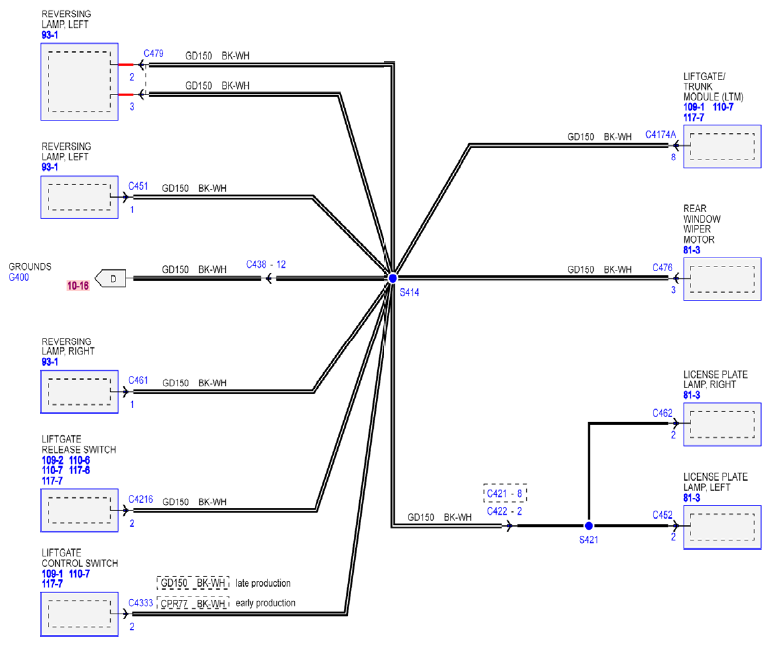

Fig 2: Ground Circuit Diagram - G400 (2 Of 2)
G08741546Courtesy of FORD MOTOR CO.
