OEM Ground Distribution: Grounds: G401

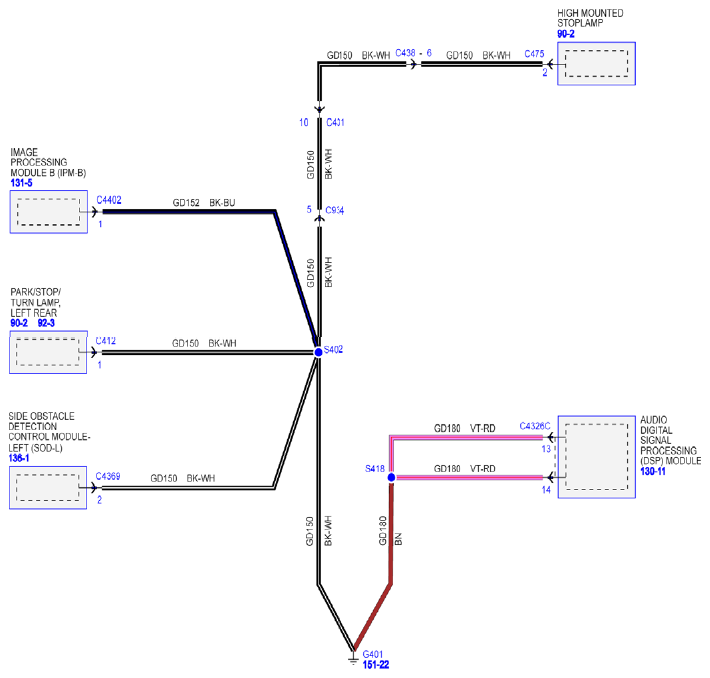

Fig 1: Ground Circuit Diagram - G401
G08741547Courtesy of FORD MOTOR CO.
