Introduction
›
Window control switch - Without door modules
›
Schematic
Window control switch - Without door modules: Schematic

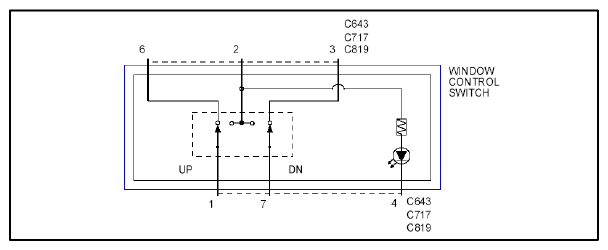

Fig 1: Window Control Switch Schematic - Without Door Modules
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
