Bearing Inspection

  1. Inspect bearings for the following defects:
    1. Cratering - fatigue failure
    2. Spot glazing - incorrect seating
    3. Scratching - dirty engine oil
    4. Base exposed - poor lubrication
    5. Both edges worn - journal damaged
    6. One edge worn - journal tapered or bearing not seated

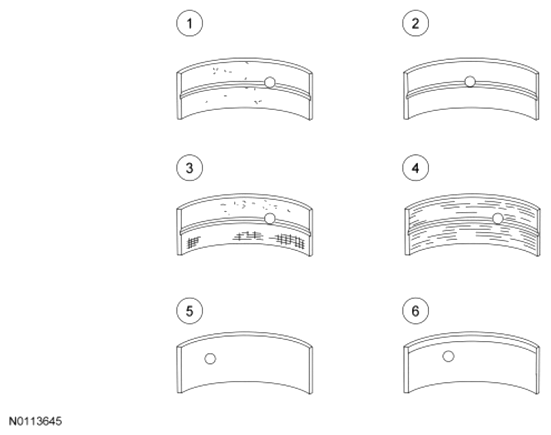

      Fig 1: Identifying Bearings Defects
      G07480753Courtesy of FORD MOTOR CO.
