Side Obstacle Detection Control Module: Removal
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
SODL
shown, SODR
similar.
- Refer to: JACKING AND LIFTING - OVERVIEW .
- Refer to: REAR LAMP ASSEMBLY .
- Refer to: REAR QUARTER PANEL MOULDING .
- Torque:
13 lb.in (1.5 Nm)
- Torque:
28 lb.in (3.2 Nm)

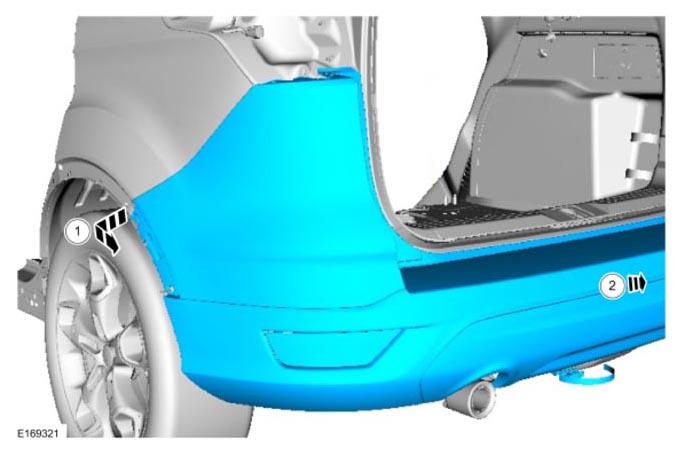

- Gently flex the rear bumper cover to access the SODL
or the SODR
.
- If required.
Torque: 93 lb.in (10.5 Nm)
