Audio Input Jack: Removal
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
-
NOTE:

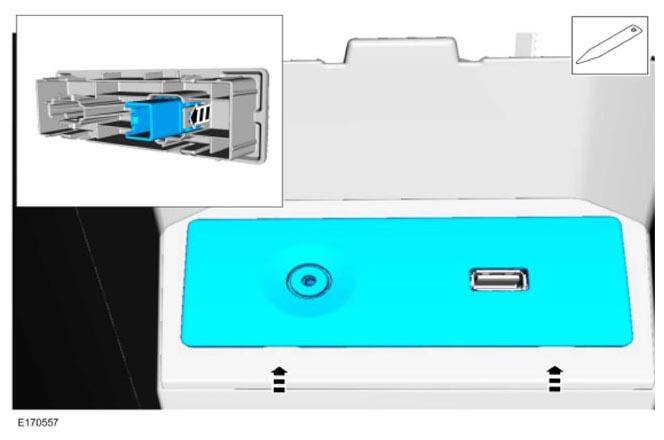

Audio input jack with USB
port shown, audio input jack without USB
port similar.
Remove the audio input jack bezel. Release the audio input jack tabs and remove the audio input jack.
