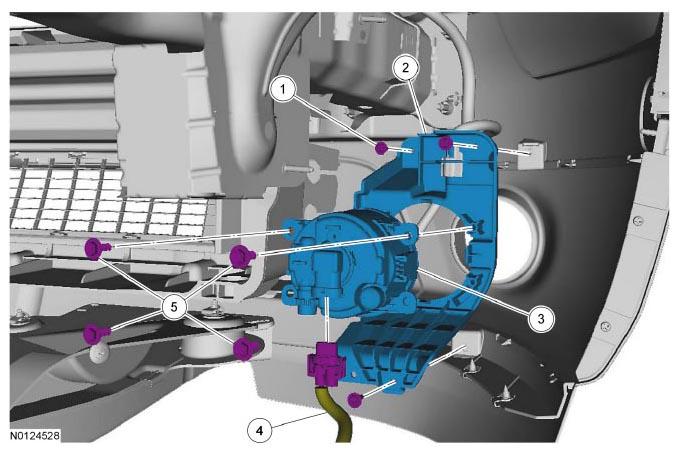

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W706805 | Fog lamp assembly bracket screw (3 required) | - | - | - |
| 2 | 15266 | Fog lamp assembly bracket (Right Hand (RH)/Left Hand (LH)) | - | - | - |
| 3 | 15200 | Fog lamp assembly | - | - | - |
| 4 | 15A211 | Fog lamp assembly wiring harness | - | - | - |
| 5 | N807011 | Fog lamp assembly screws (4 required) | - | - | - |
