Front Lighting Control Module (FLM): Removal

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure in this service information, refer to SAFETY WARNINGS . Failure to follow this instruction may result in serious personal injury.

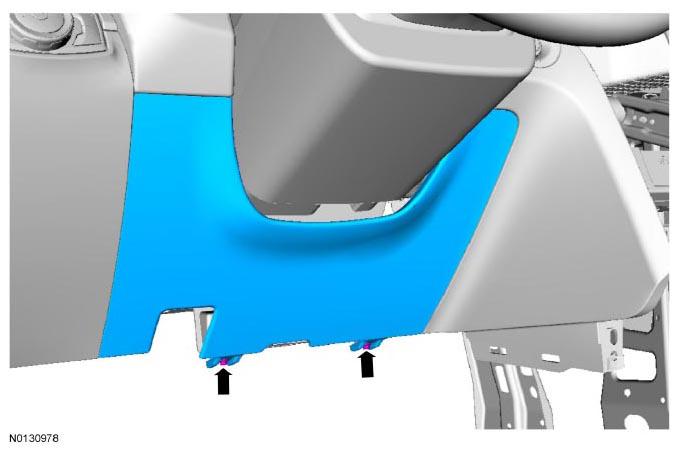

  1. Remove the 2 screws and the steering column cover trim panel.
    G07428901
  2. Remove the lower Left Hand (LH) instrument panel trim panel.
  3. Disconnect and remove the Front Lighting Control Module (FLM) from the lower Left Hand (LH) instrument panel trim panel.
