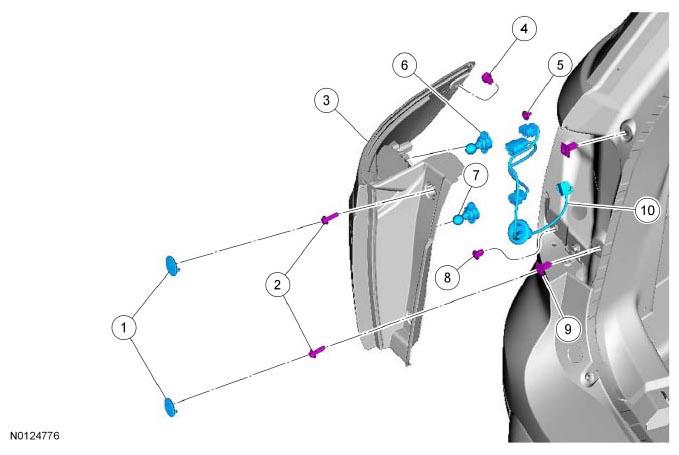

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W715731 | Rear lamp assembly bolt covers (2 required) | - | - | - |
| 2 | W712801 | Rear lamp assembly bolt (2 required) | - | - | - |
| 3 | 13404/13405 | Rear lamp assembly (Right Hand (RH)/Left Hand (LH)) | - | - | - |
| 4 | W713579 | Rear lamp assembly clip | - | - | - |
| 5 | 13A457 | Rear lamp assembly upper grommet | - | - | - |
| 6 | 13466 | Rear lamp assembly upper bulb | - | - | - |
| 7 | 13466 | Rear lamp assembly lower bulb | - | - | - |
| 8 | 13A457 | Rear lamp assembly lower grommet | - | - | - |
| 9 | W711031 | Rear lamp assembly nuts (2 required) | - | - | - |
| 10 | 13410 | Rear lamp socket assembly | - | - | - |
