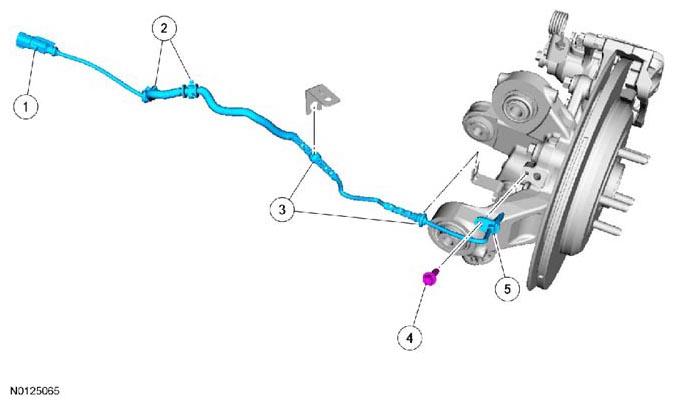

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Rear wheel speed sensor electrical connector (part of 2C190) | - | - | - |
| 2 | - | Pin-type retainers (2 required) (part of 2C190) | - | - | - |
| 3 | - | Grommets (2 required) (part of 2C190) | - | - | - |
| 4 | W505255 | Rear wheel speed sensor bolt | 15 Nm (133 lb-in) | - | - |
| 5 | 2C190 | Rear wheel speed sensor | - | - | - |
