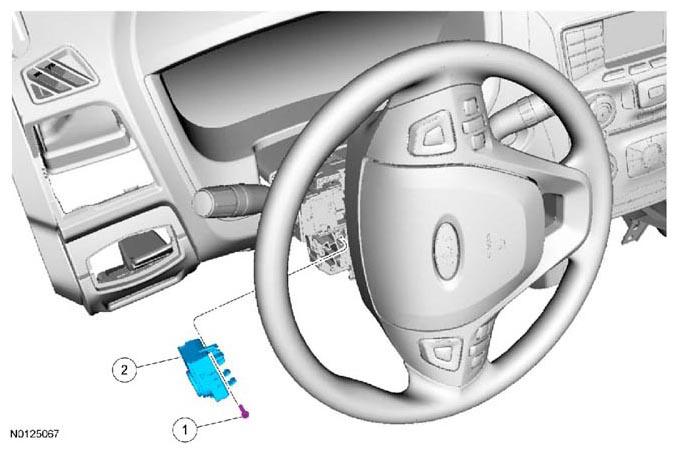

Exploded View

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Item	Service Part Number	Description	Tool Number	Material Name	Notes
1	-	Pedal adjust switch screw	-	-	3 Nm (27 lb-in)
2	9G604	Pedal adjust switch	-	-	-
