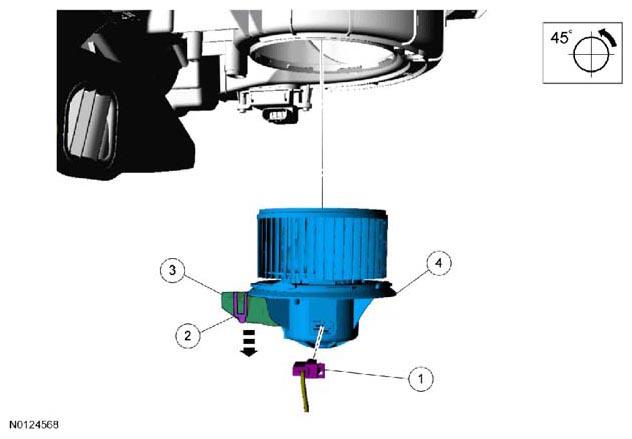

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |
| 1 |
- |
Blower motor electrical connector (part of 14401) |
- |
- |
- |
| 2 |
- |
Blower motor vent tube retainer tab (2 required) (part of 19805) |
- |
- |
- |
| 3 |
- |
Blower motor vent tube (part of 19805) |
- |
- |
- |
| 4 |
19805 |
Blower motor |
- |
- |
- |
