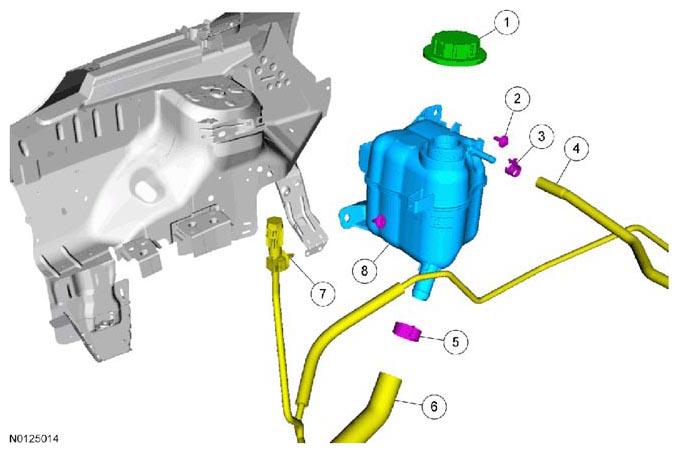

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 8100 | Pressure relief cap | - | - | - |
| 2 | W706681 | Degas bottle bolt (2 required) | 9 Nm (80 lb-in) | - | - |
| 3 | W527383 | Thermostat housing-to-degas bottle hose clamp | - | - | - |
| 4 | 8276 | Thermostat housing-to-degas bottle hose | - | - | - |
| 5 | W527366 | Degas bottle-to-radiator hose clamp - 2.0L GTDI | - | - | - |
| 5 | W527366 | Degas bottle-to-coolant inlet pipe hose clamp - 3.5L Twin Independent Variable Cam Timing (Ti-VCT), 3.7L Twin Independent Variable Cam Timing (Ti-VCT) | - | - | - |
| 6 | 8C289 | Lower radiator hose - 2.0L GTDI | - | - | - |
| 6 | 8C289 | Degas bottle-to-coolant inlet pipe hose - 3.5L Twin Independent Variable Cam Timing (Ti-VCT), 3.7L Twin Independent Variable Cam Timing (Ti-VCT) | - | - | - |
| 7 | - | A/C line retainer (Part of 19A834) | - | - | - |
| 8 | 8A080 | Degas bottle | - | - | - |
