Section 503 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

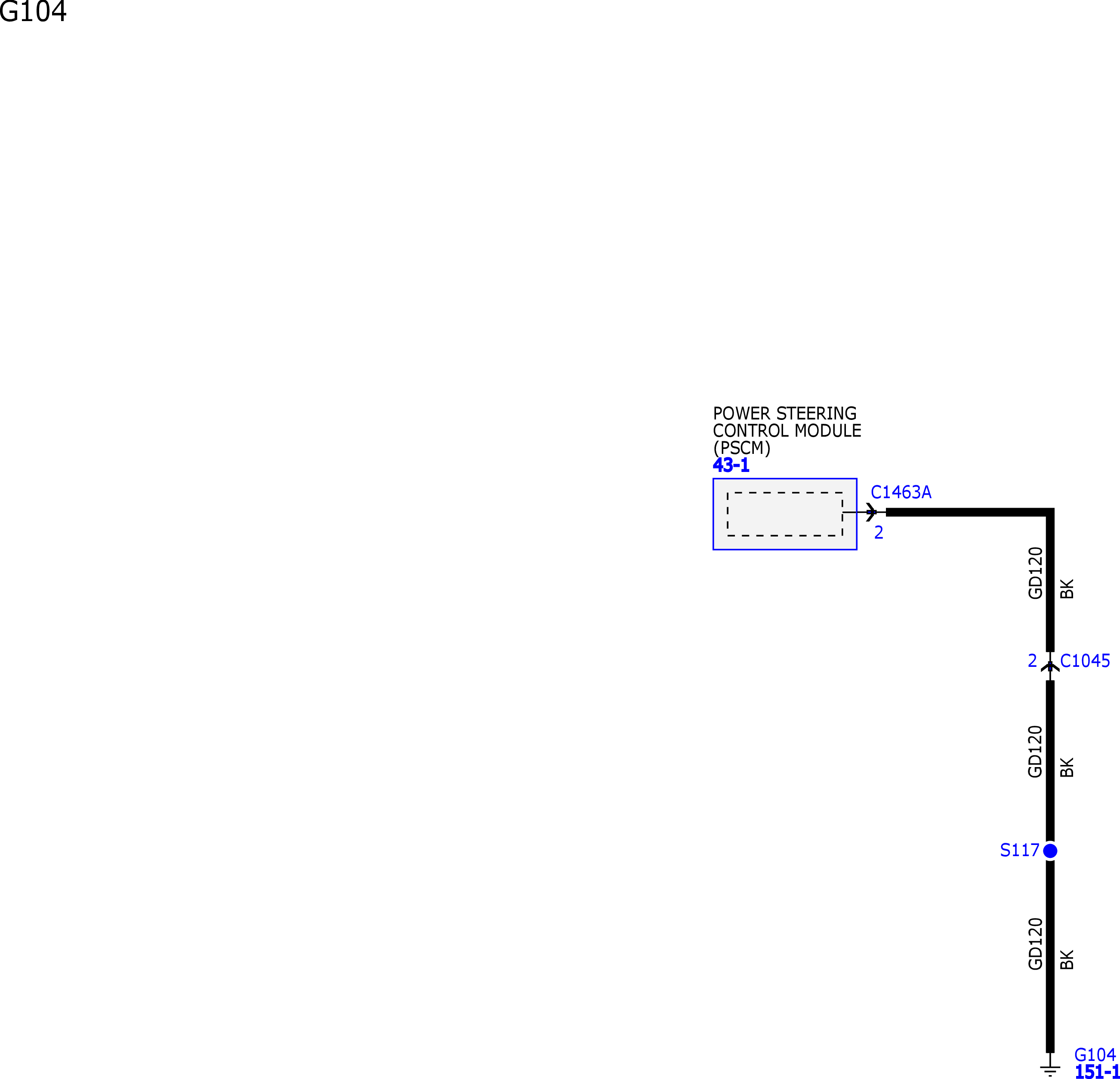

GFDW4413Courtesy of FORD MOTOR COMPANY

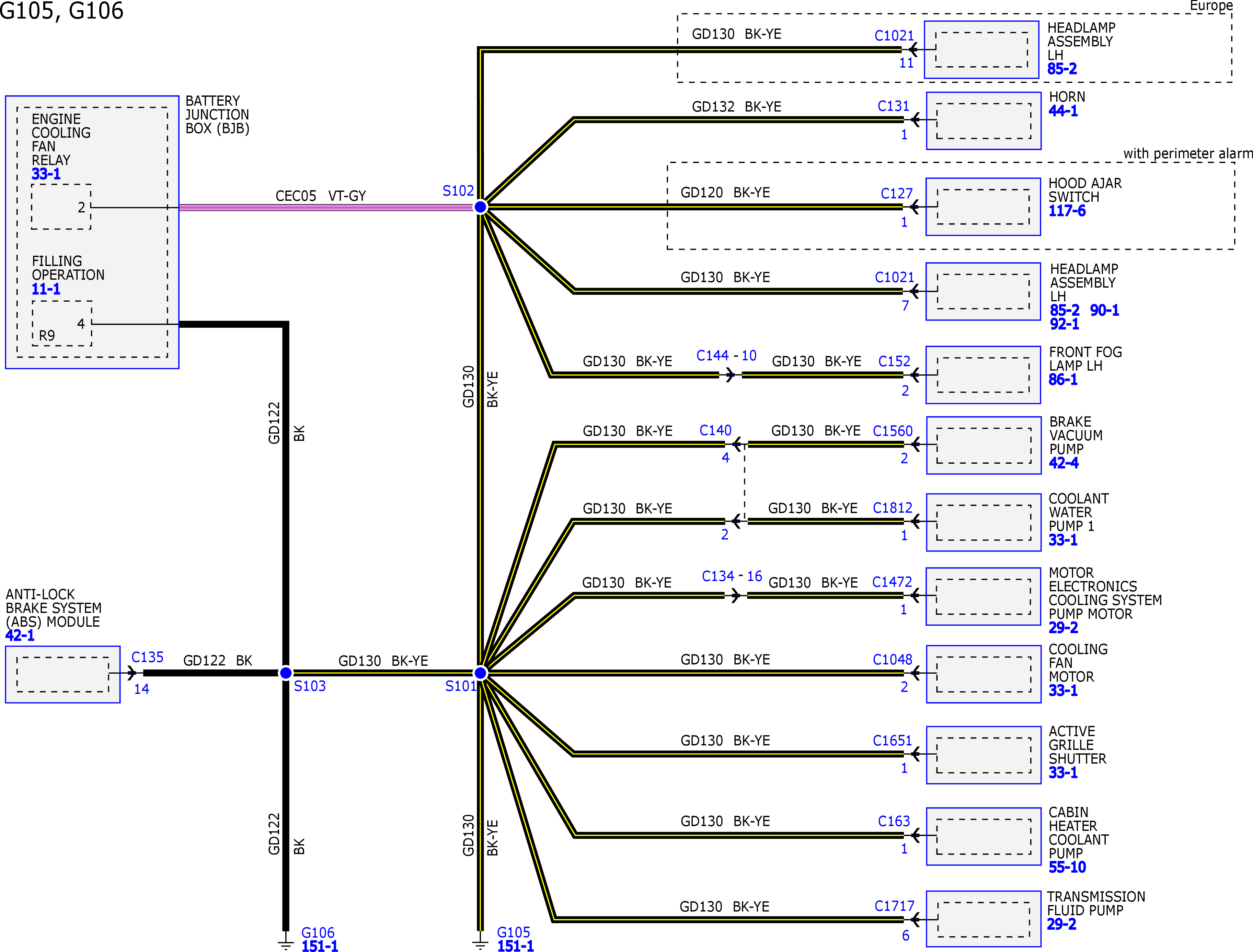

GFDW4414Courtesy of FORD MOTOR COMPANY

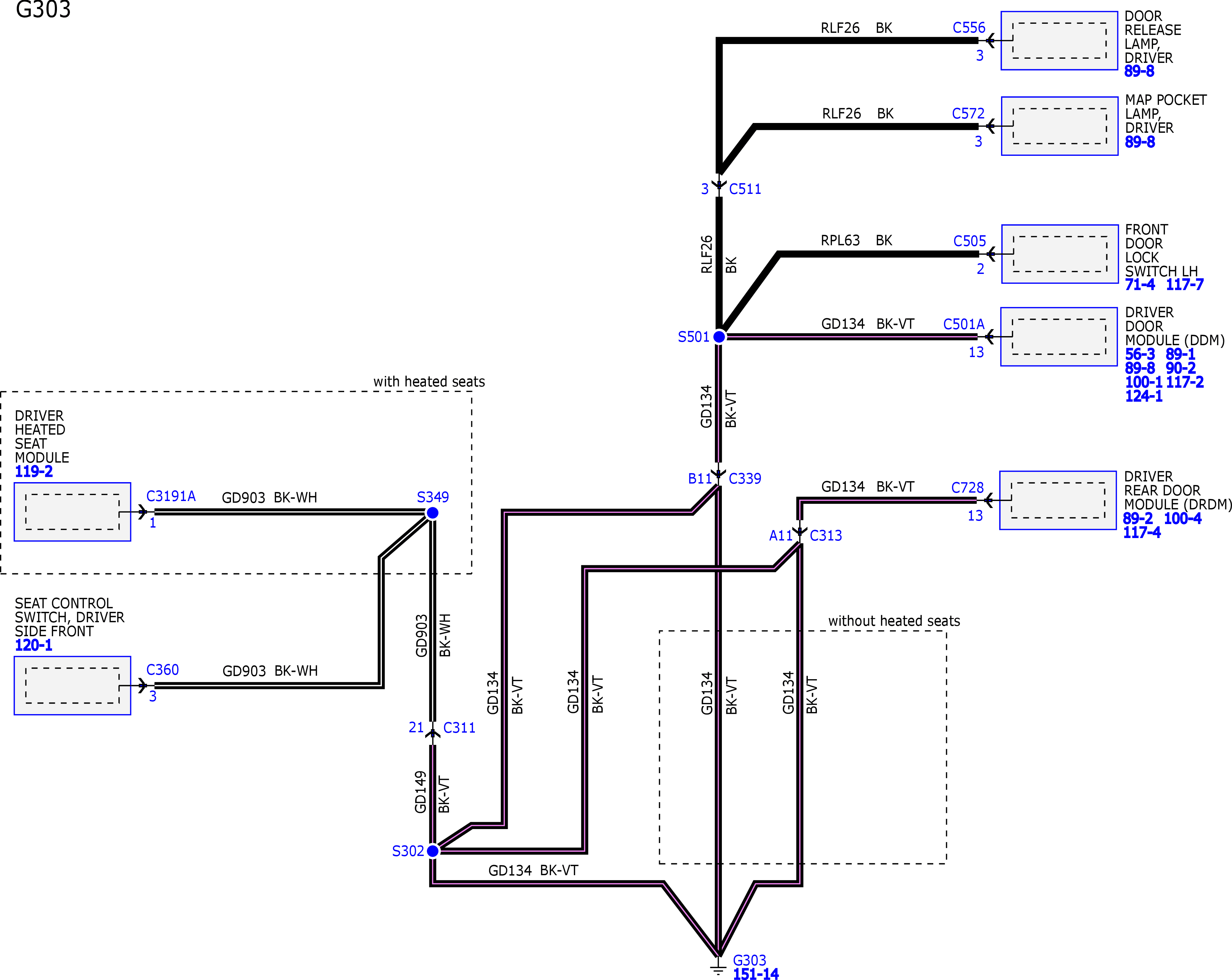

GFDW4415Courtesy of FORD MOTOR COMPANY

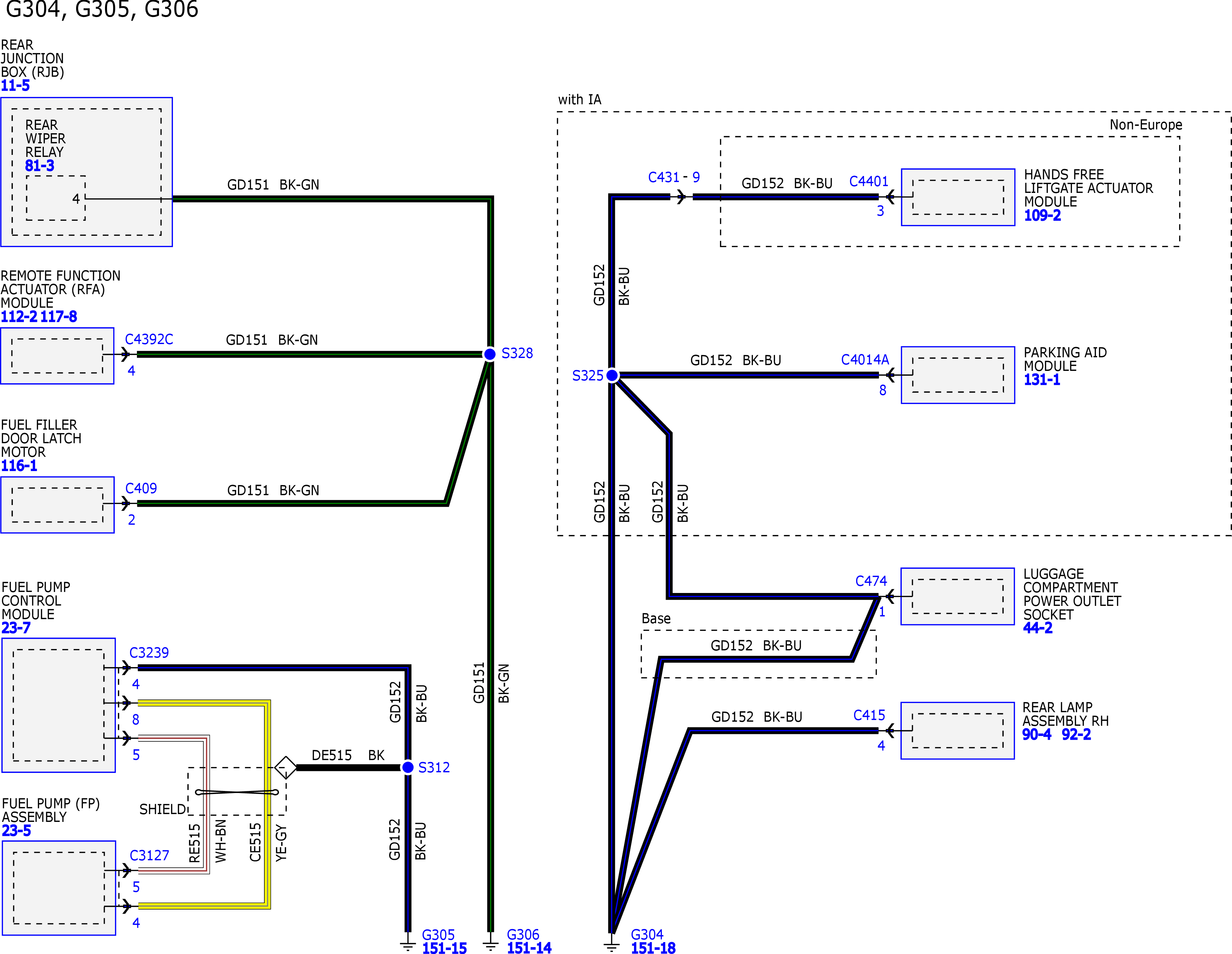

GFDW4416Courtesy of FORD MOTOR COMPANY

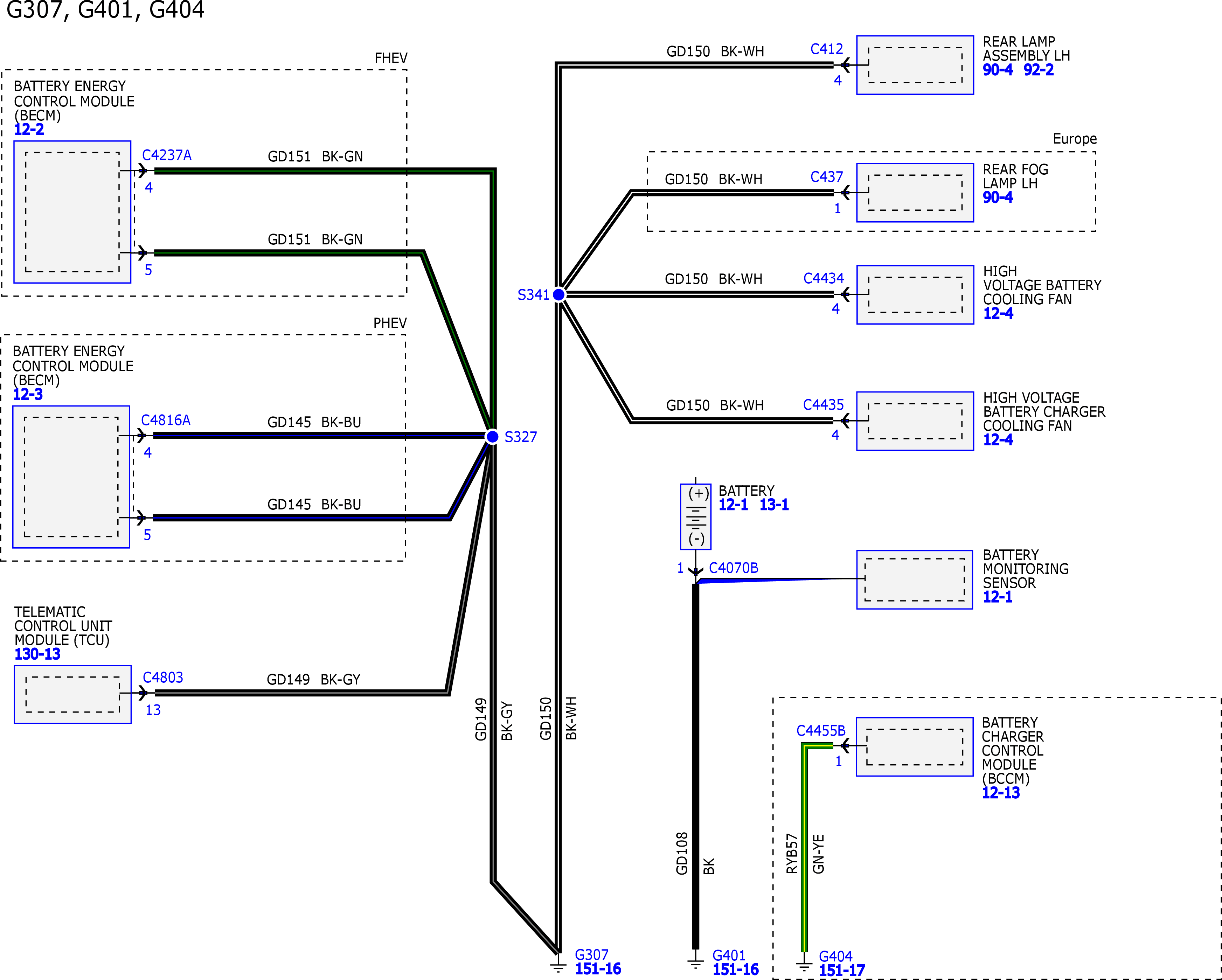

GFDW4417Courtesy of FORD MOTOR COMPANY

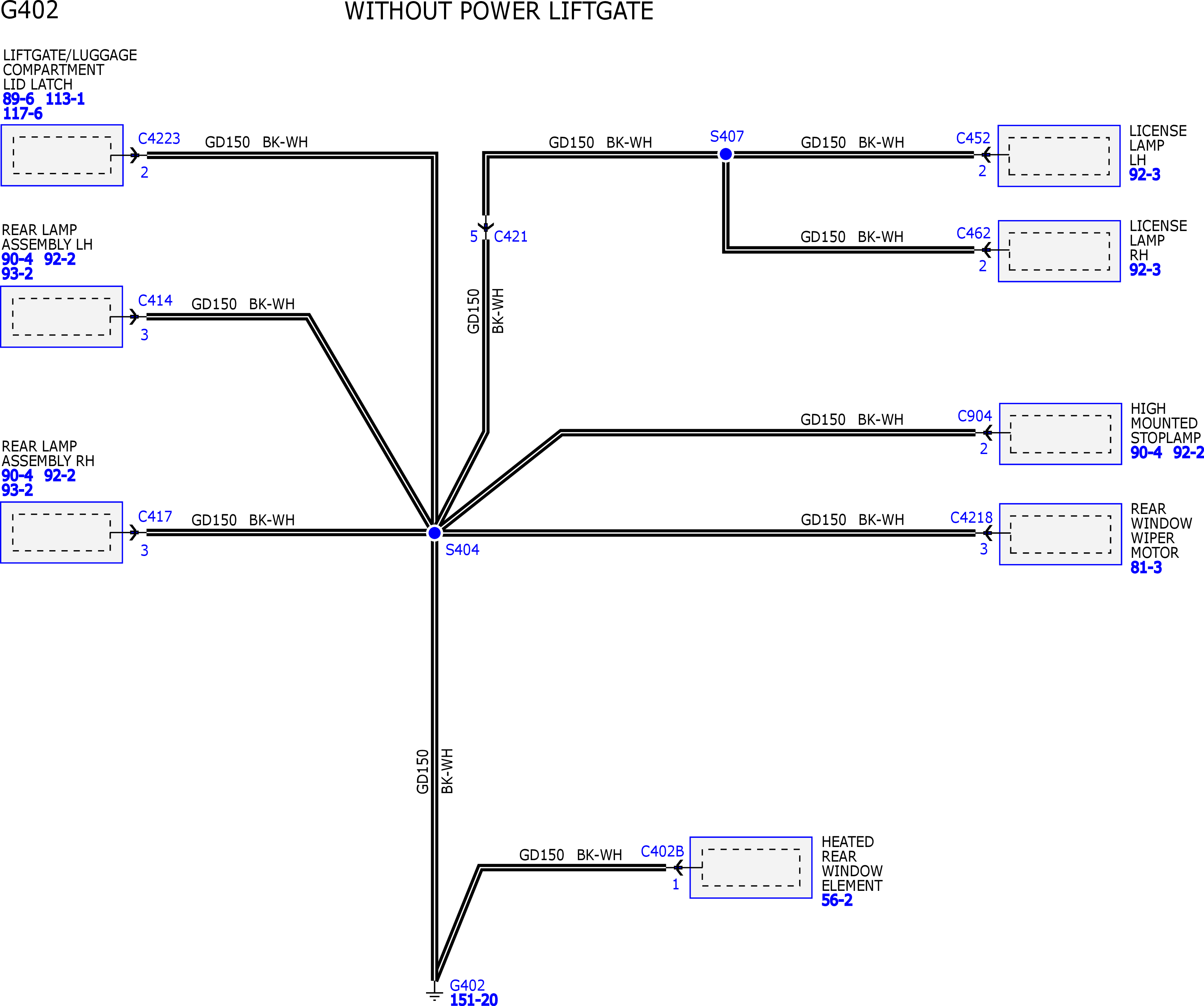

GFDW4418Courtesy of FORD MOTOR COMPANY

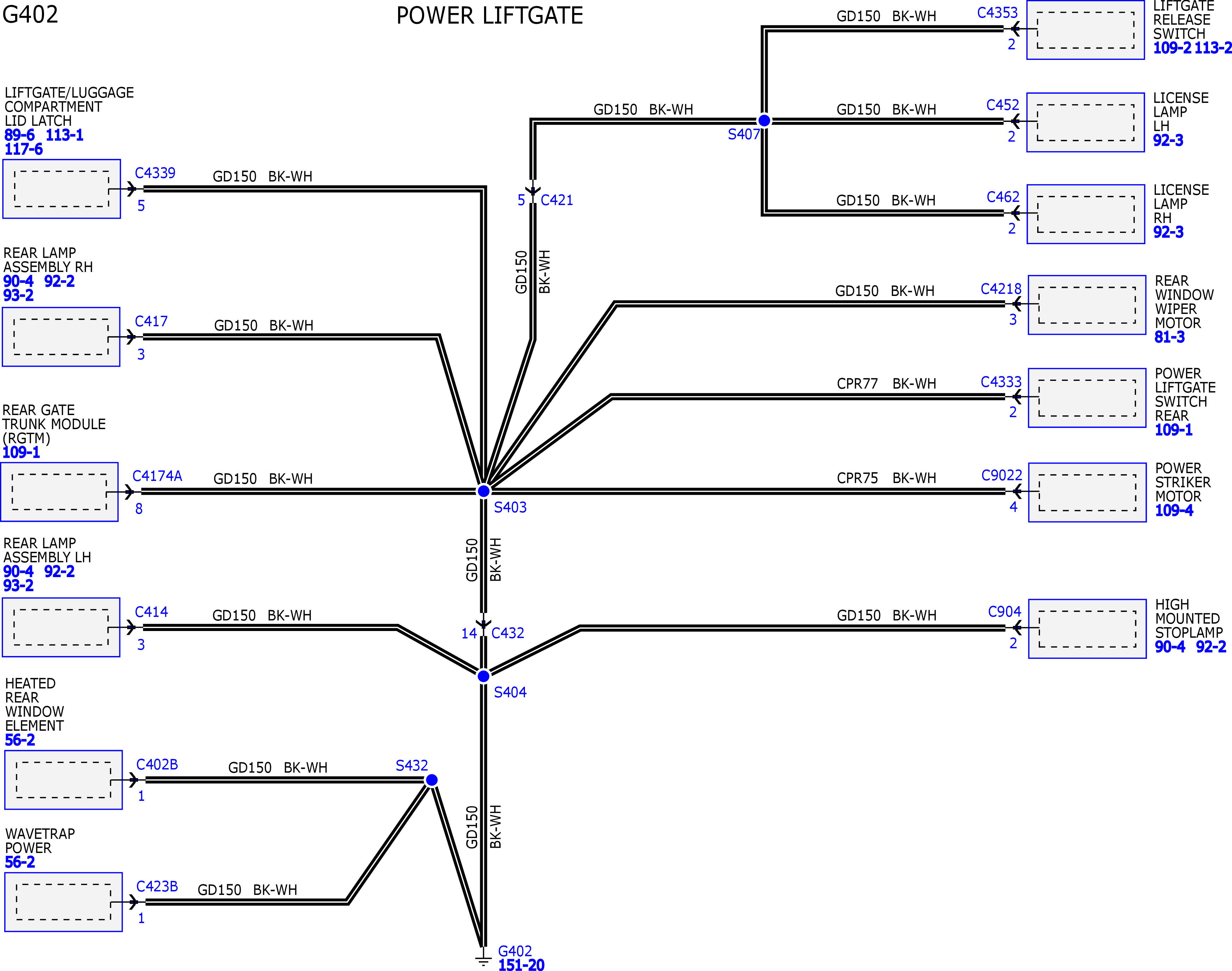

GFDW4419Courtesy of FORD MOTOR COMPANY

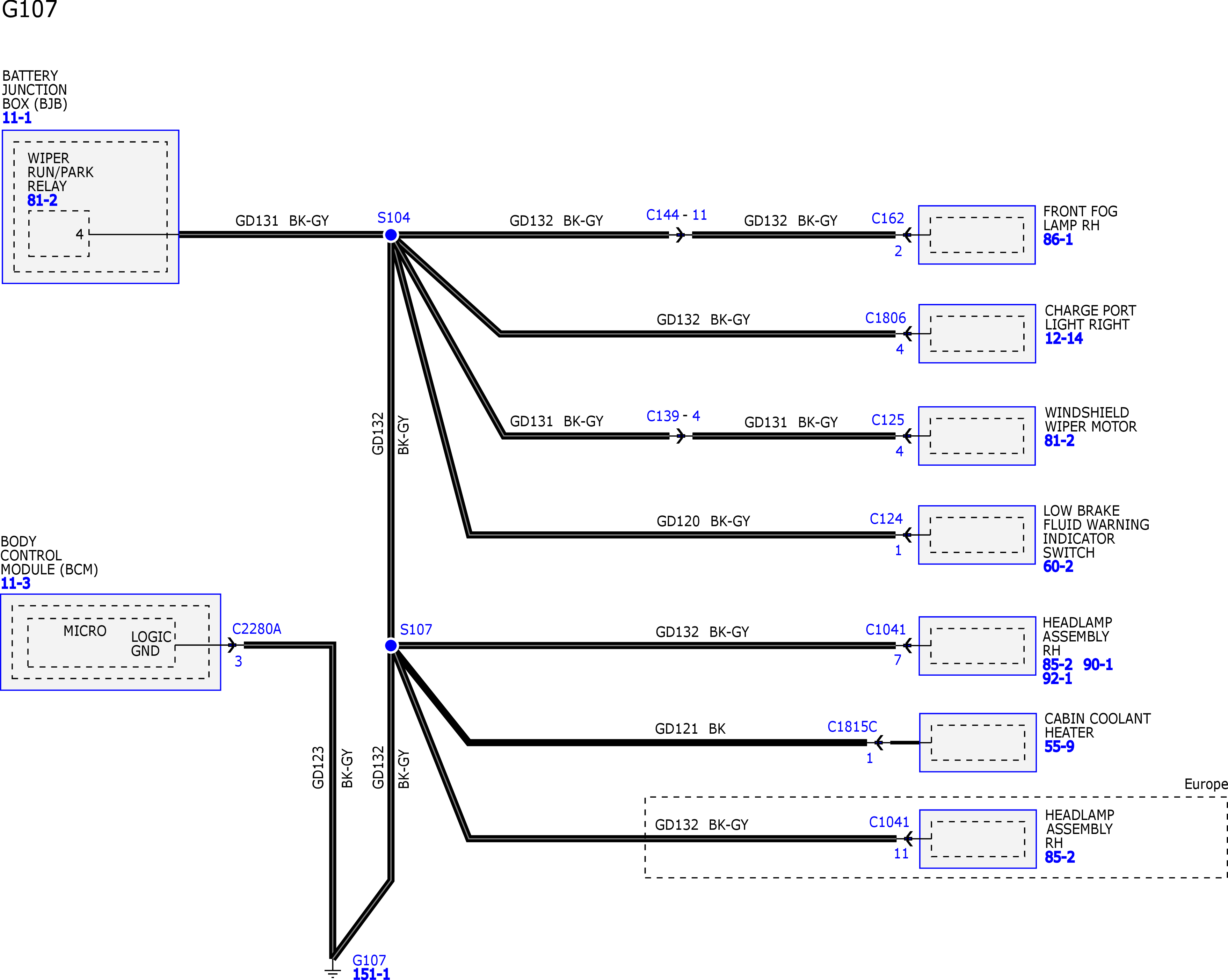

GFDW4420Courtesy of FORD MOTOR COMPANY

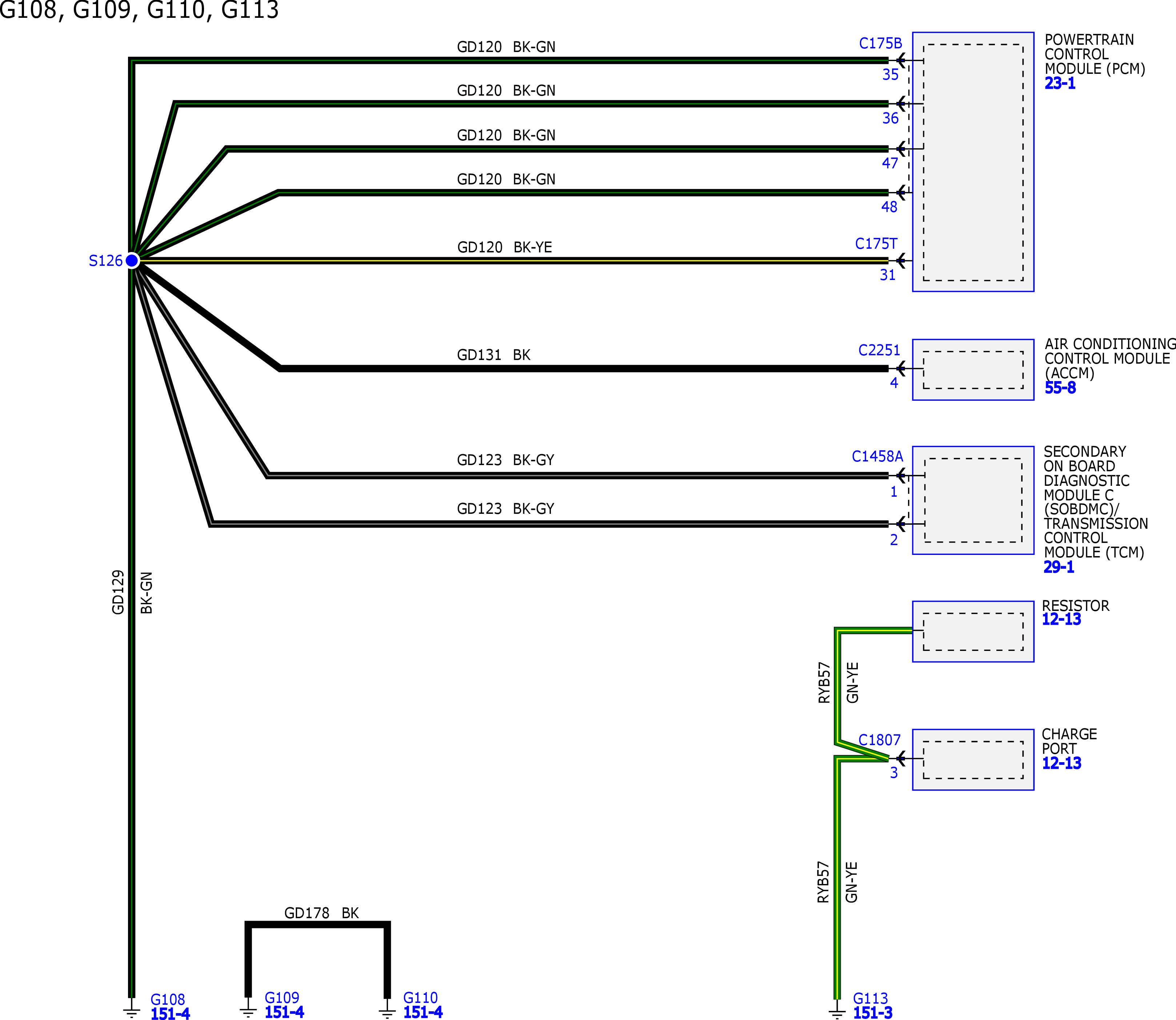

GFDW4421Courtesy of FORD MOTOR COMPANY

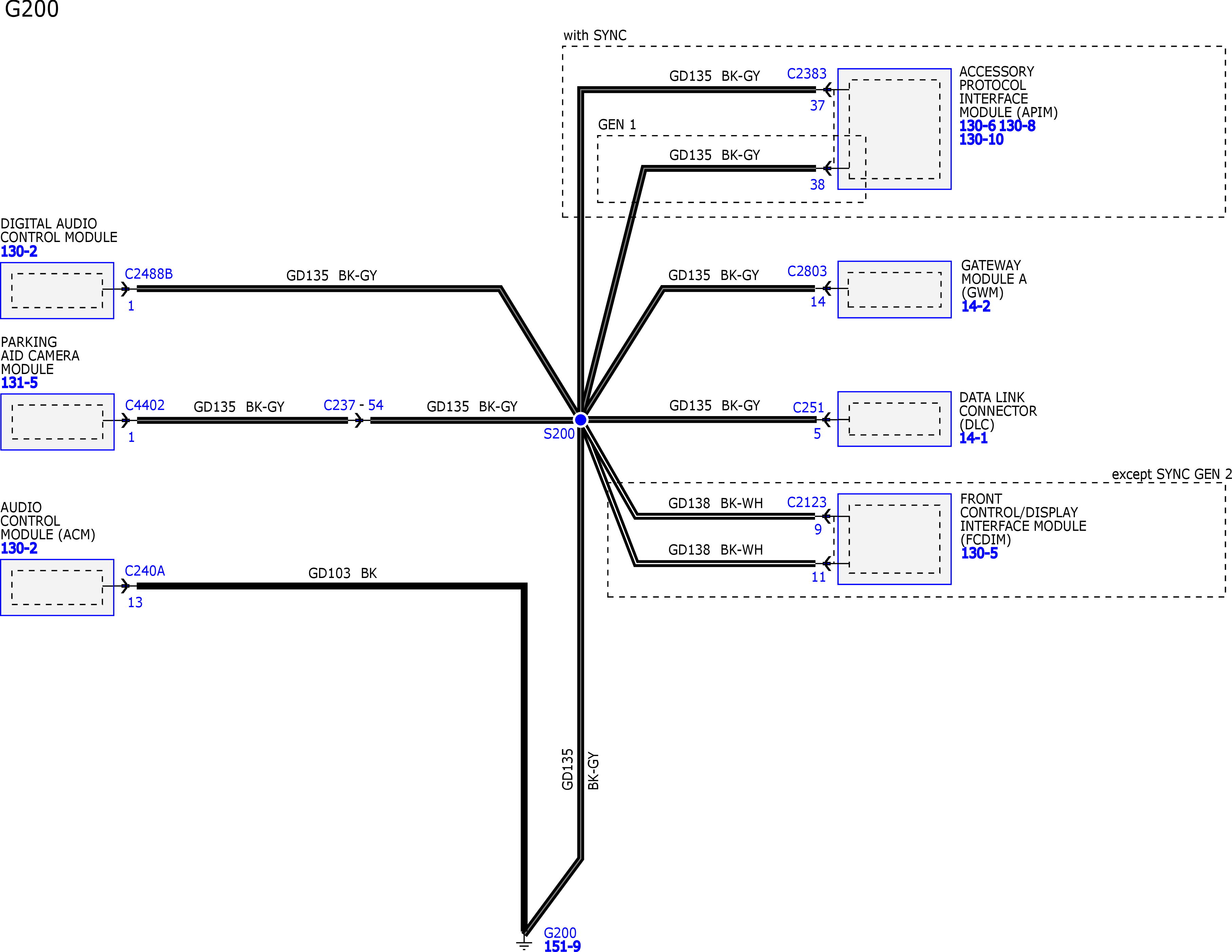

GFDW4422Courtesy of FORD MOTOR COMPANY

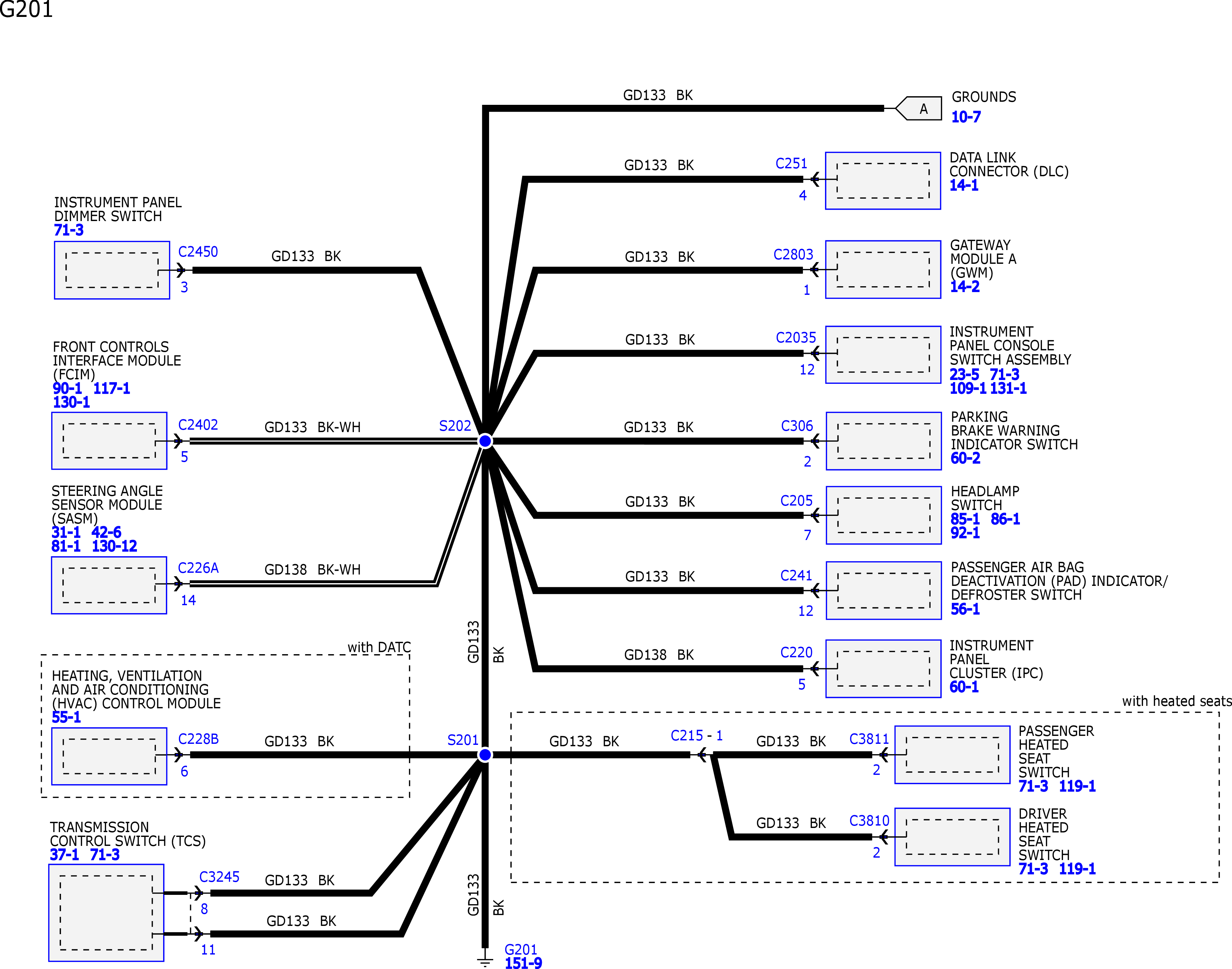

GFDW4423Courtesy of FORD MOTOR COMPANY

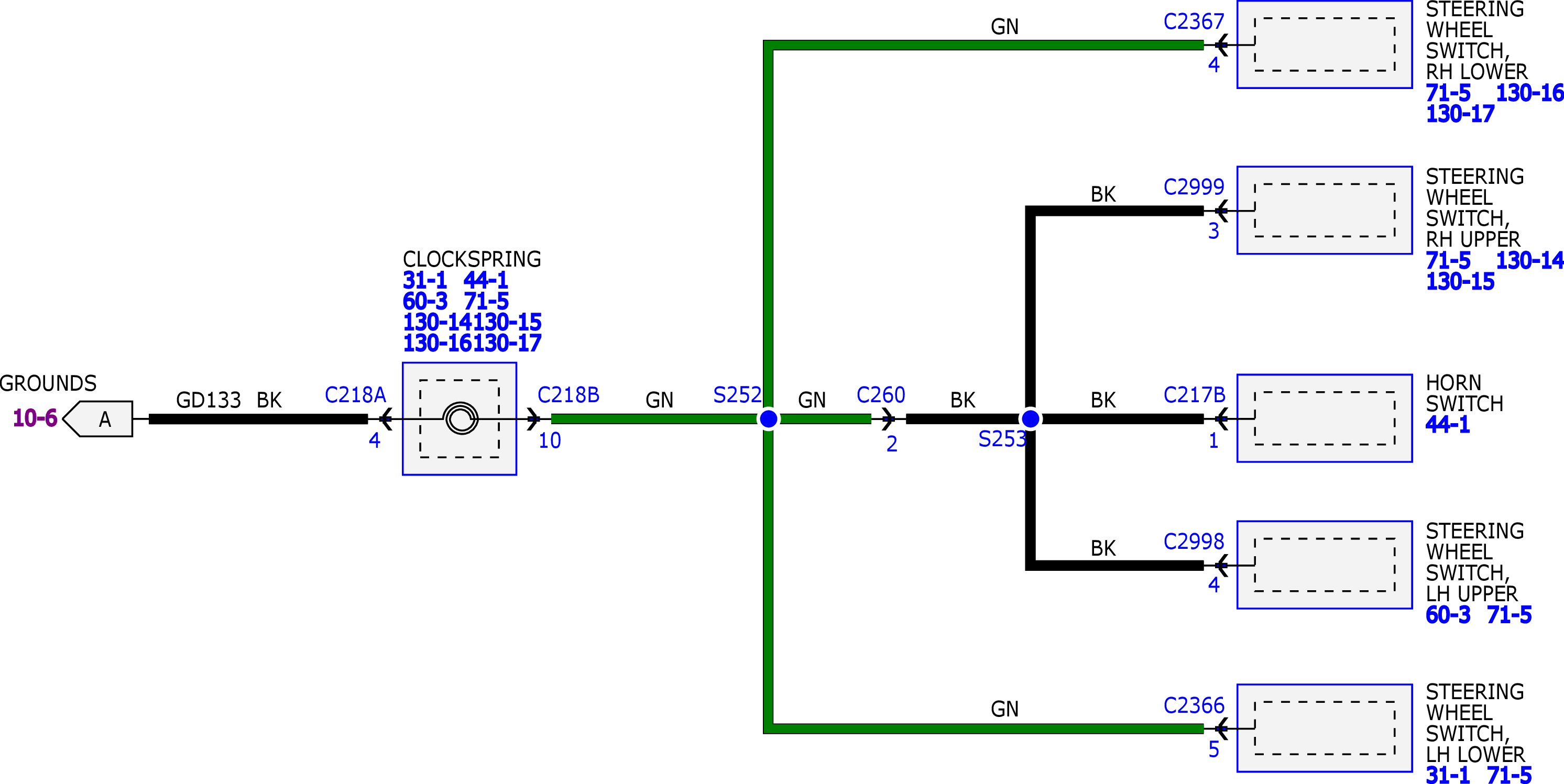

GFDW4424Courtesy of FORD MOTOR COMPANY

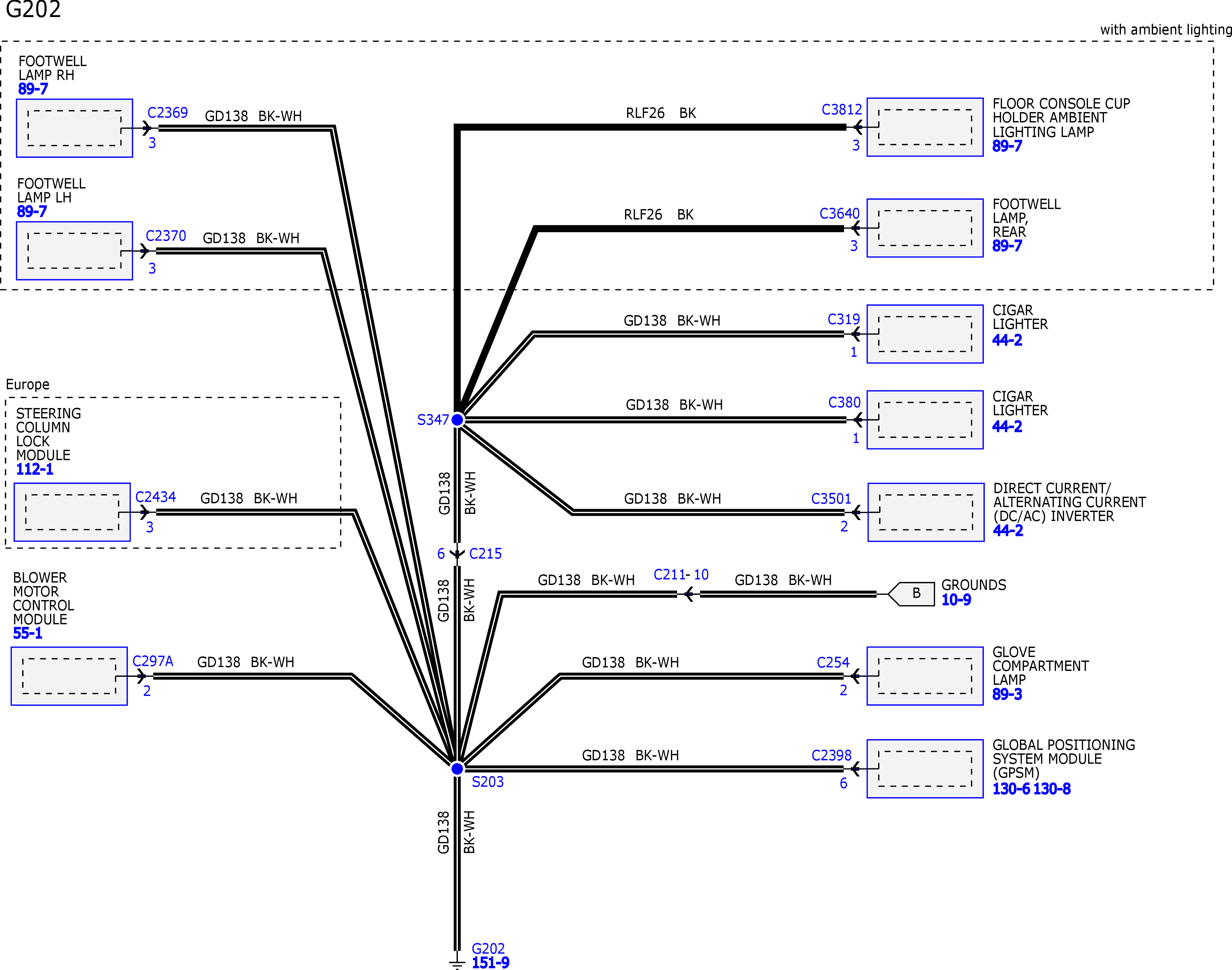

GFDW4425Courtesy of FORD MOTOR COMPANY

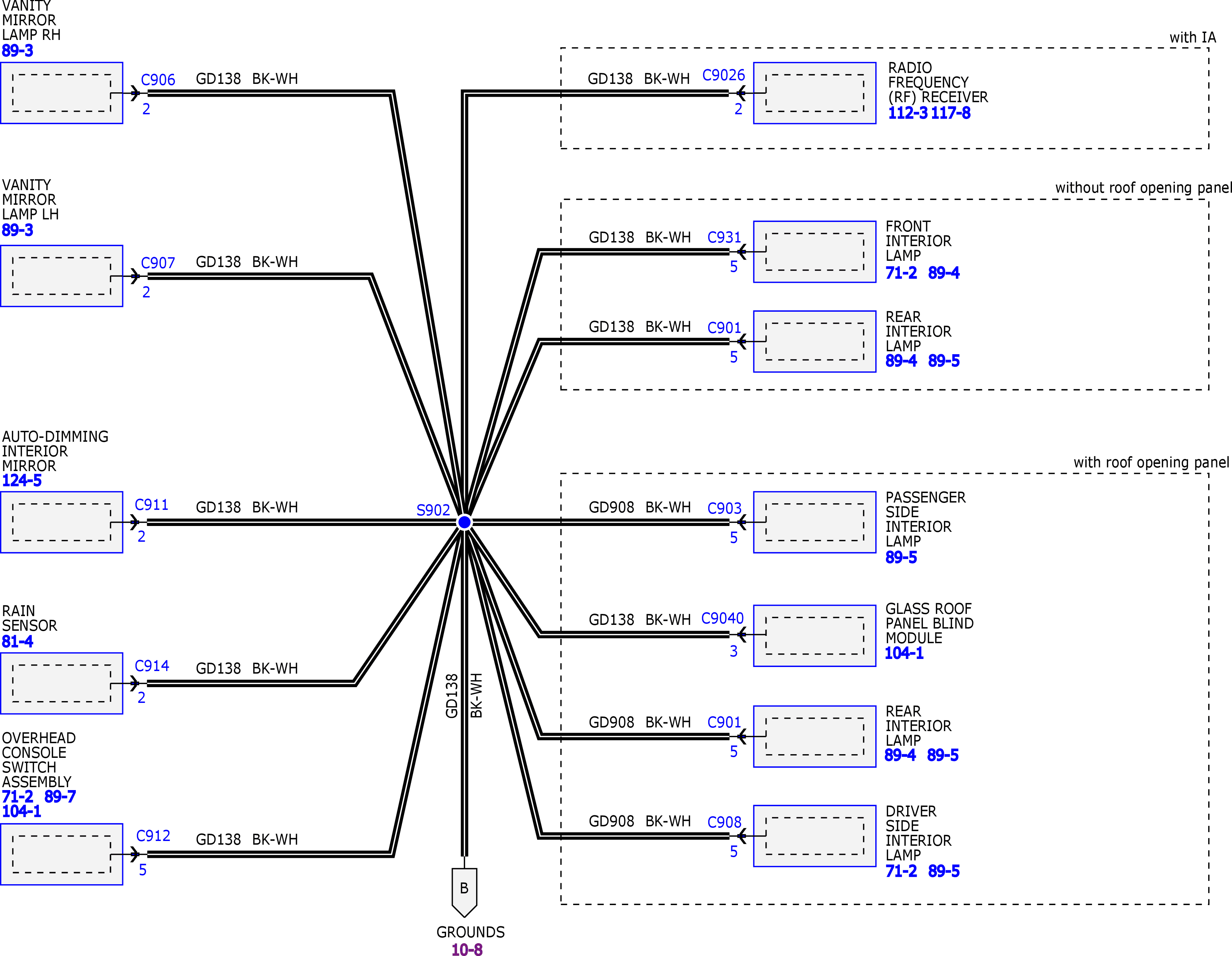

GFDW4426Courtesy of FORD MOTOR COMPANY

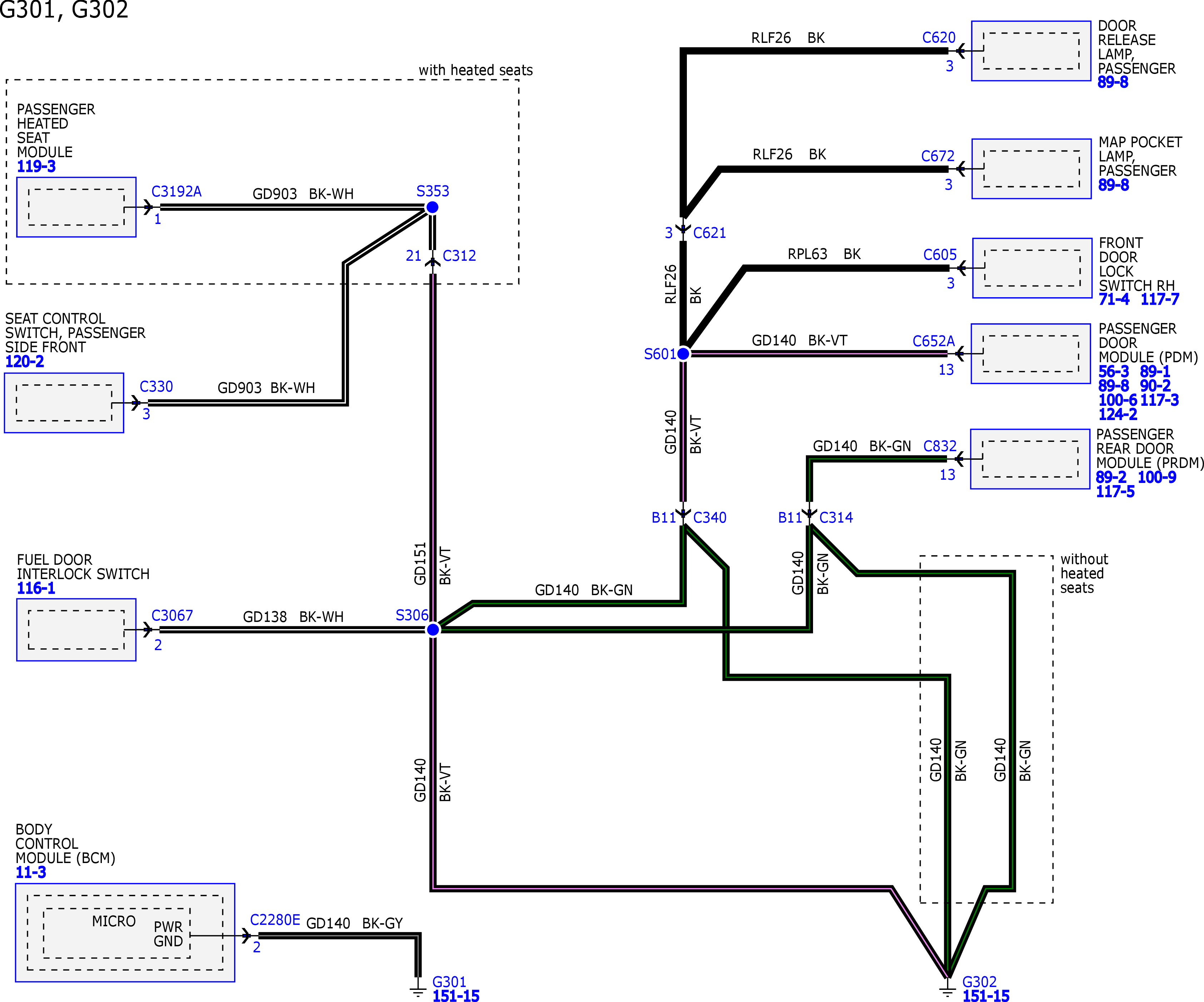

GFDW4427Courtesy of FORD MOTOR COMPANY
