Automatic Climate Control System
Automatic Climate Control System
WARNING:
This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

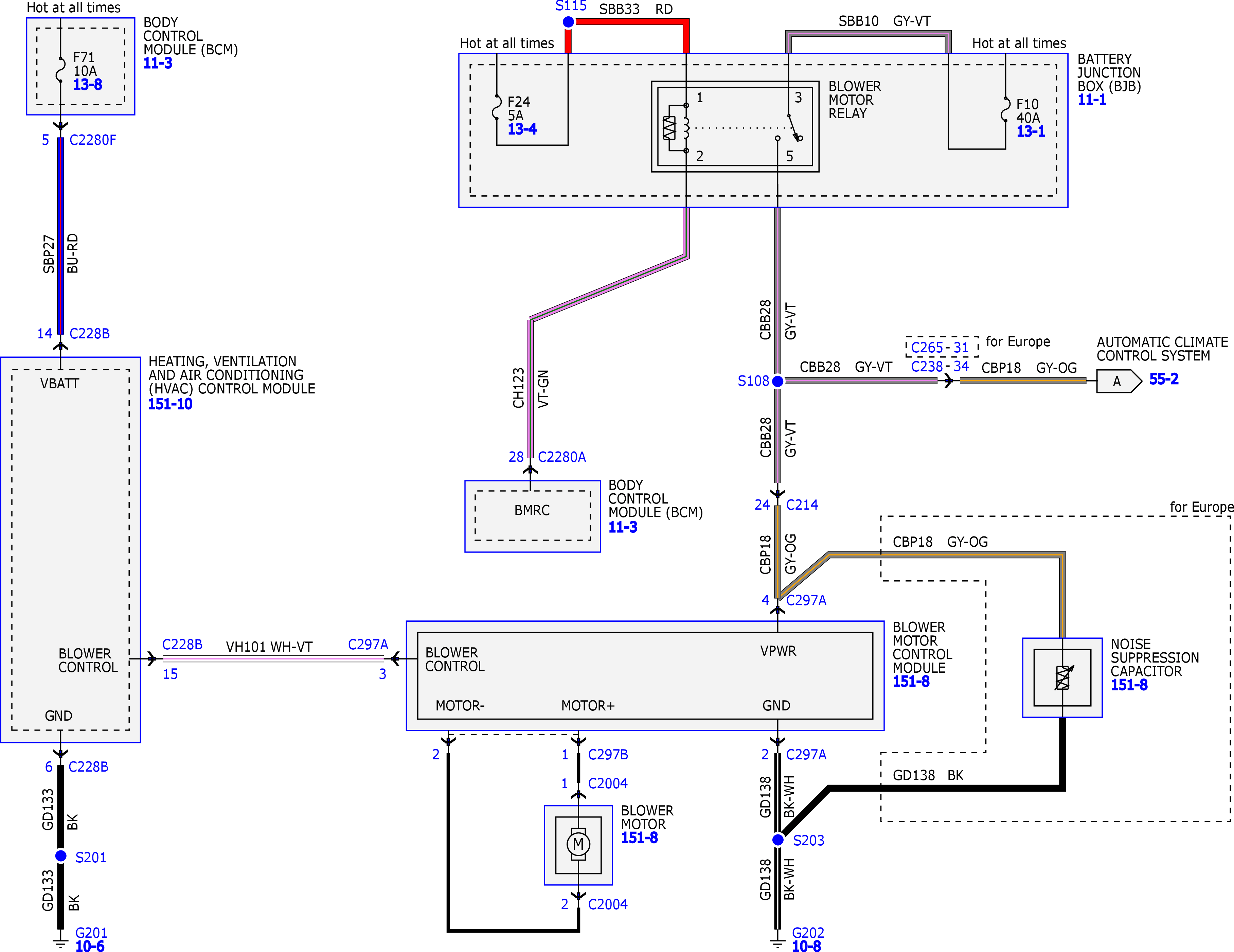

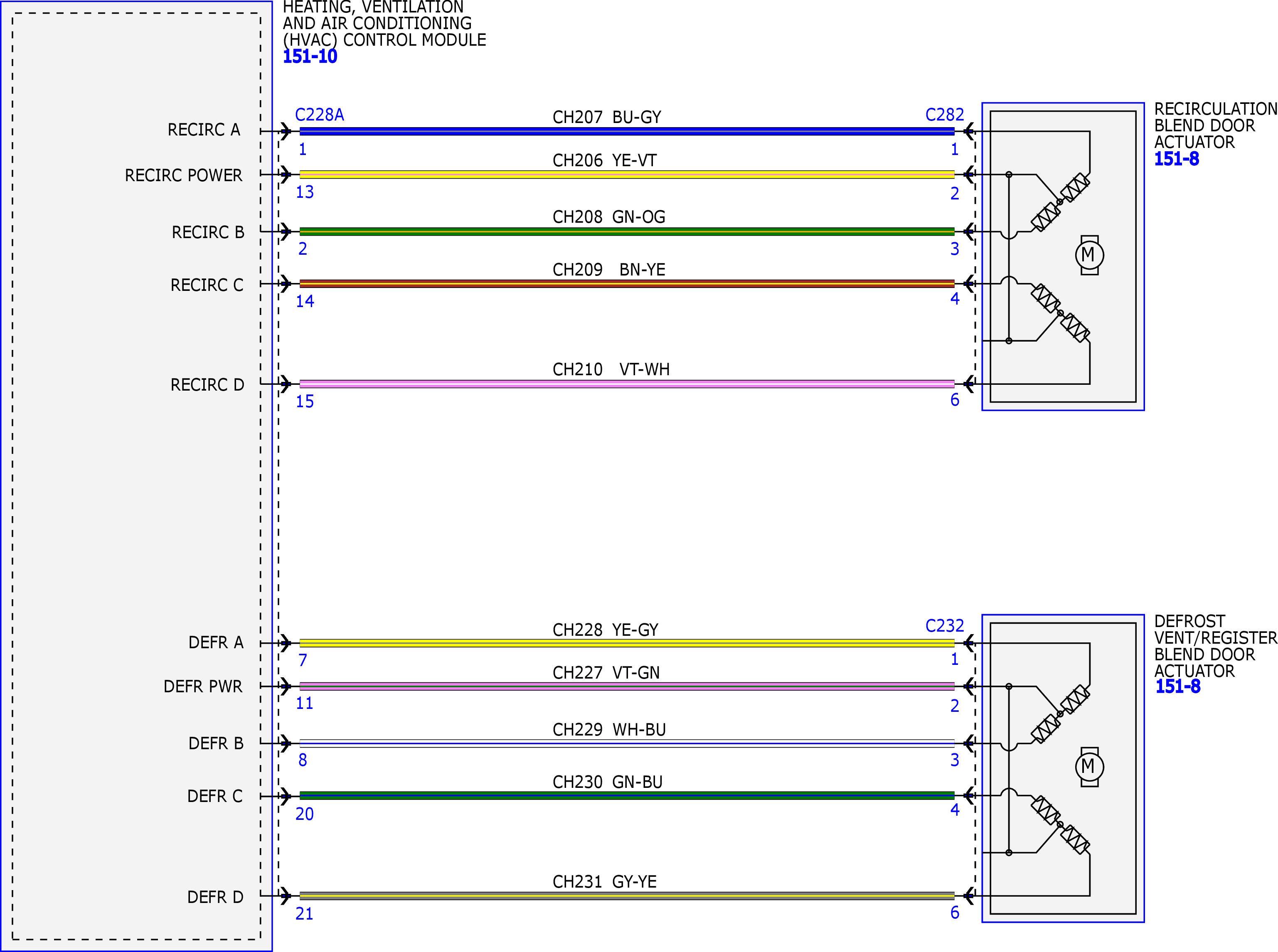

Fig 1: Automatic Climate Control System Wiring Diagram (1 Of 10)
Courtesy of FORD MOTOR COMPANY

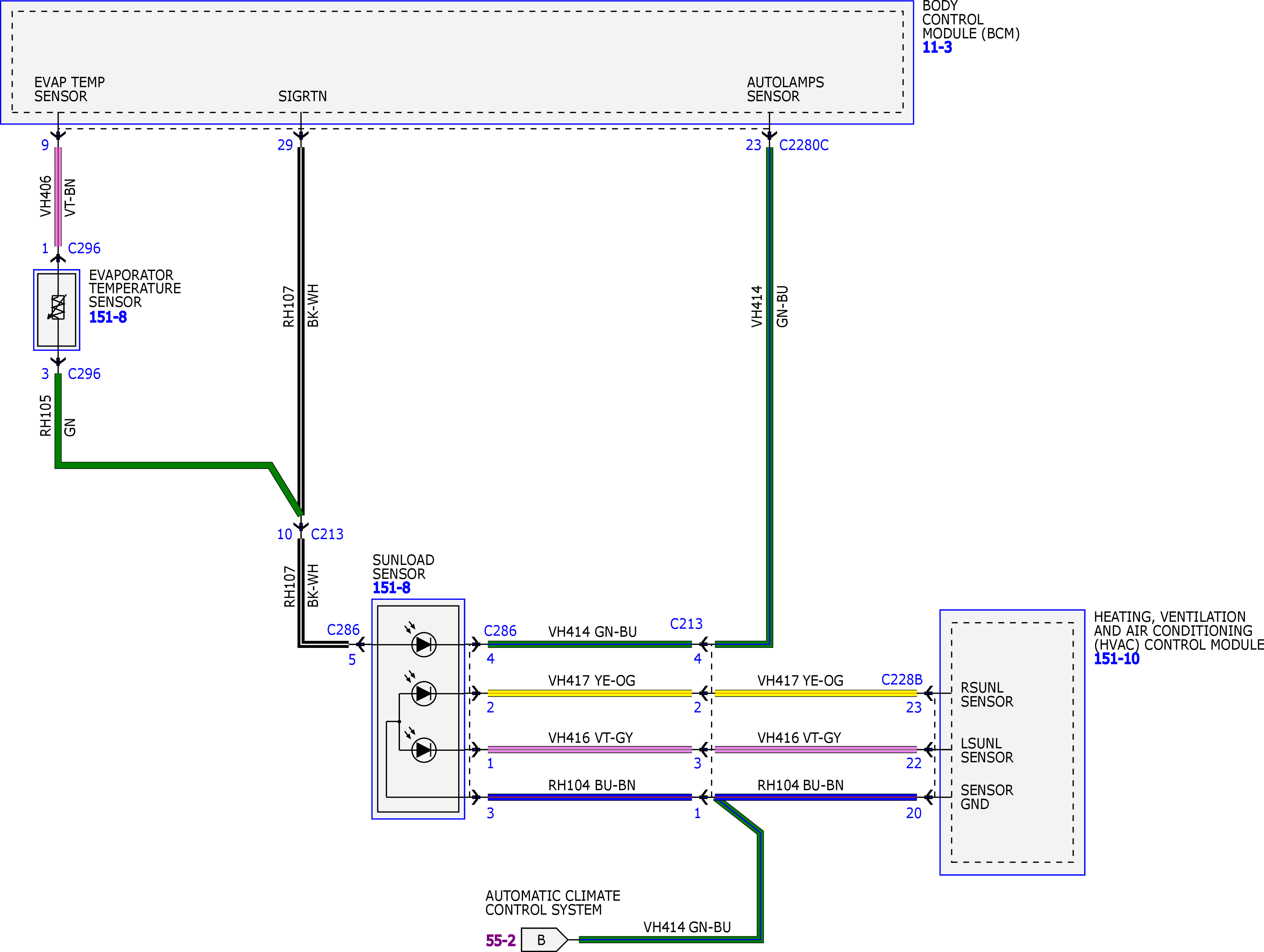

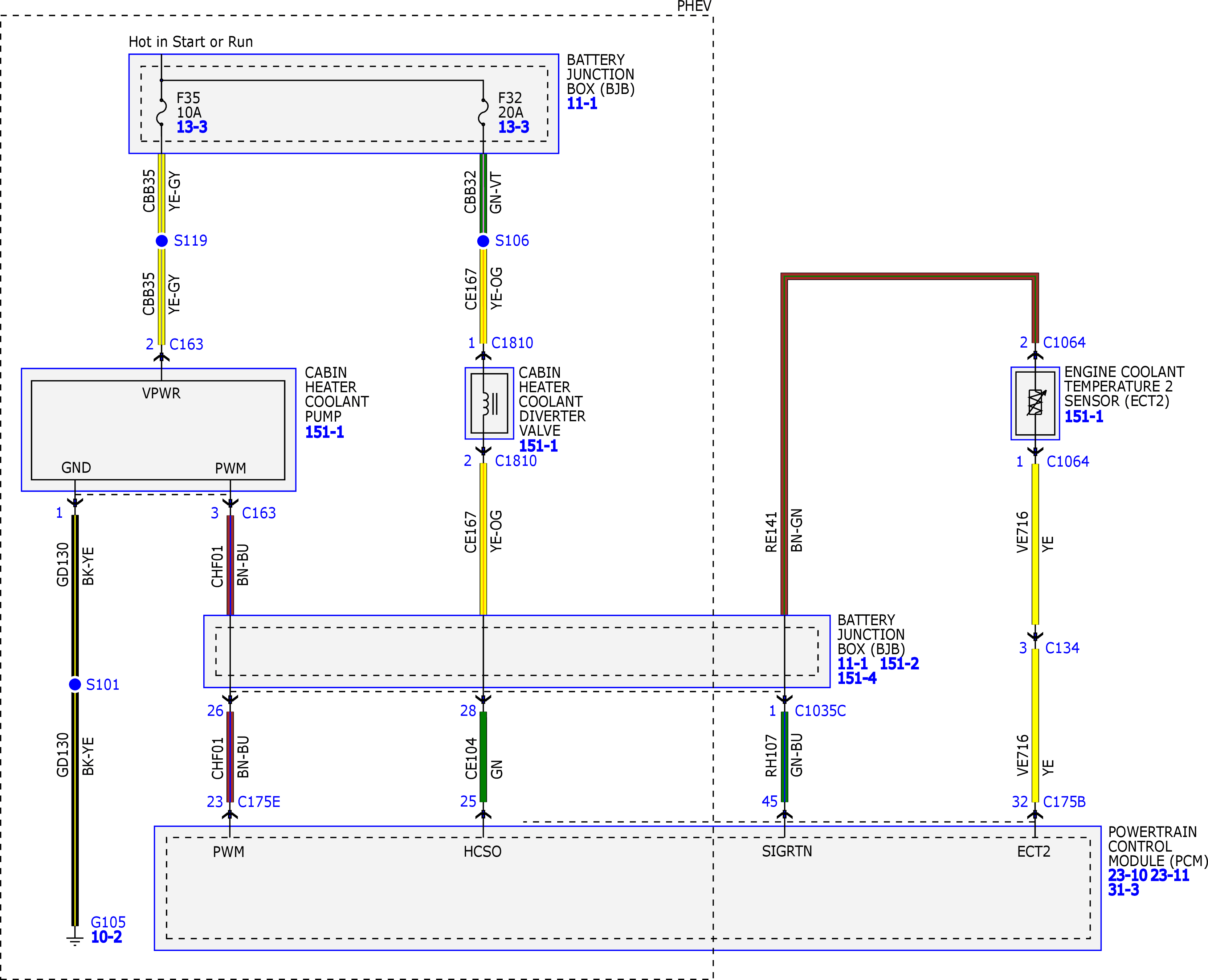

Fig 2: Automatic Climate Control System Wiring Diagram (2 Of 10)
Courtesy of FORD MOTOR COMPANY

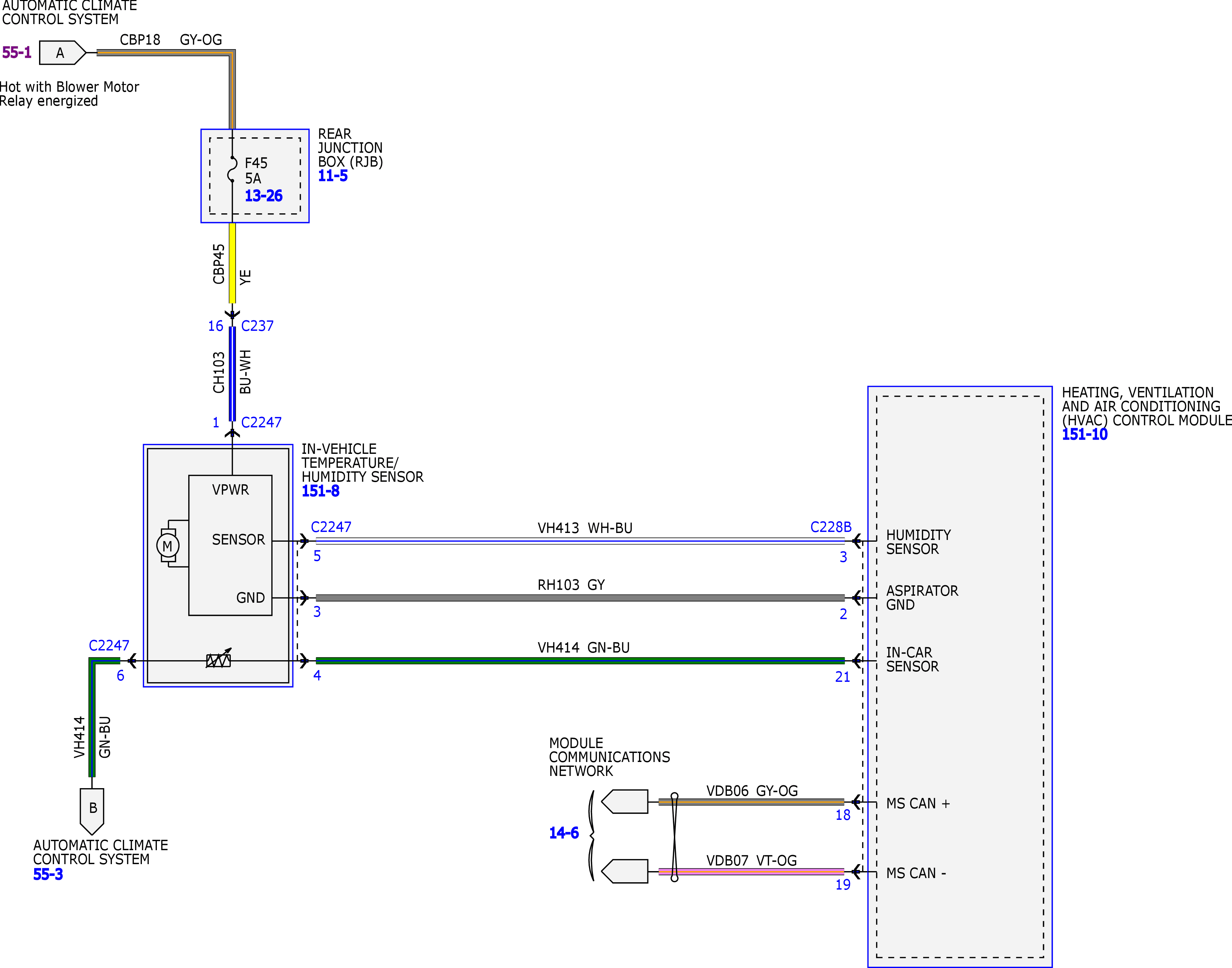

Fig 3: Automatic Climate Control System Wiring Diagram (3 Of 10)
Courtesy of FORD MOTOR COMPANY

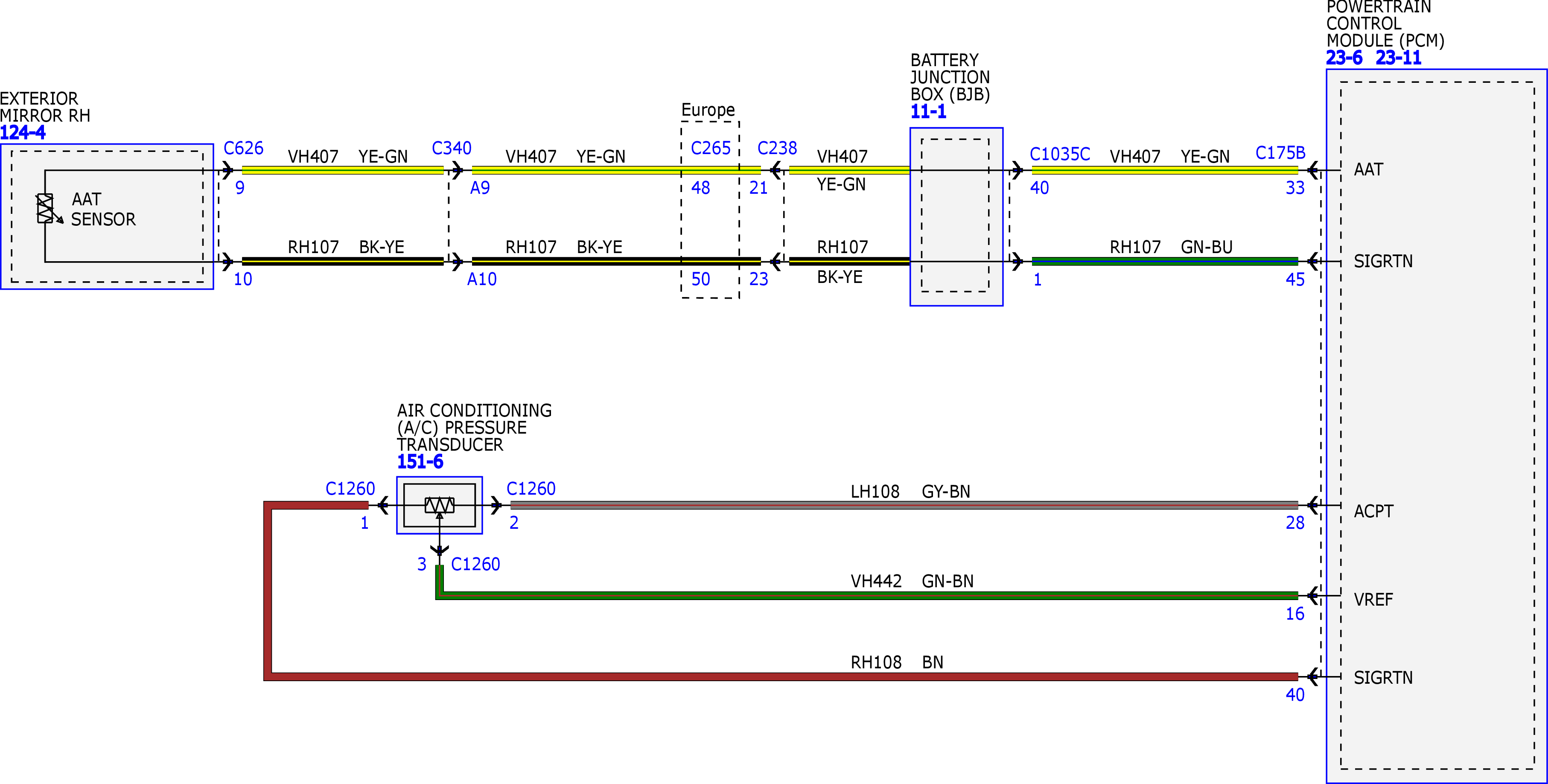

Fig 4: Automatic Climate Control System Wiring Diagram (4 Of 10)
Courtesy of FORD MOTOR COMPANY

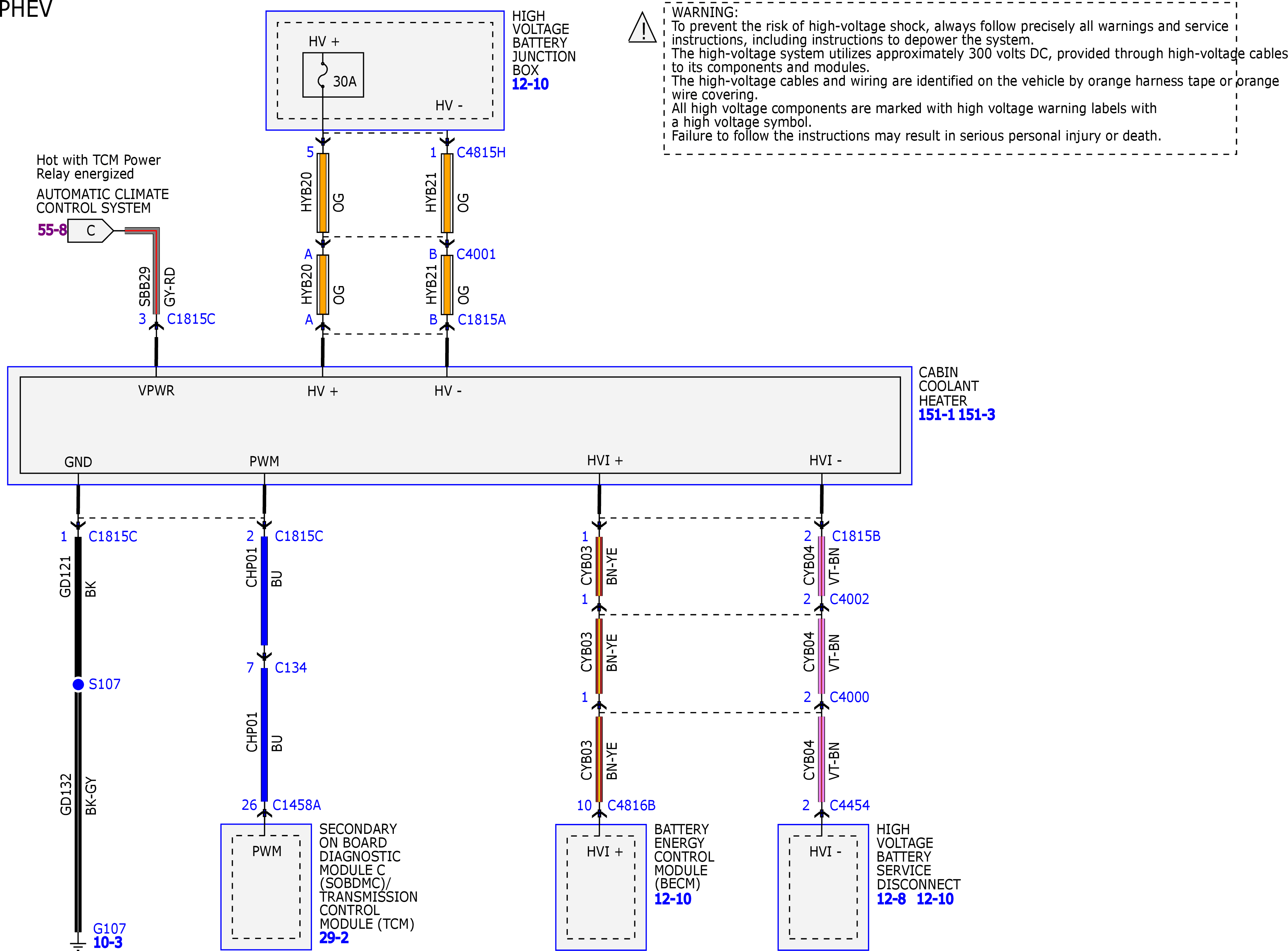

Fig 5: Automatic Climate Control System Wiring Diagram (5 Of 10)
Courtesy of FORD MOTOR COMPANY

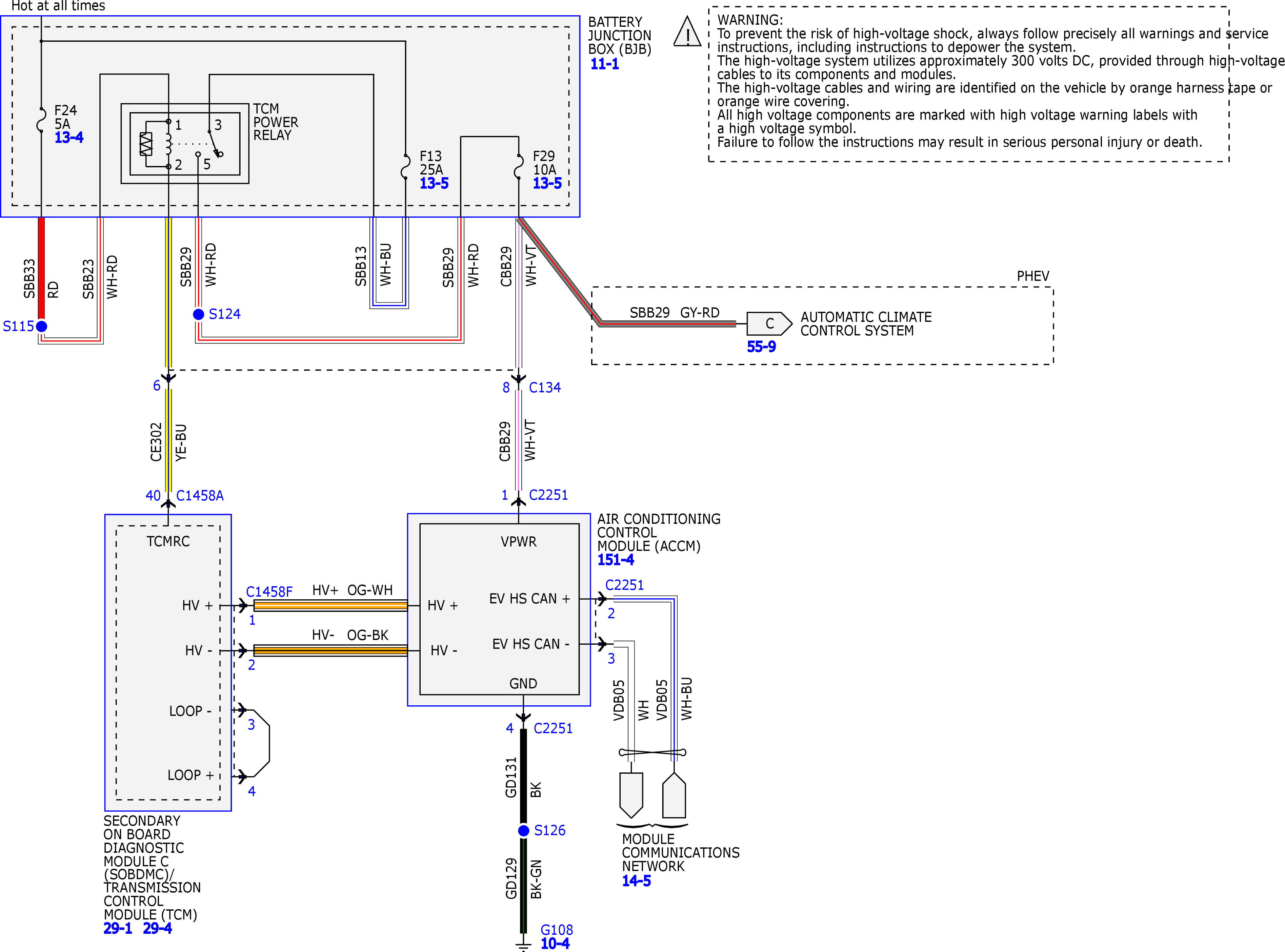

Fig 6: Automatic Climate Control System Wiring Diagram (6 Of 10)
Courtesy of FORD MOTOR COMPANY

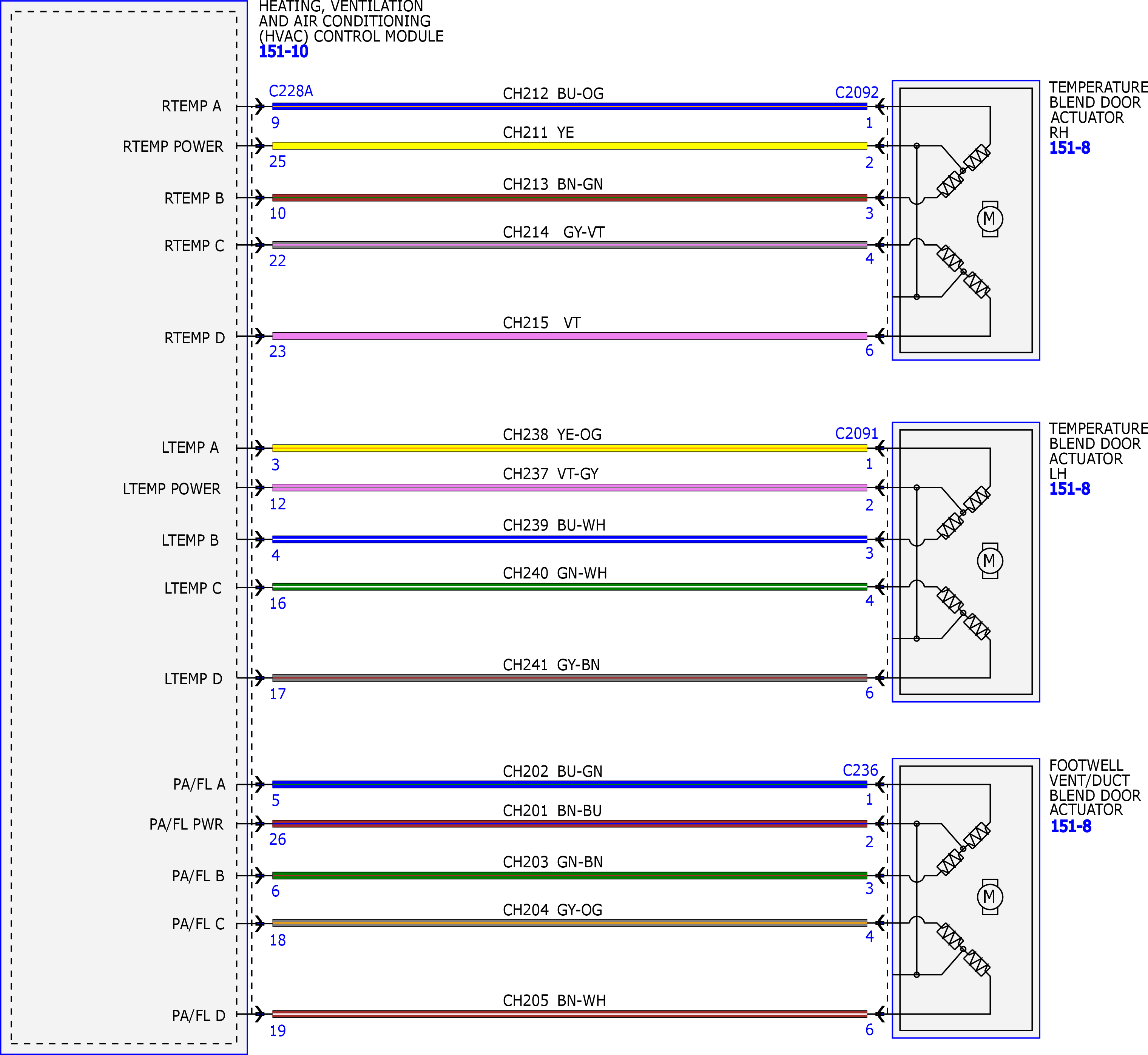

Fig 7: Automatic Climate Control System Wiring Diagram (7 Of 10)
Courtesy of FORD MOTOR COMPANY

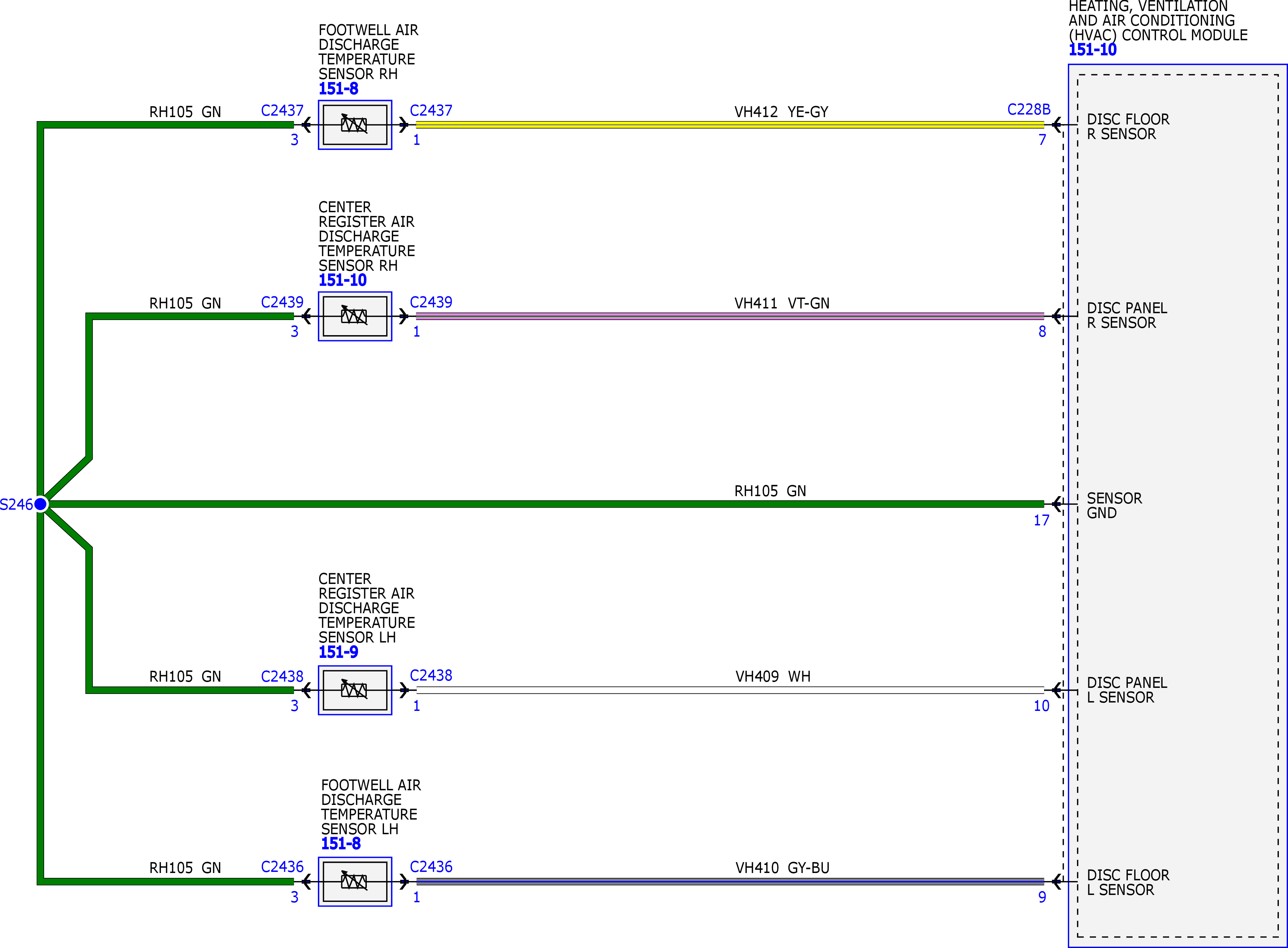

Fig 8: Automatic Climate Control System Wiring Diagram (8 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 9: Automatic Climate Control System Wiring Diagram (9 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 10: Automatic Climate Control System Wiring Diagram (10 Of 10)
Courtesy of FORD MOTOR COMPANY
