Overhead Console: Removal

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

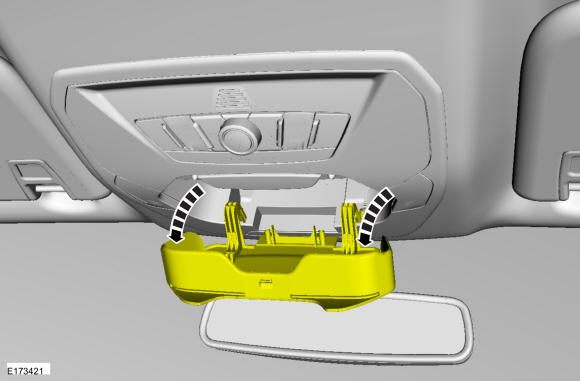

1.

Open the sun glasses bin.

GFD14343

Courtesy of FORD MOTOR COMPANY

NOTE: Sun glasses bin shown in illustration removed for clarity.

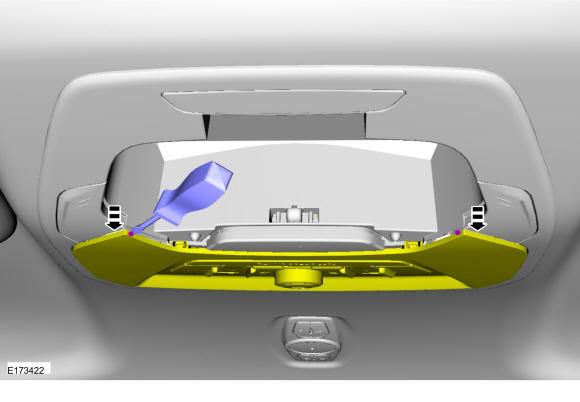

2.
Using a suitable tool pry both corners of the switch bezel down.

GFD14344

Courtesy of FORD MOTOR COMPANY

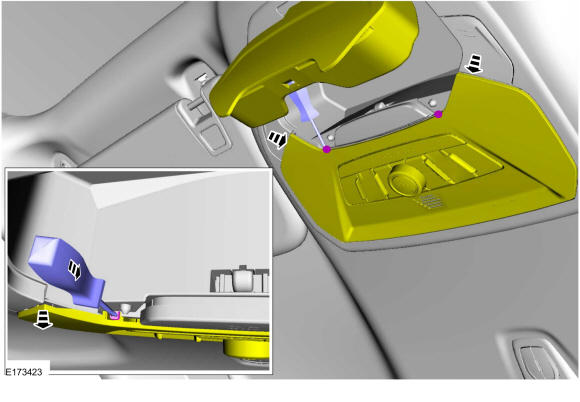

3.

Using a suitable tool push inward on both sides on the switch panel inner tabs to release the switch panel.

GFD14345

Courtesy of FORD MOTOR COMPANY

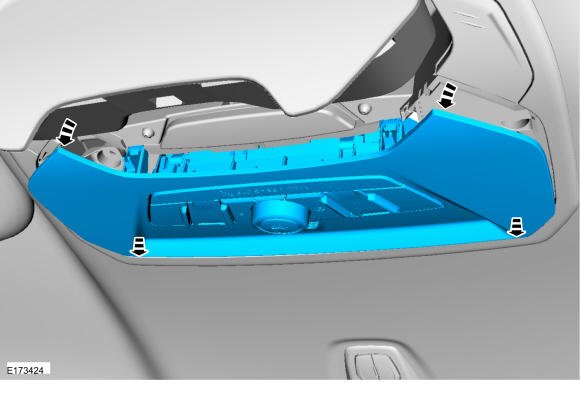

4.

Remove the switch panel.

GFD14346

Courtesy of FORD MOTOR COMPANY

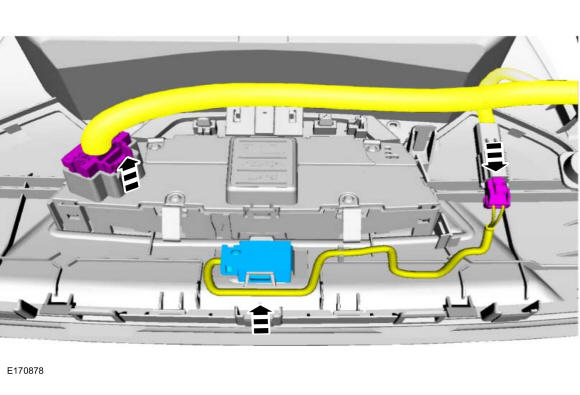

5.

Disconnect the electrical connectors.

GFD14347

Courtesy of FORD MOTOR COMPANY

6.

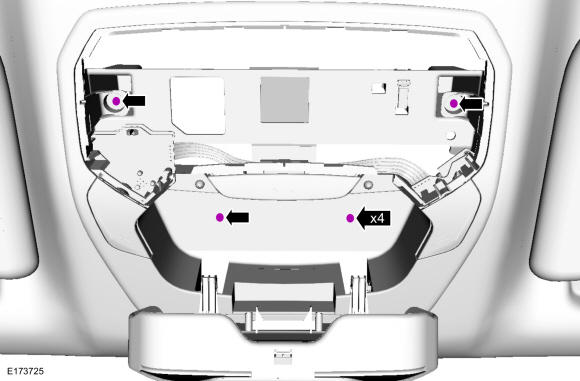

If equipped, remove the 4 torx screws.

GFD14348

Courtesy of FORD MOTOR COMPANY

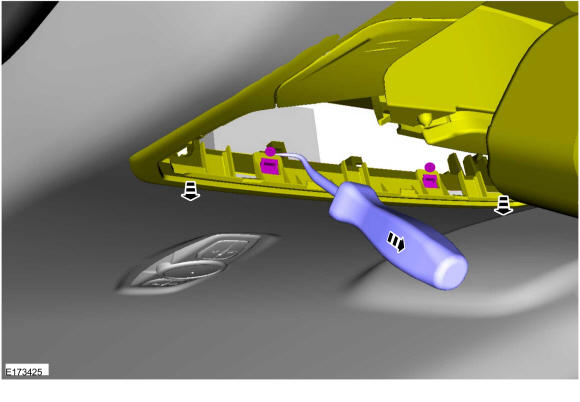

7.

Using a suitable tool release the snap tabs facing the rear of vehicle on both sides.

GFD14349

Courtesy of FORD MOTOR COMPANY

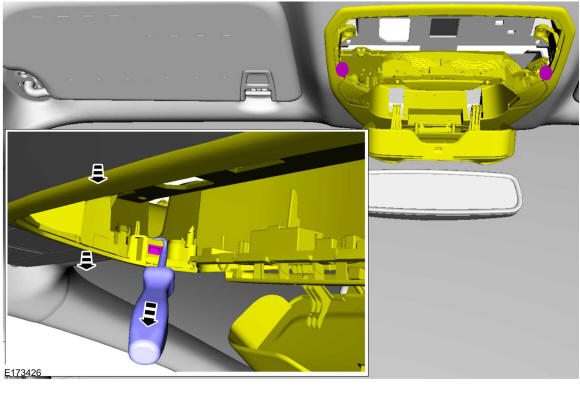

8.

Using a suitable tool release the side snap tabs on both sides.

GFD14350

Courtesy of FORD MOTOR COMPANY

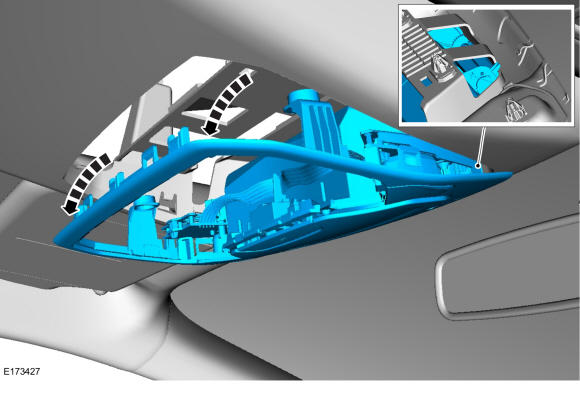

9.

Rotate the overhead console assembly downward and pull rearward to release the clip tabs and remove the overhead console assembly.

GFD14351

Courtesy of FORD MOTOR COMPANY
