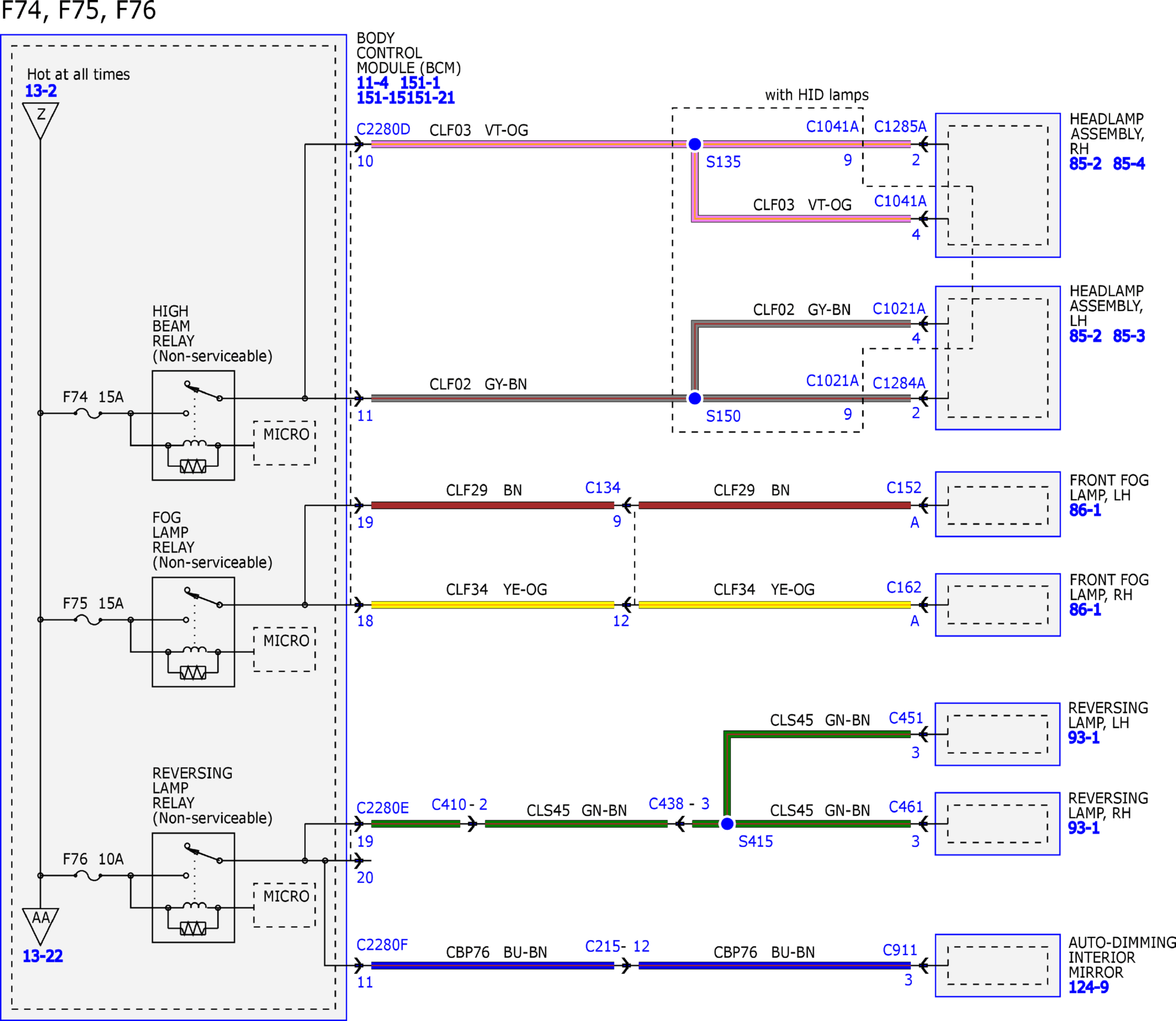

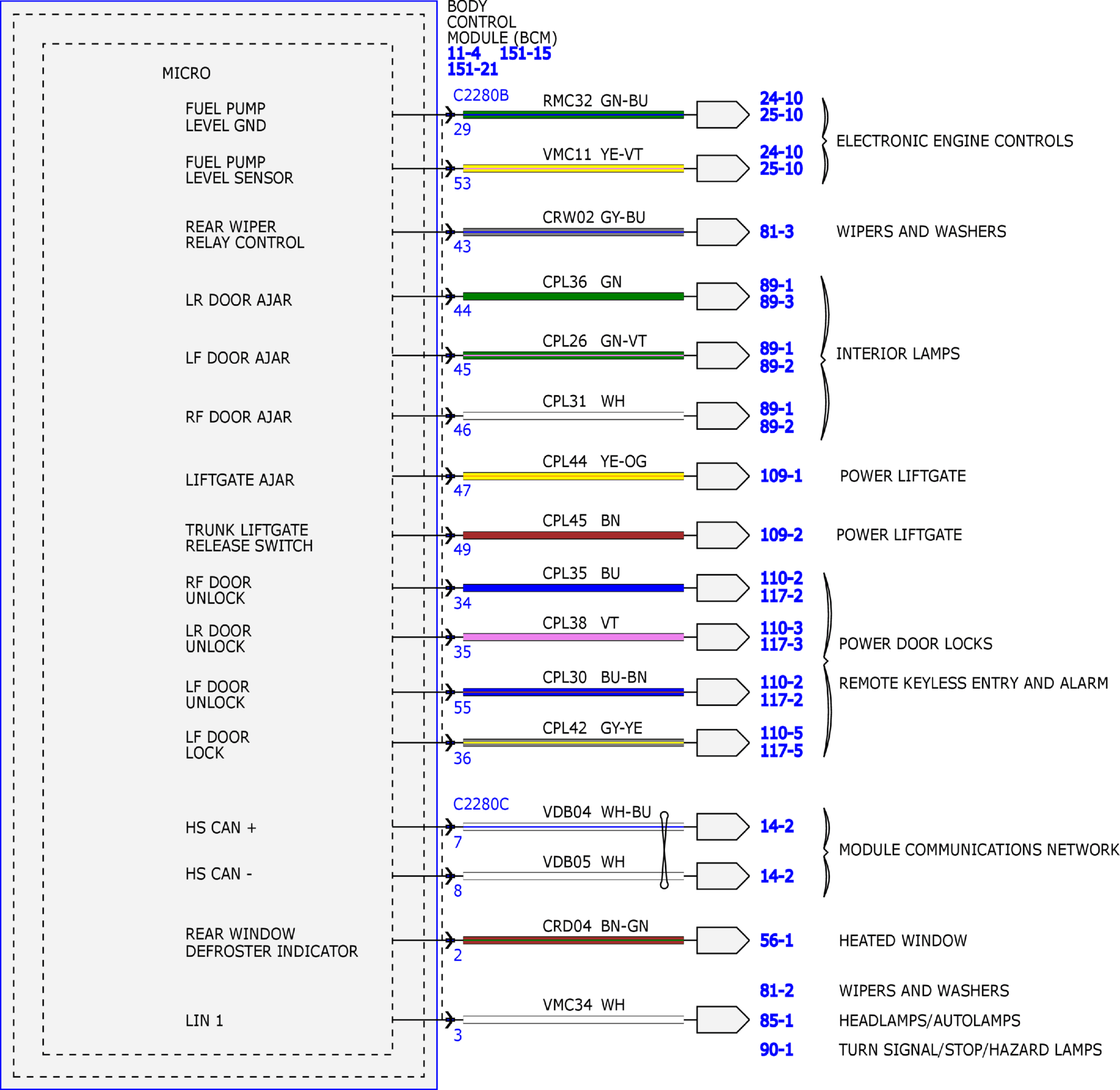

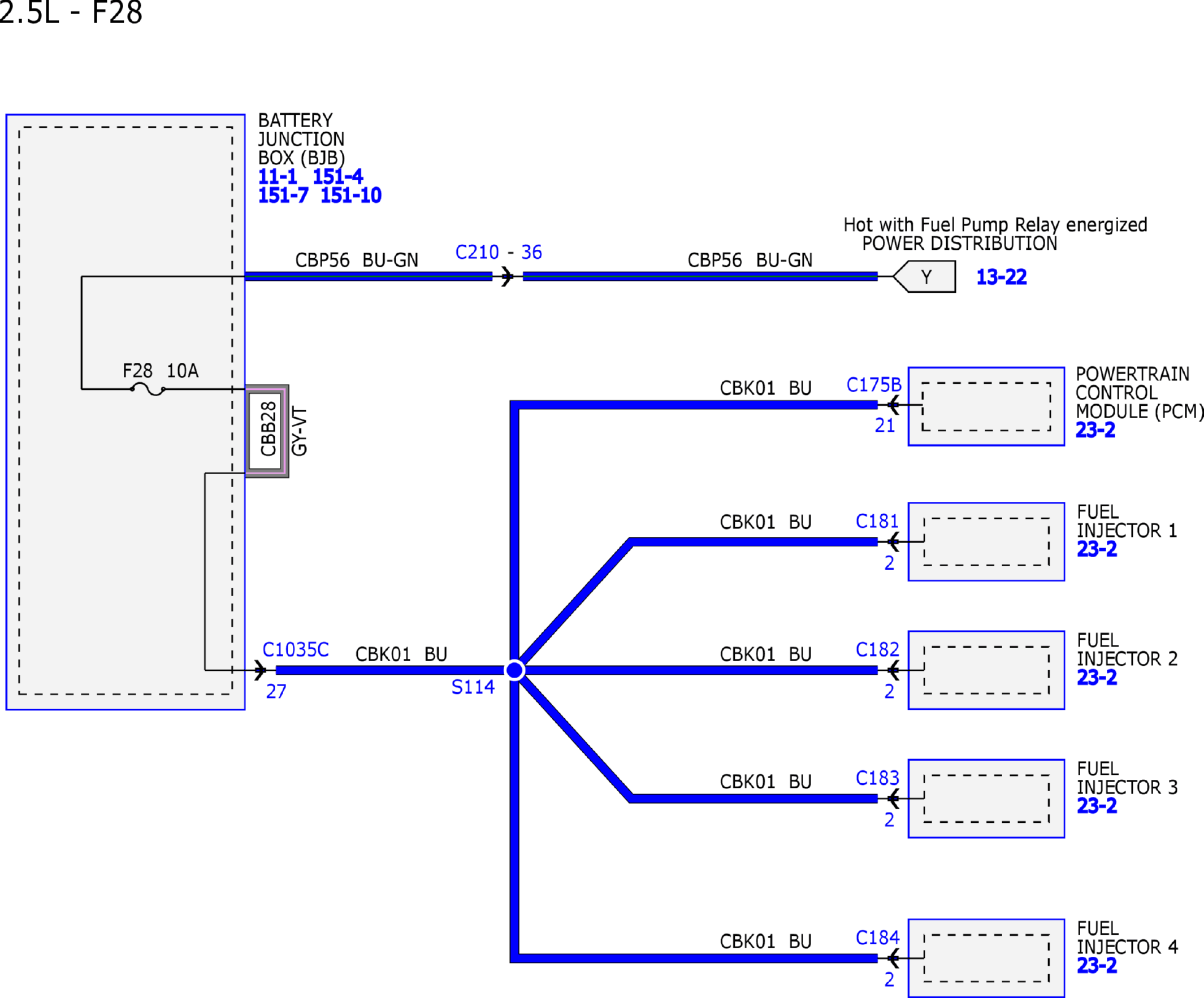

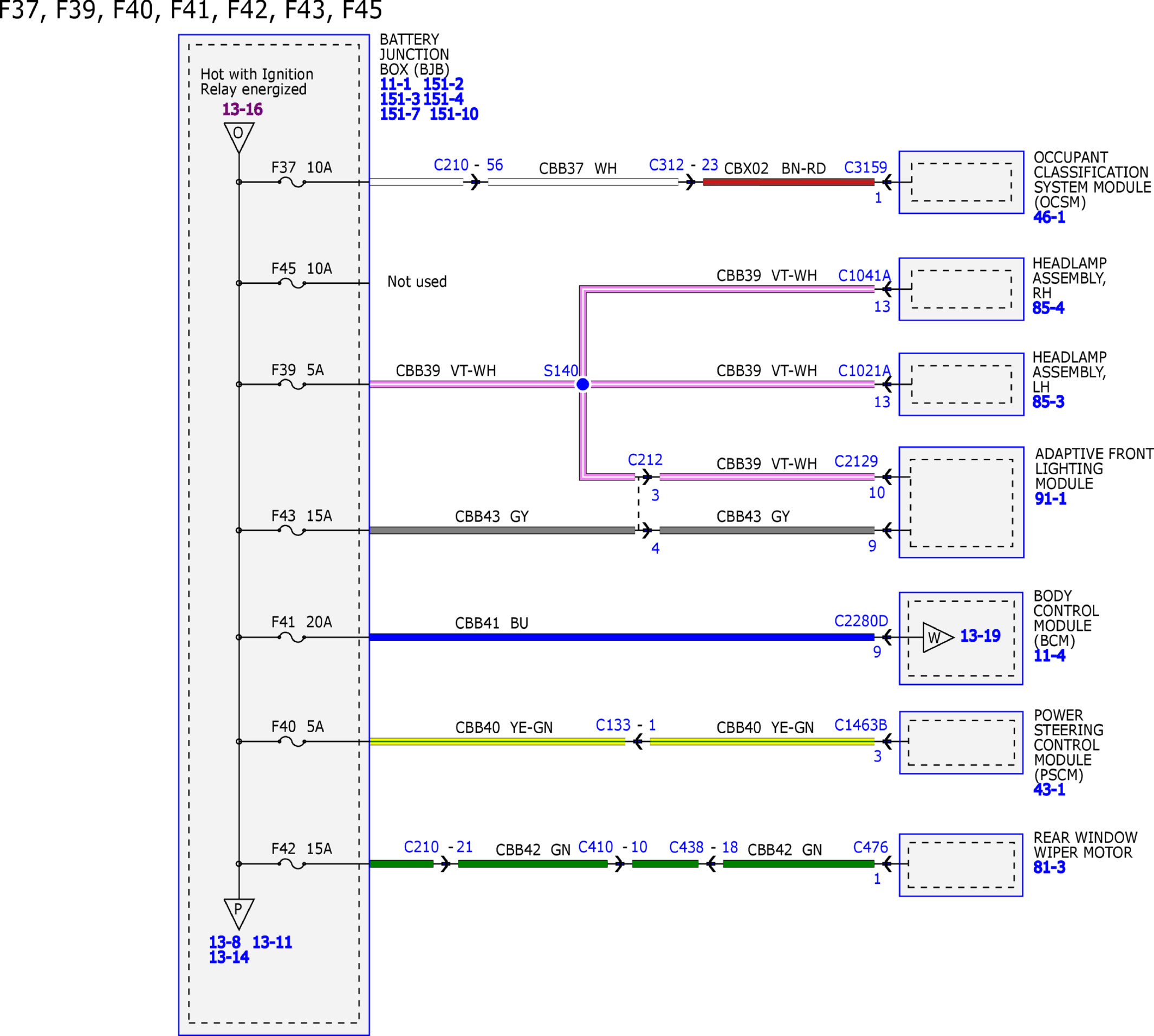

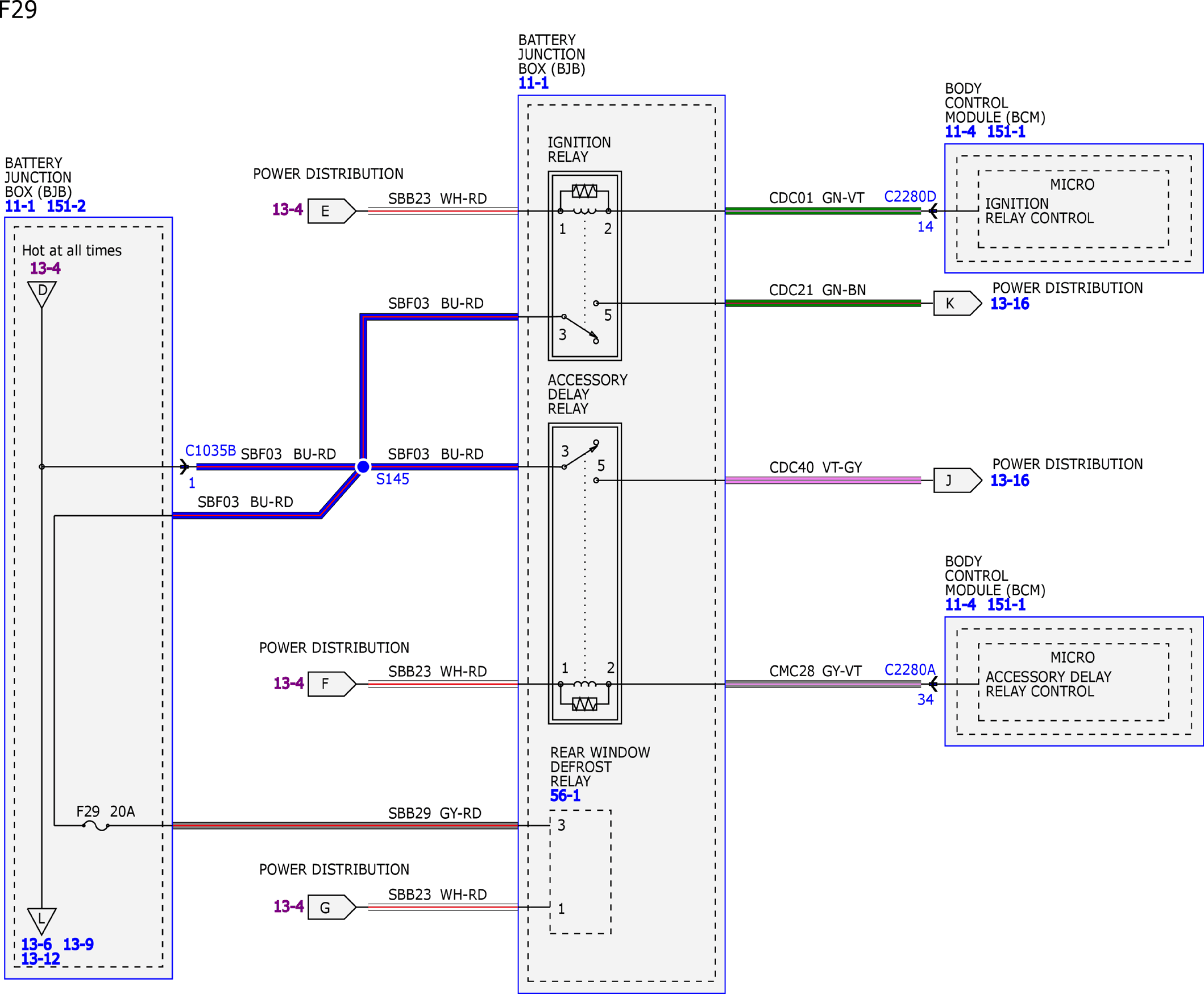

Fig 1: Power Distribution/BCM System Wiring Diagrams (1 of 39)
Courtesy of FORD MOTOR COMPANY

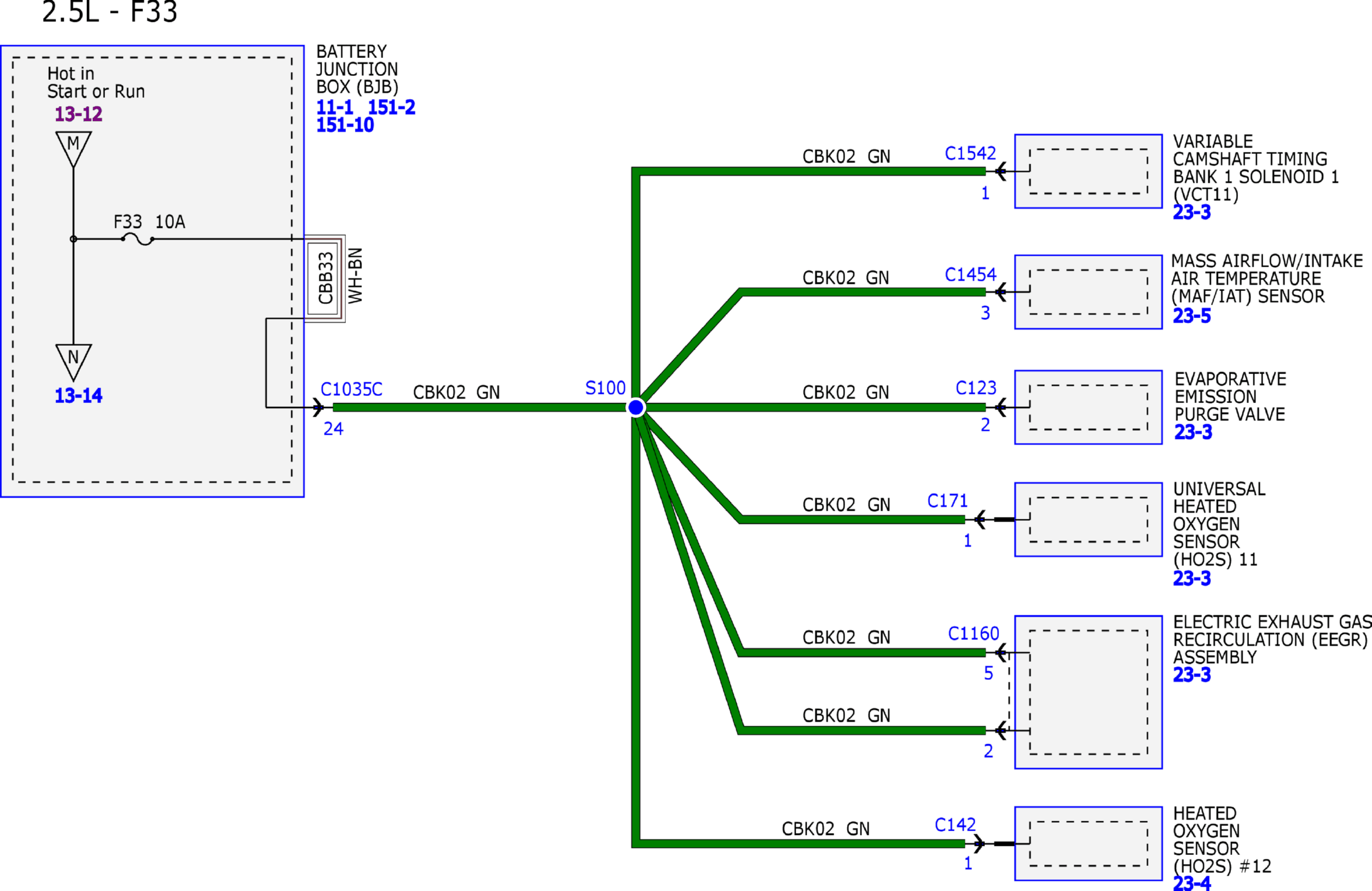

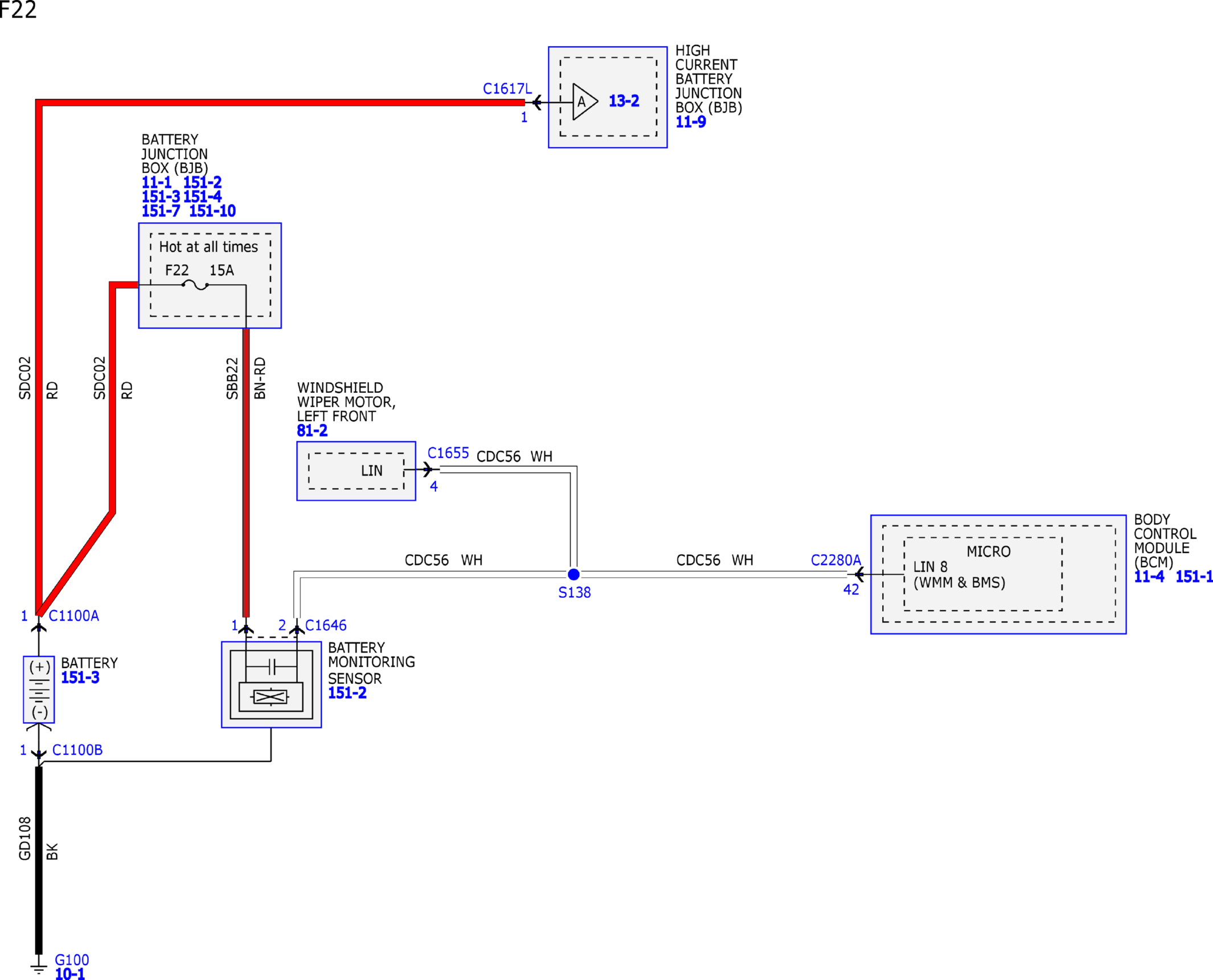

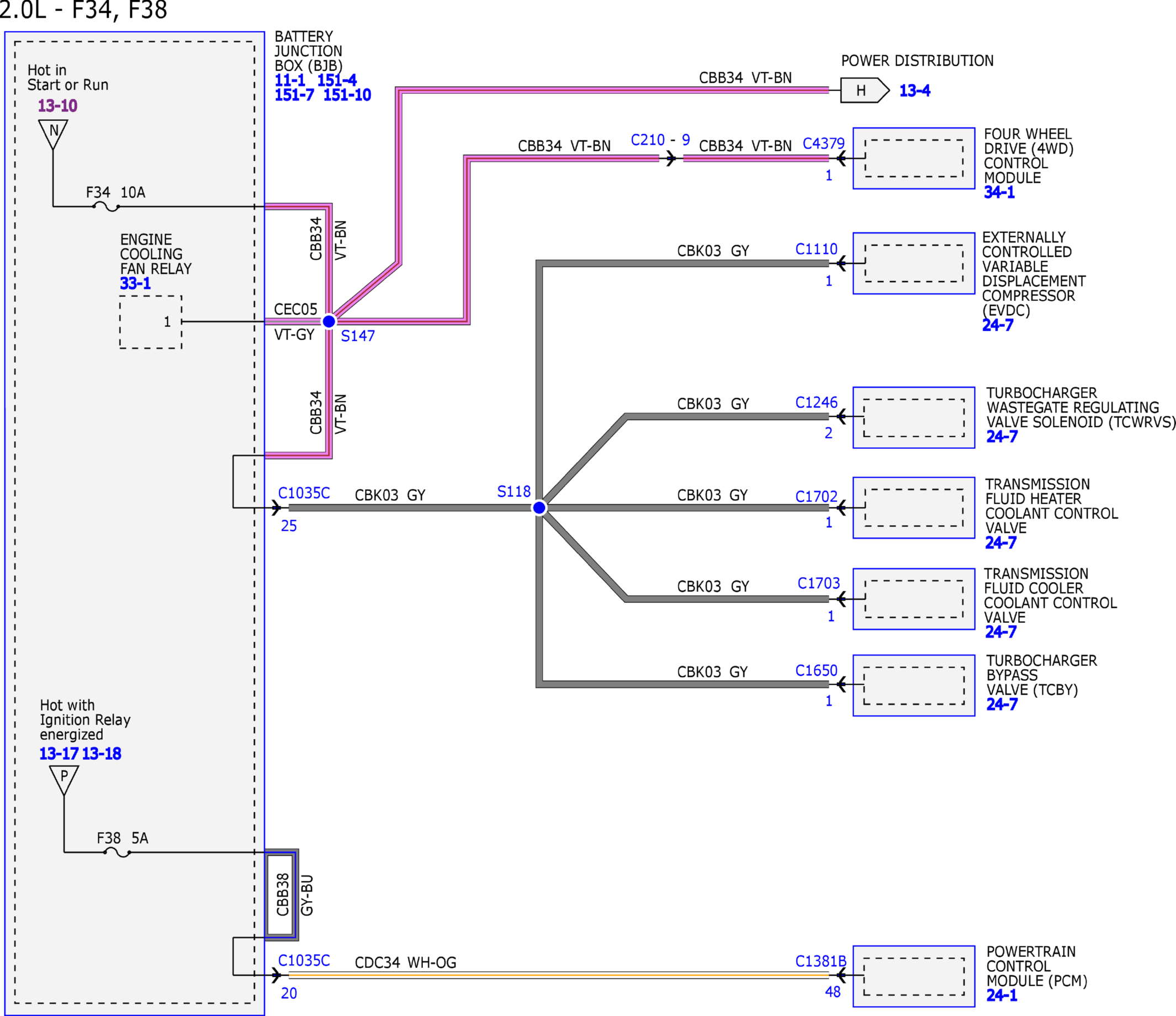

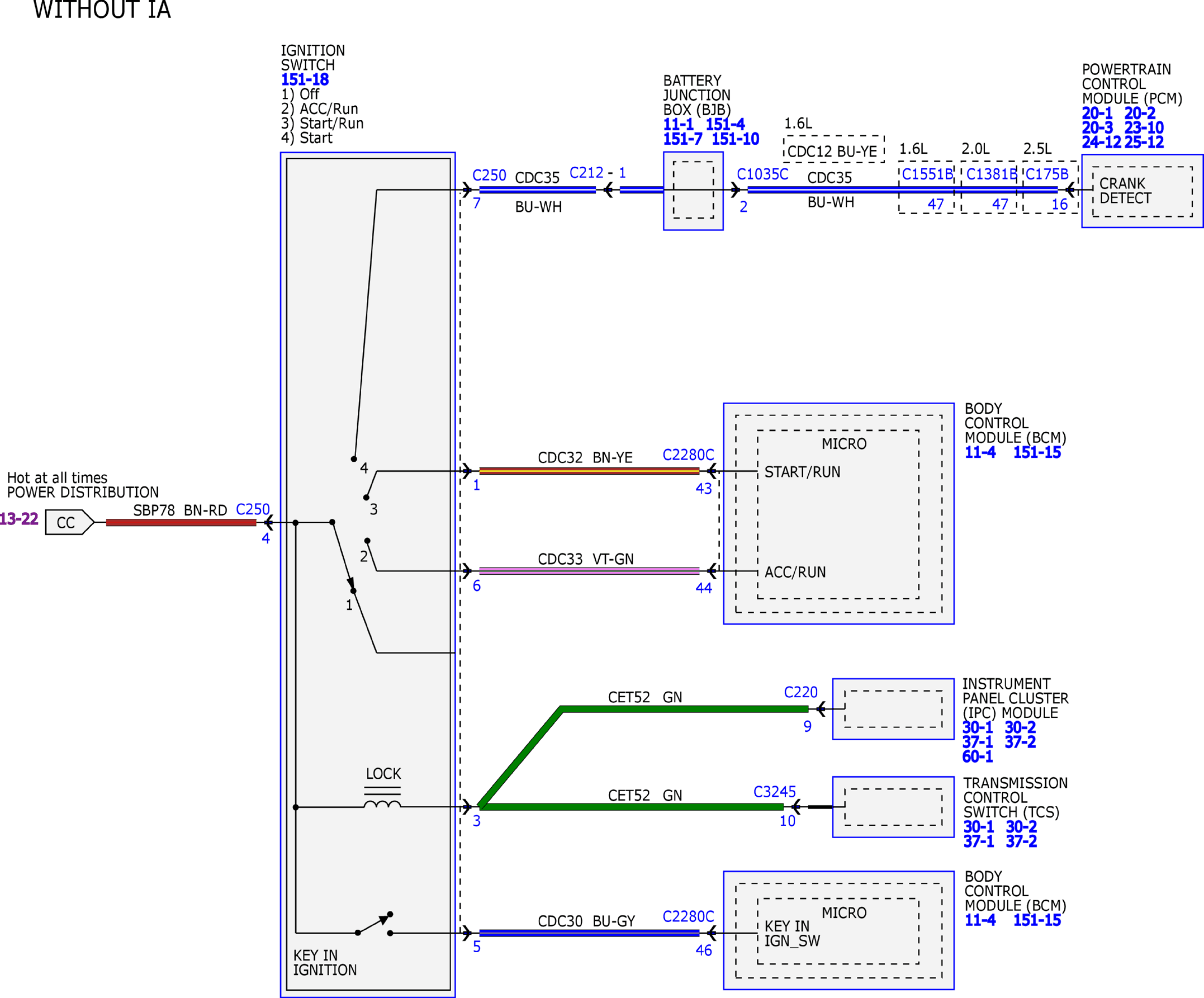

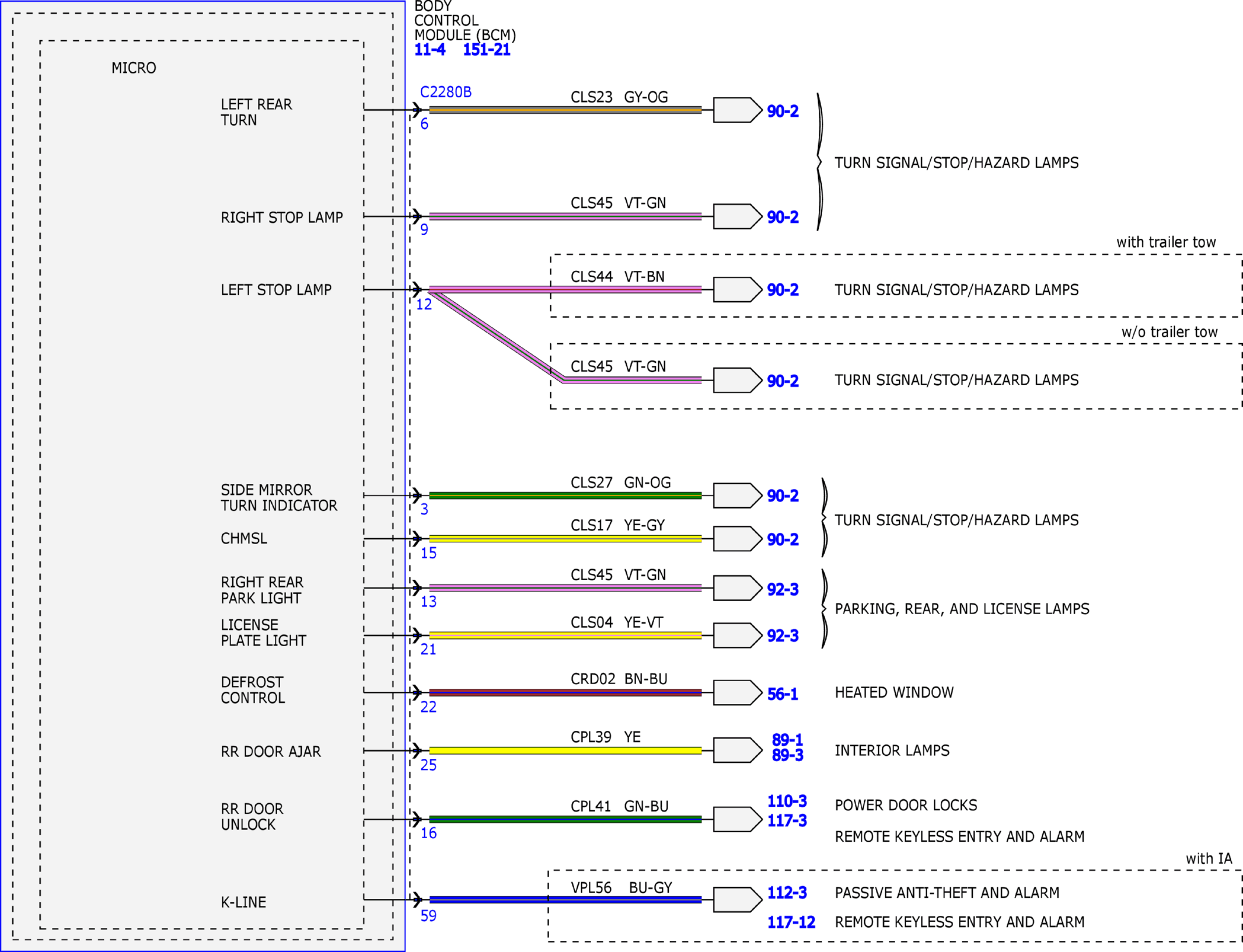

Fig 2: Power Distribution/BCM System Wiring Diagrams (2 of 39)
Courtesy of FORD MOTOR COMPANY

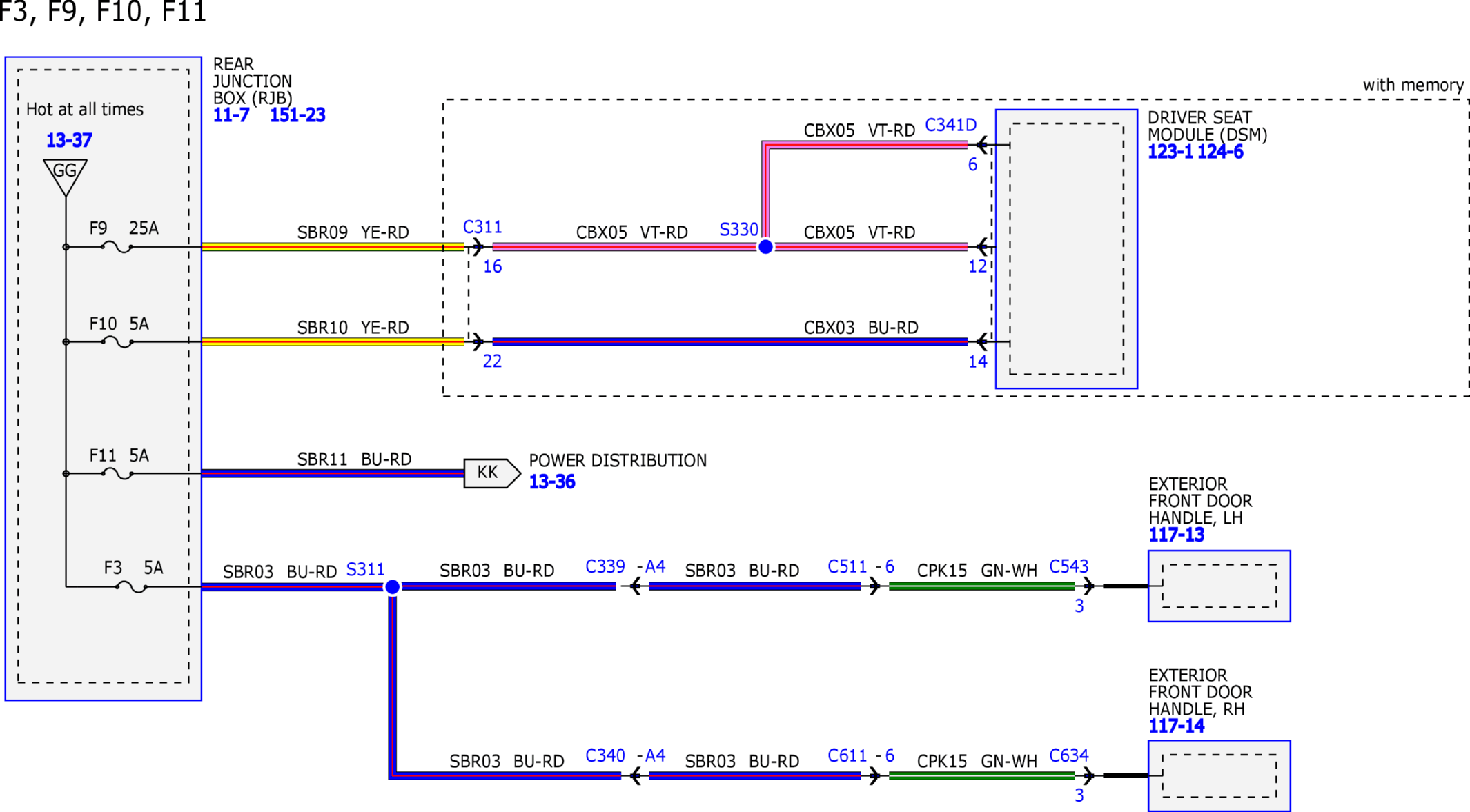

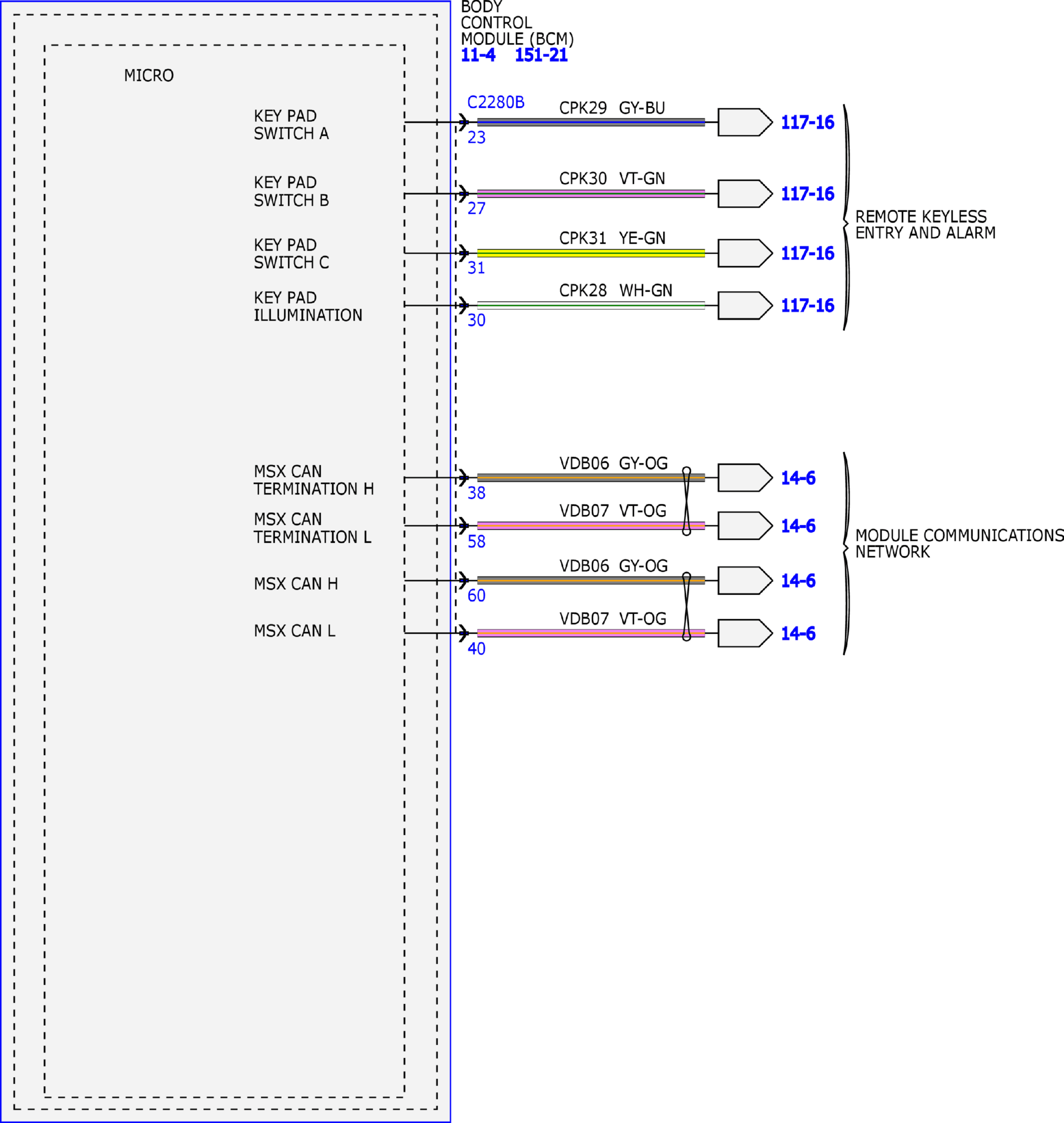

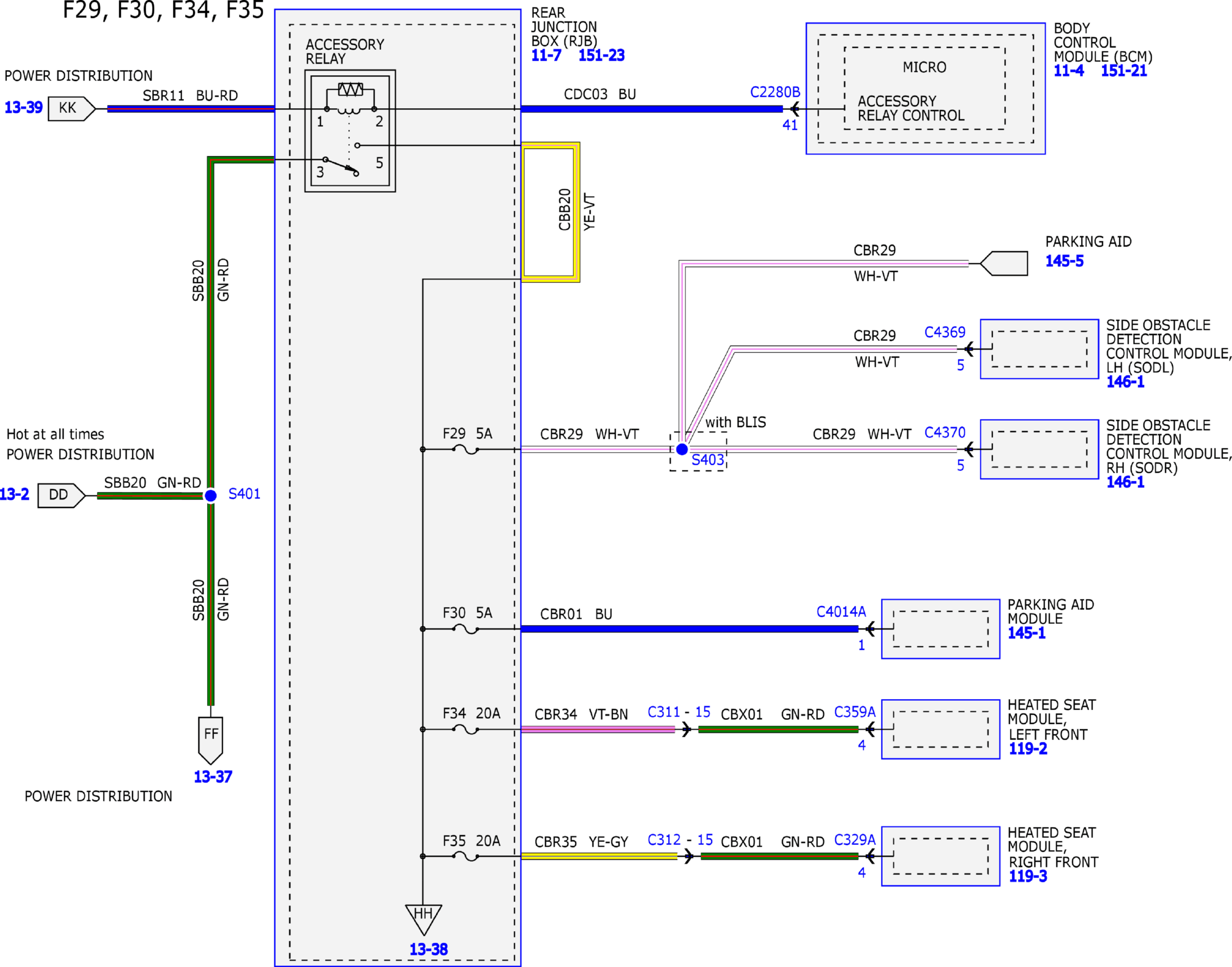

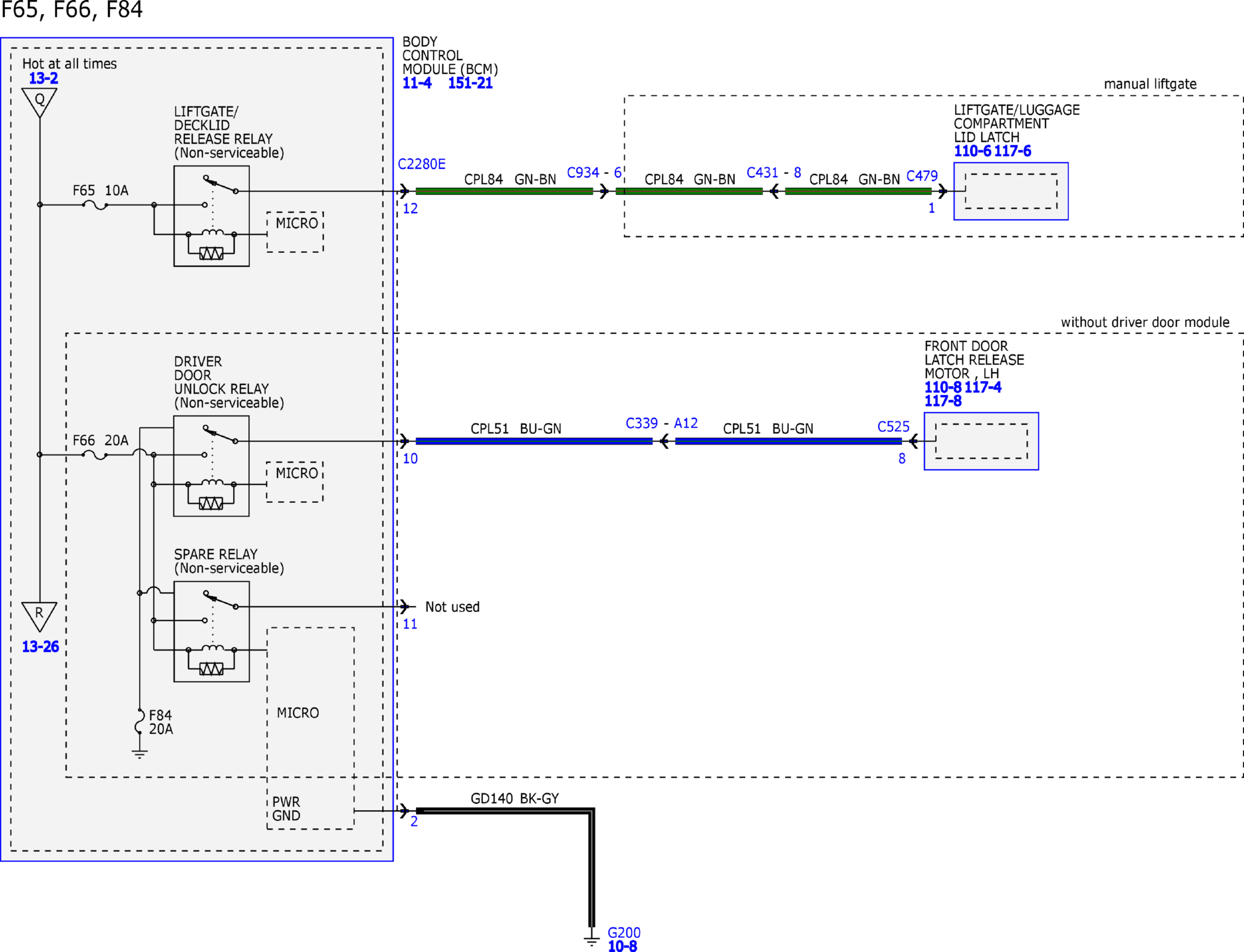

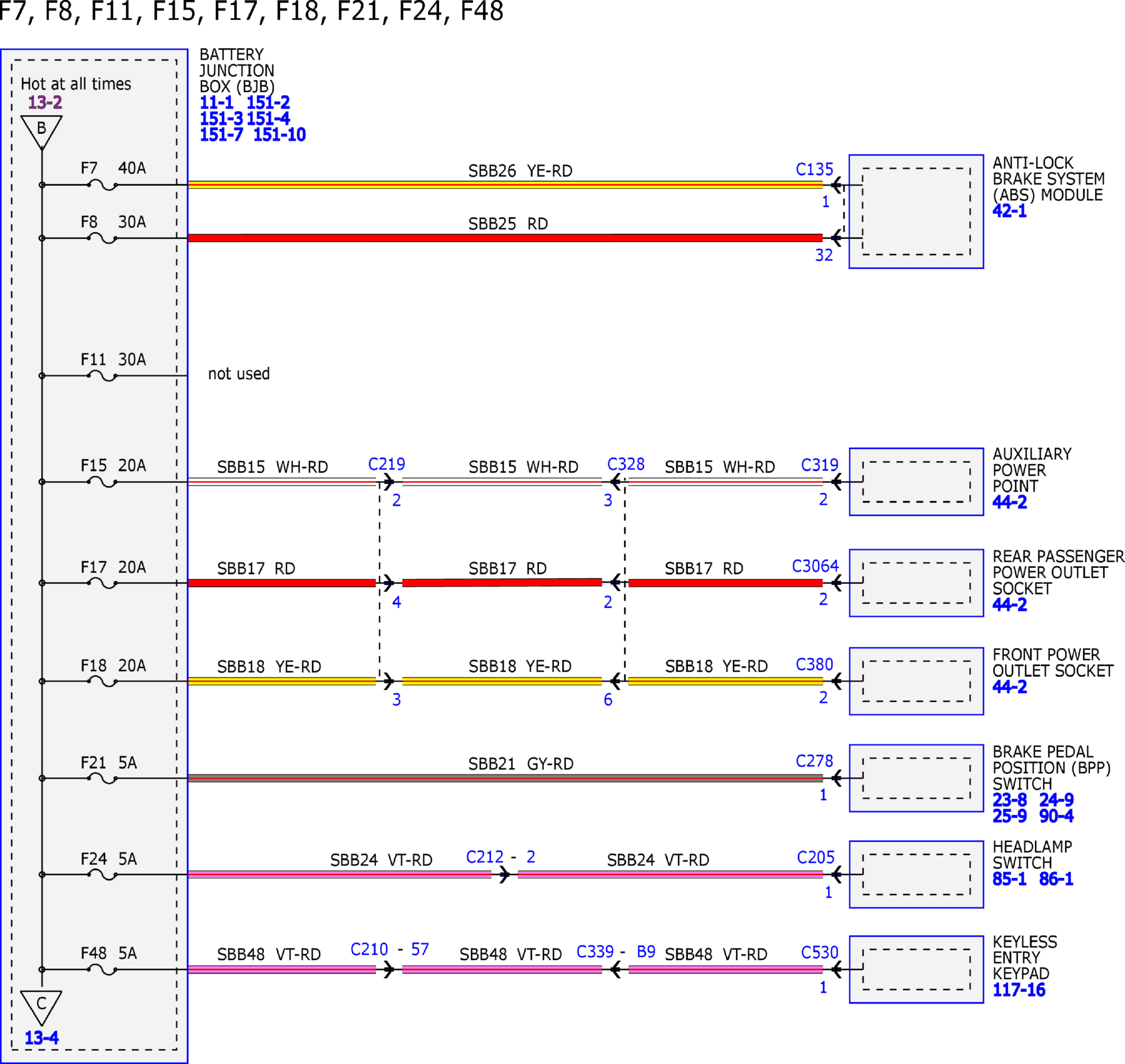

Fig 3: Power Distribution/BCM System Wiring Diagrams (3 of 39)
Courtesy of FORD MOTOR COMPANY

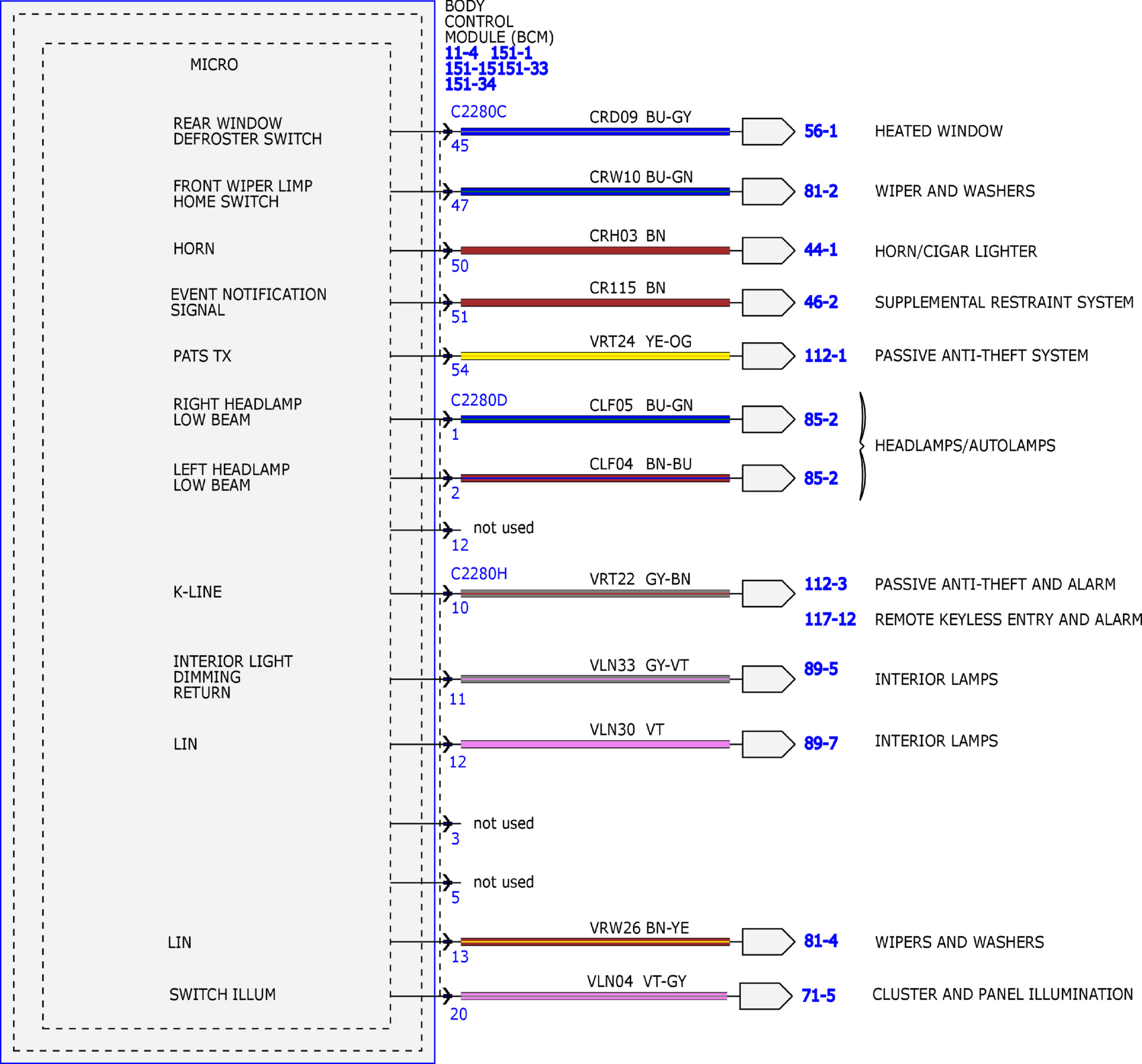

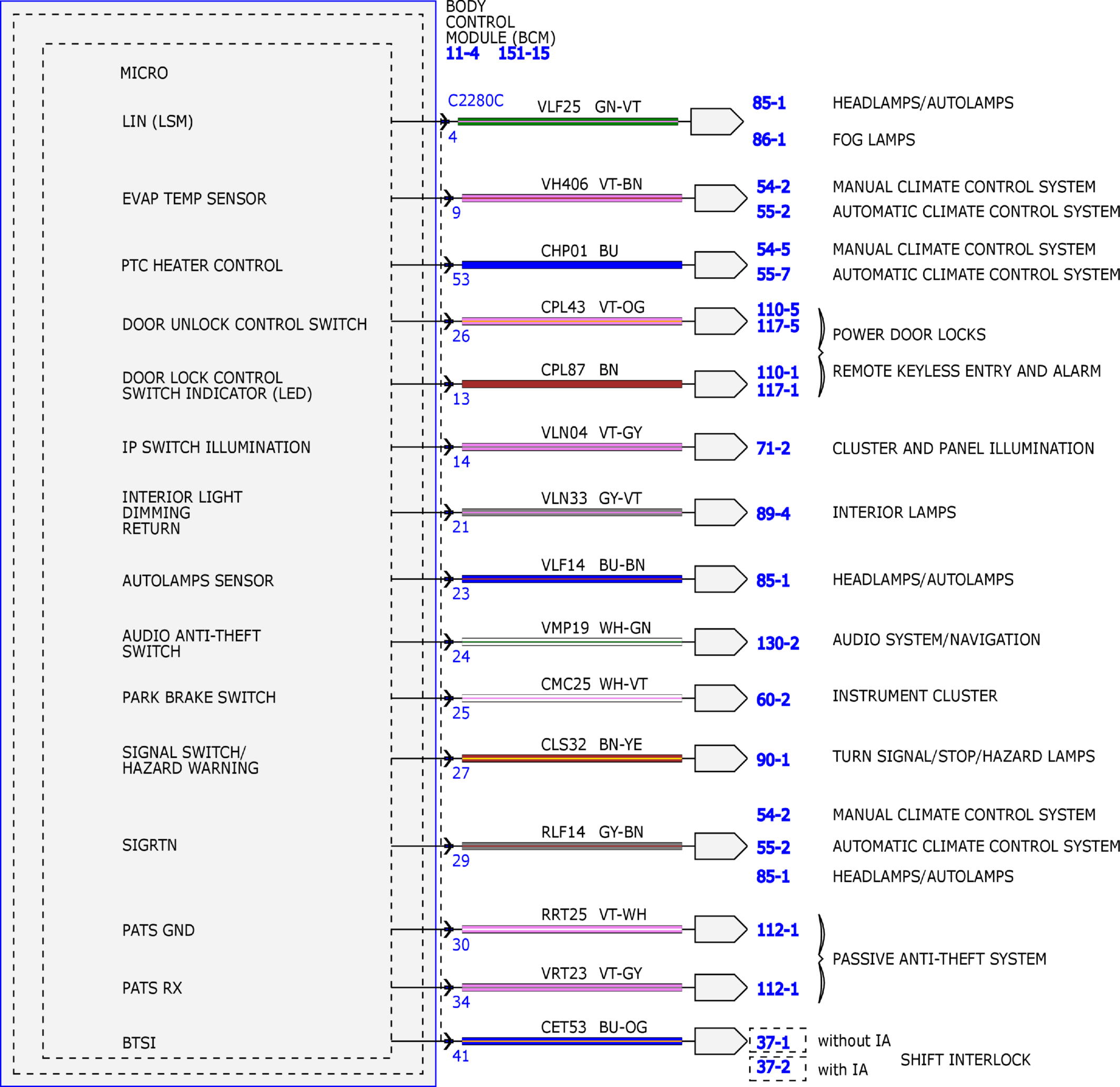

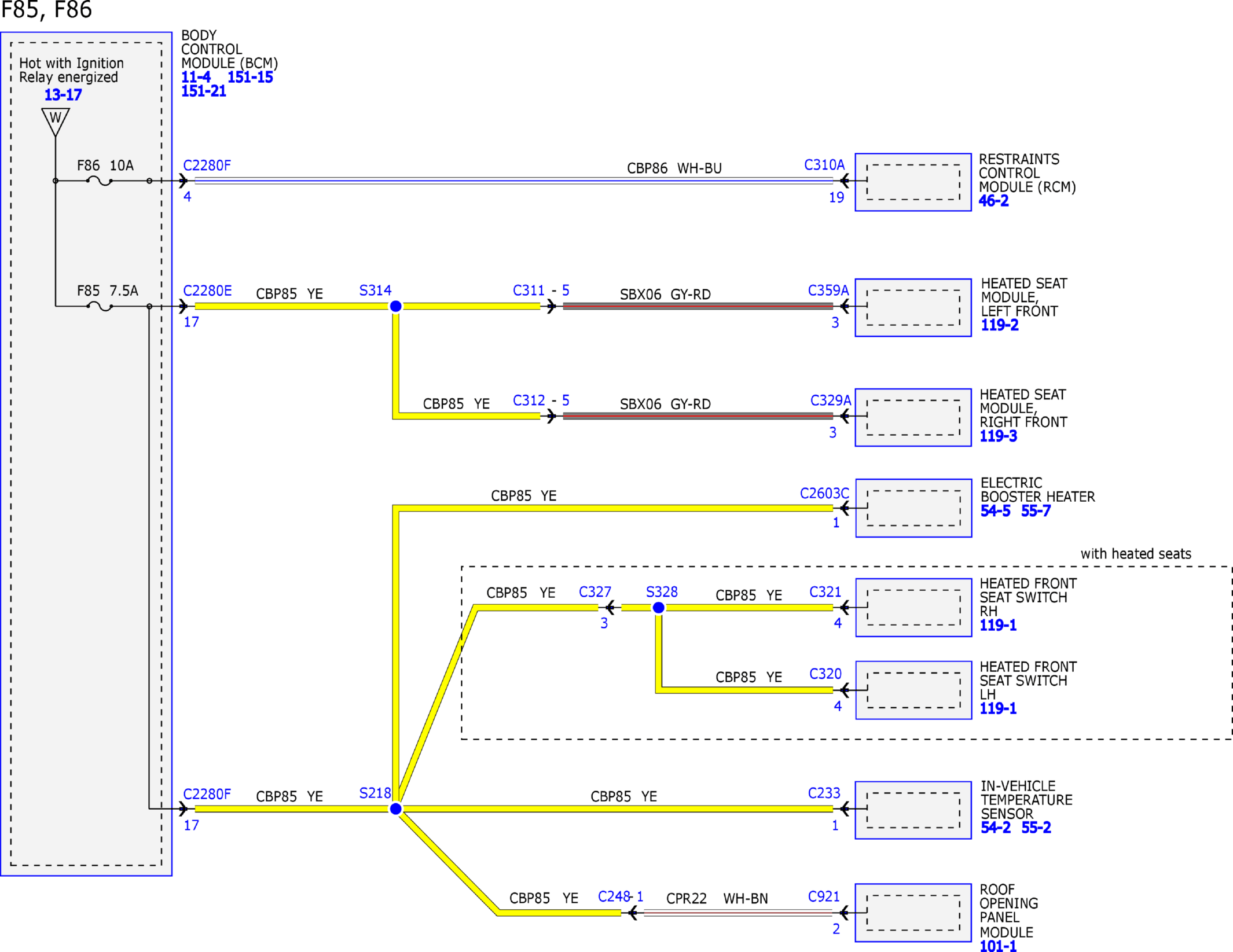

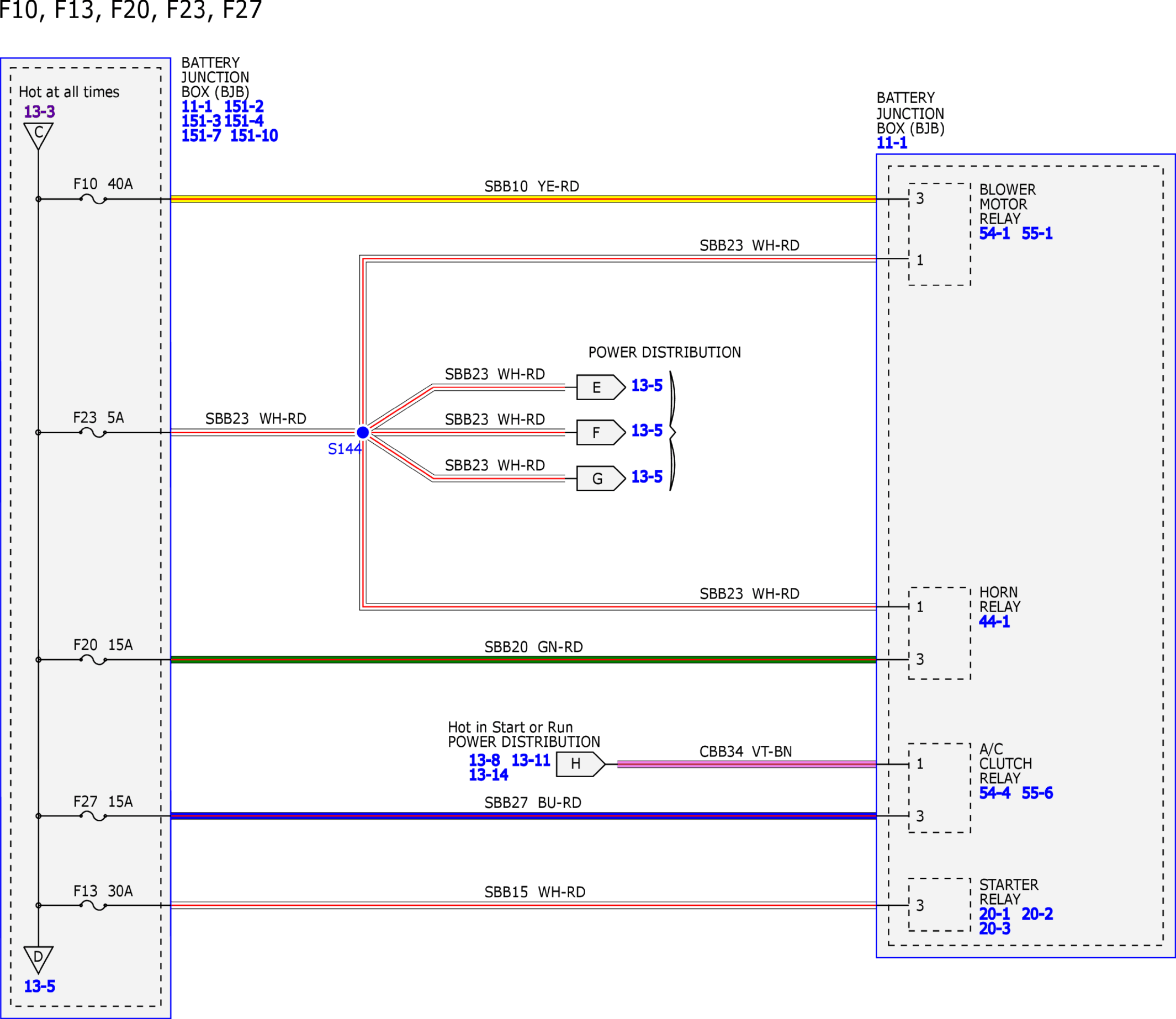

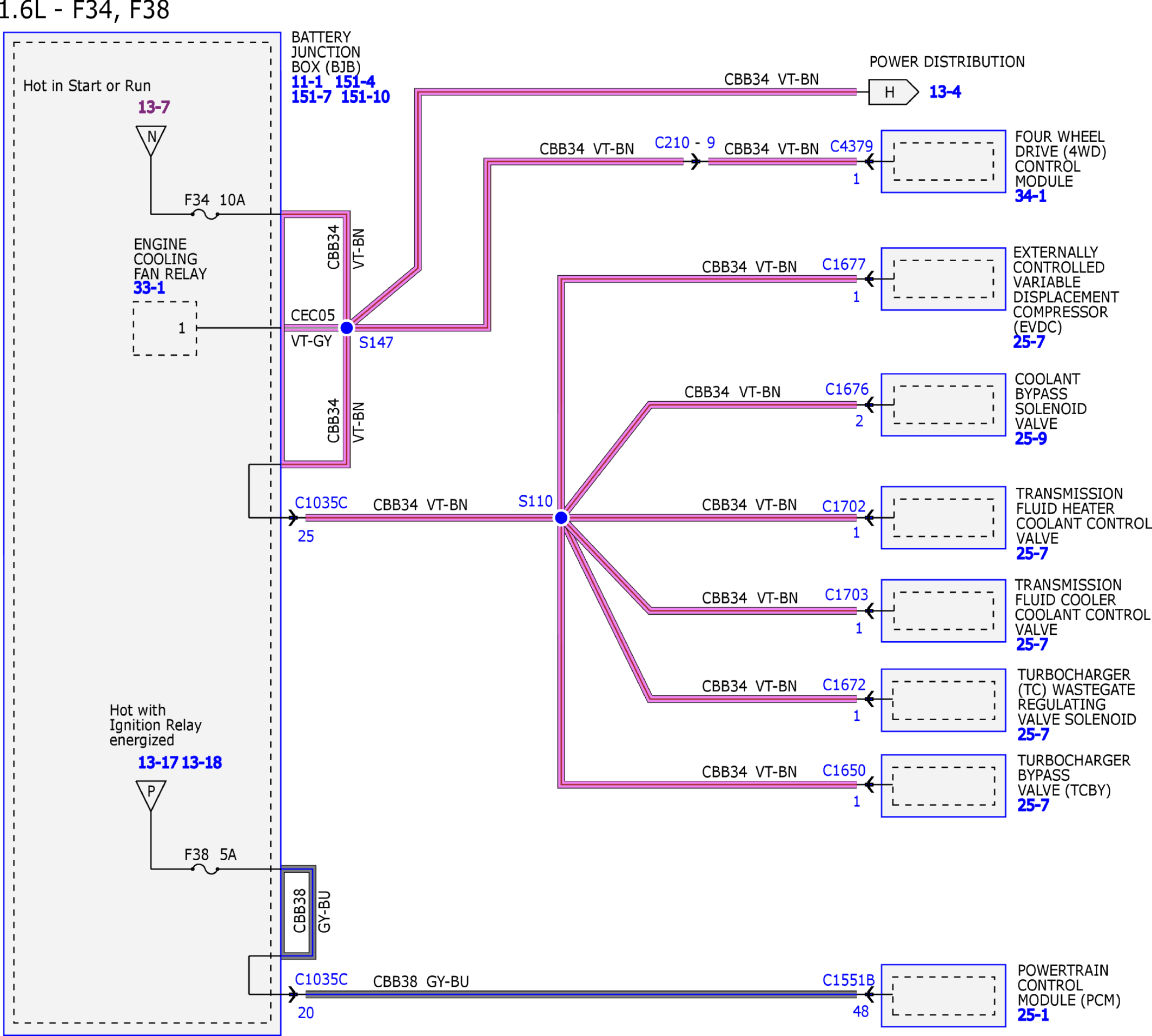

Fig 4: Power Distribution/BCM System Wiring Diagrams (4 of 39)
Courtesy of FORD MOTOR COMPANY

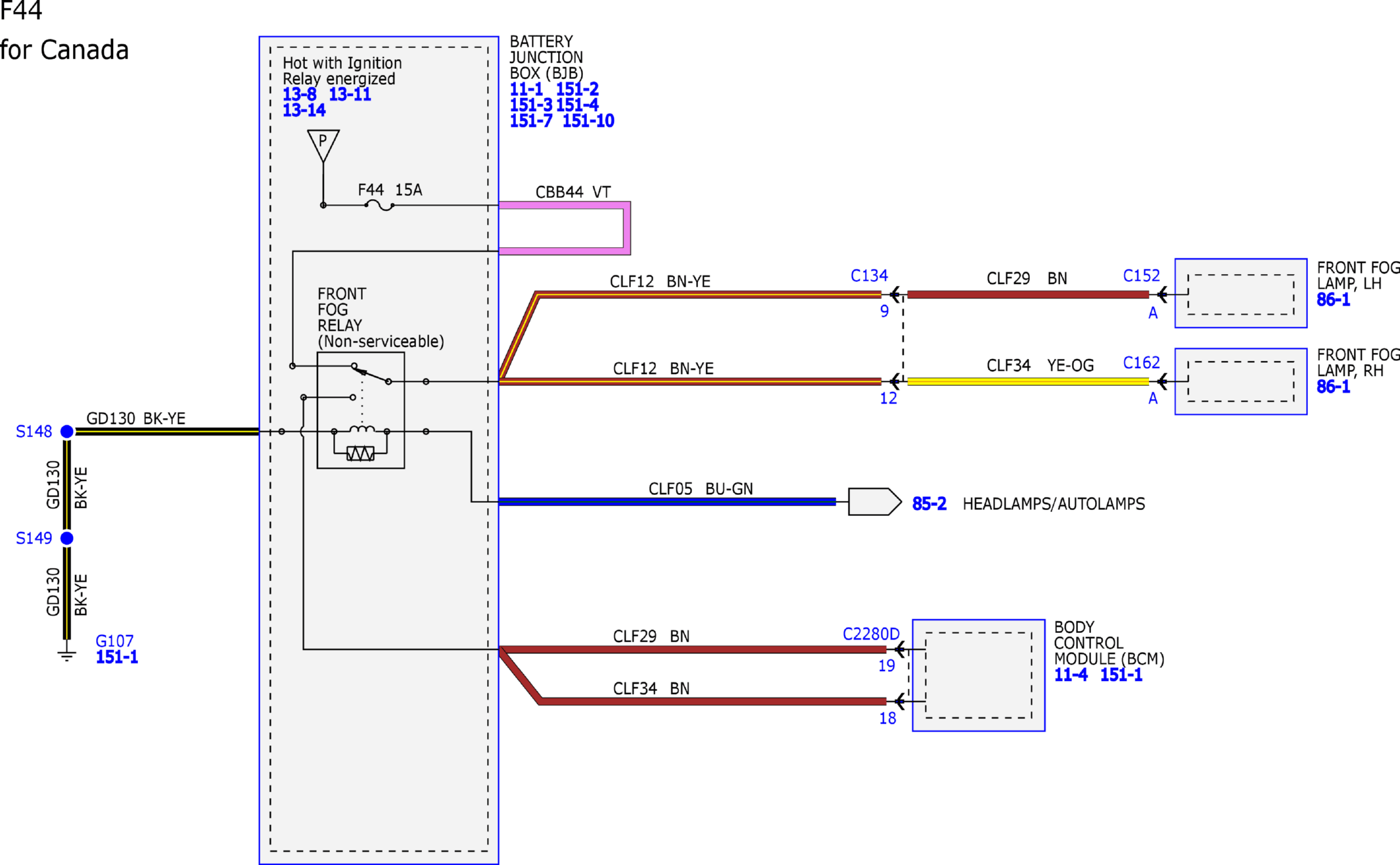

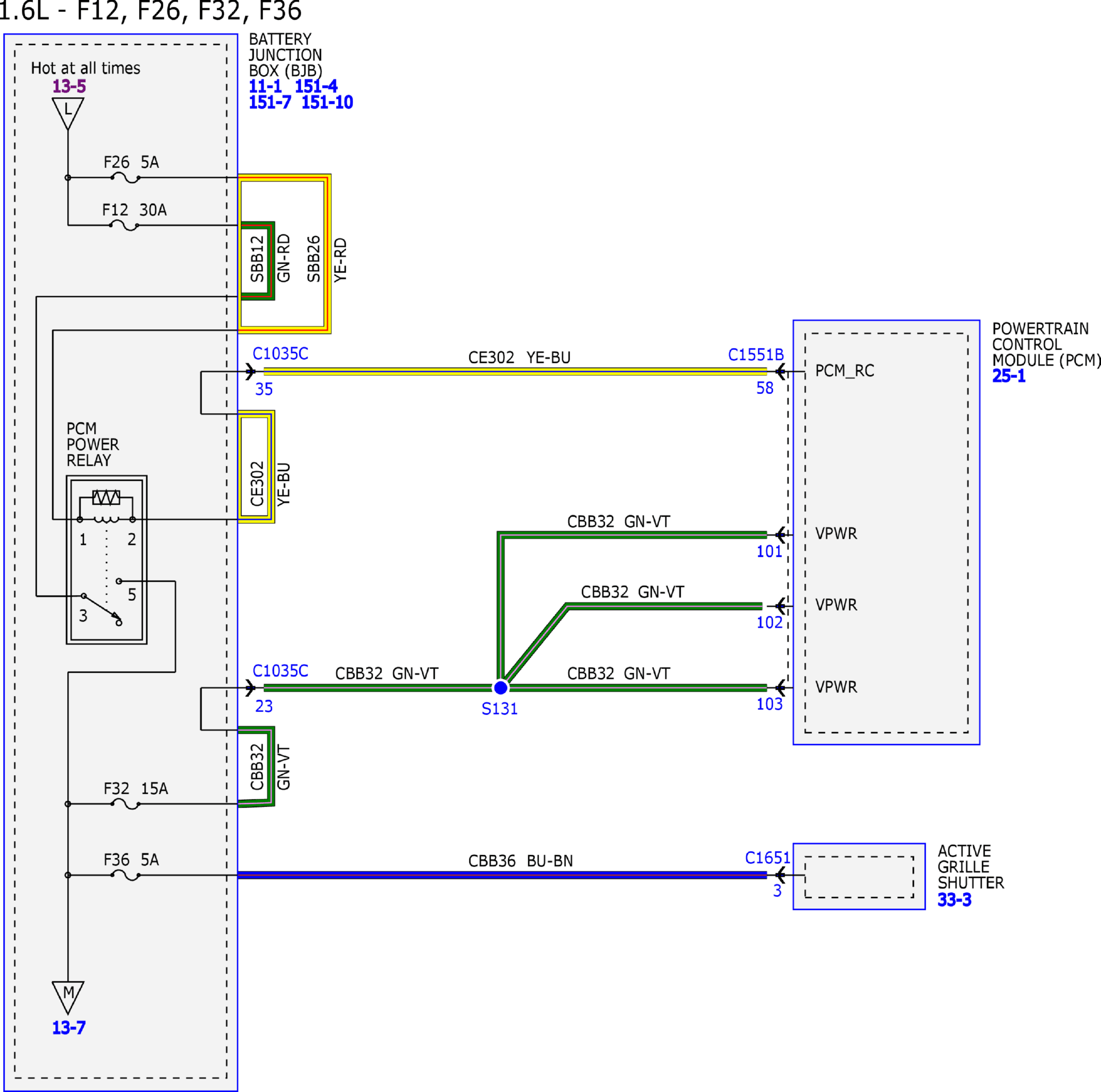

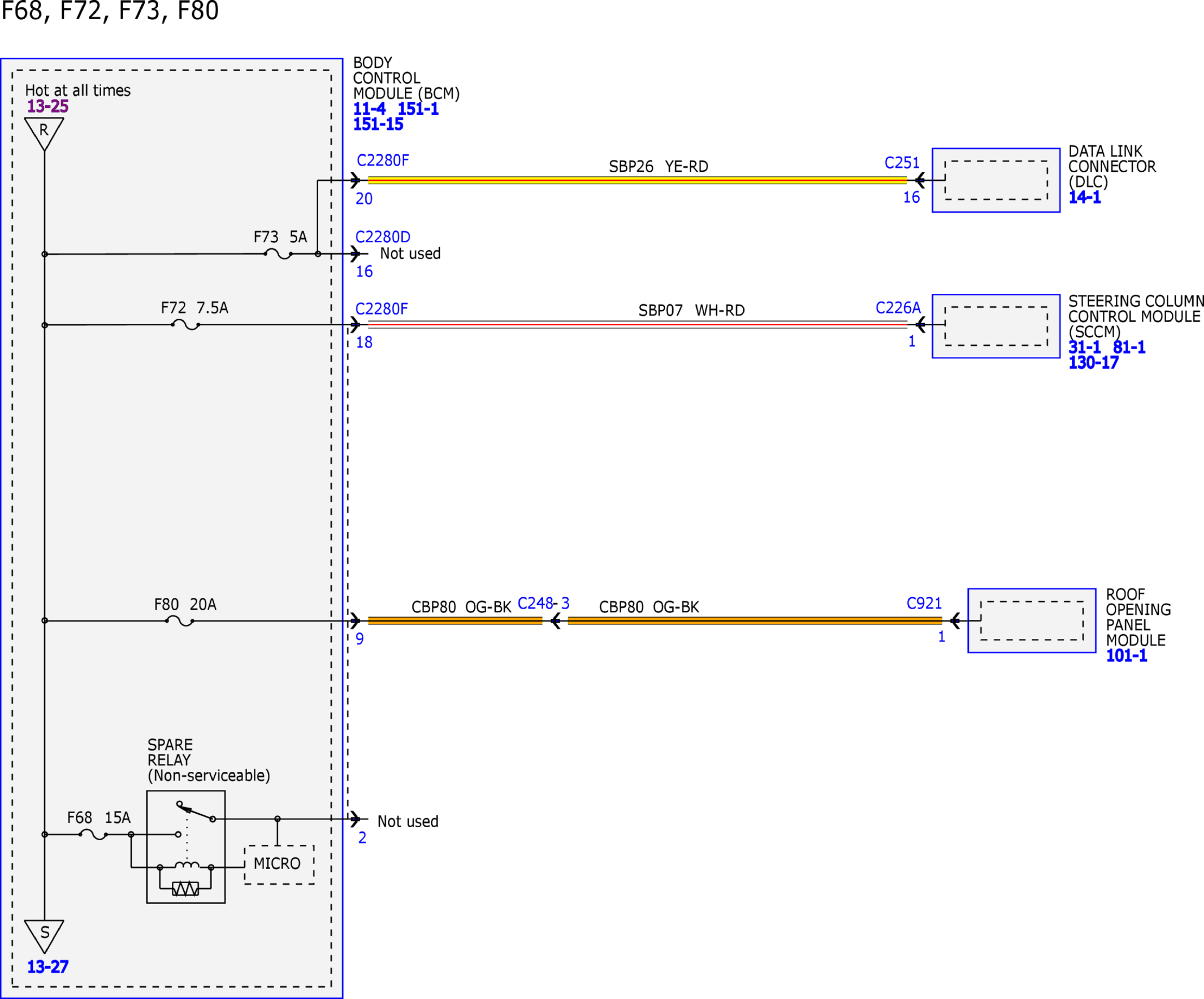

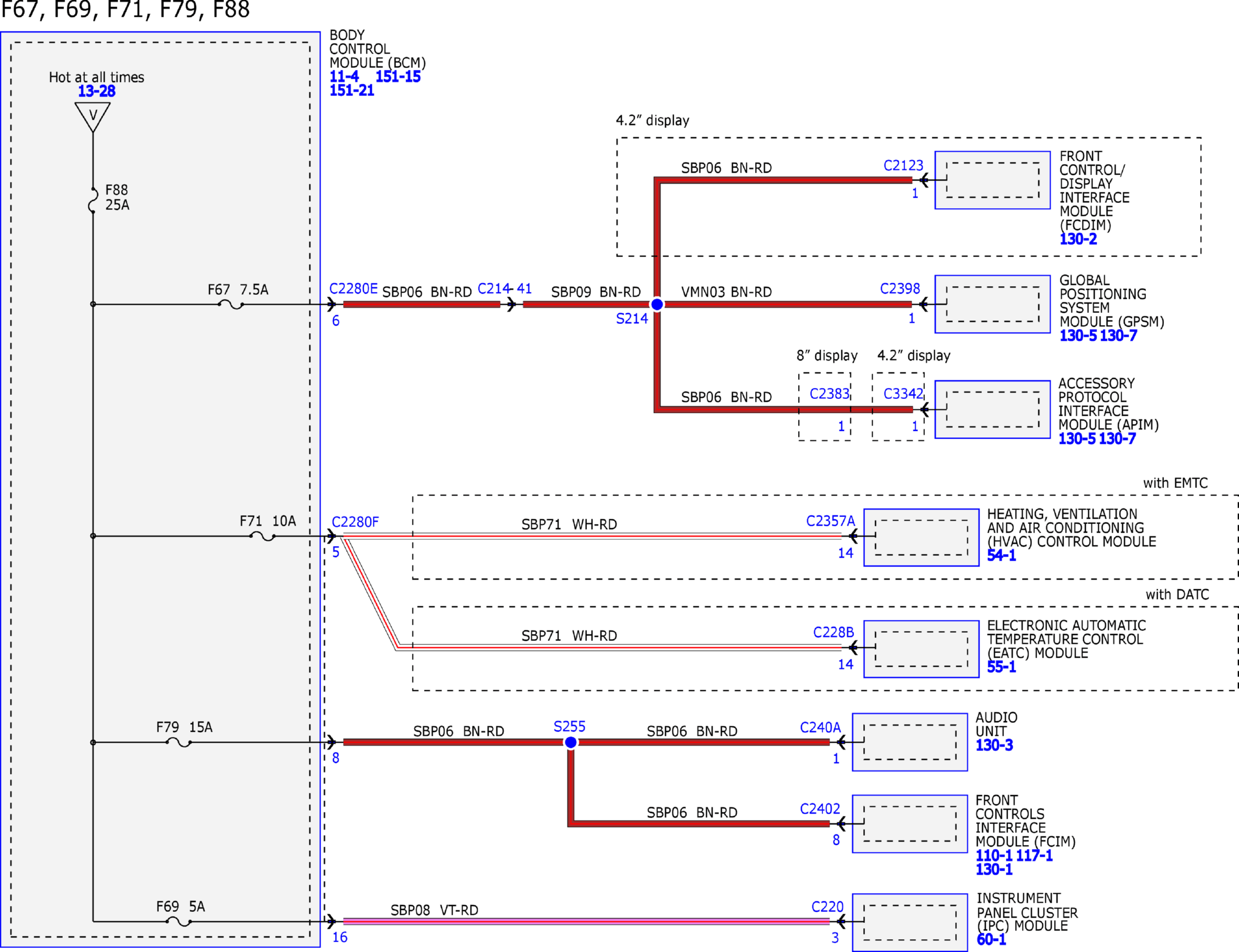

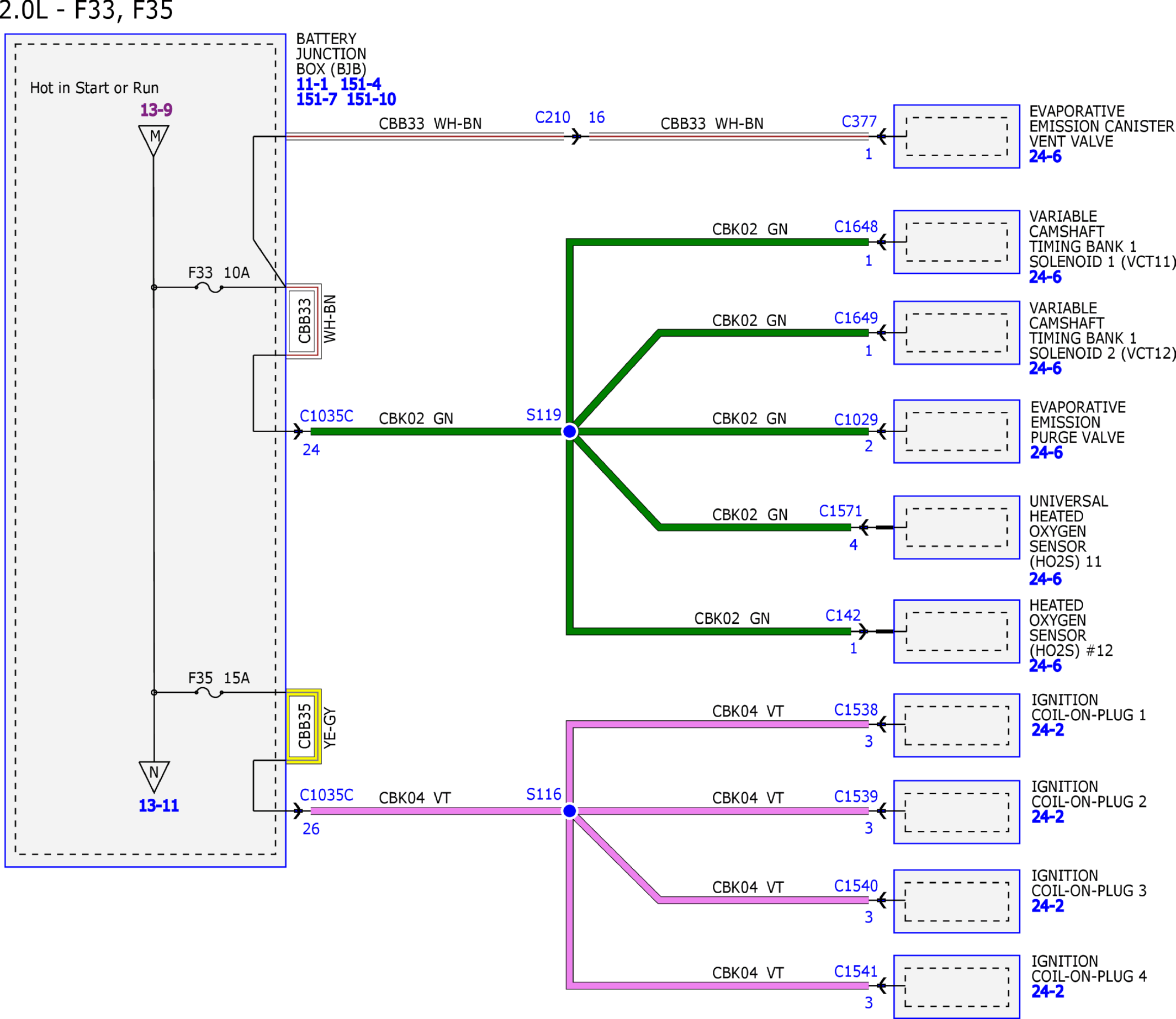

Fig 5: Power Distribution/BCM System Wiring Diagrams (5 of 39)
Courtesy of FORD MOTOR COMPANY

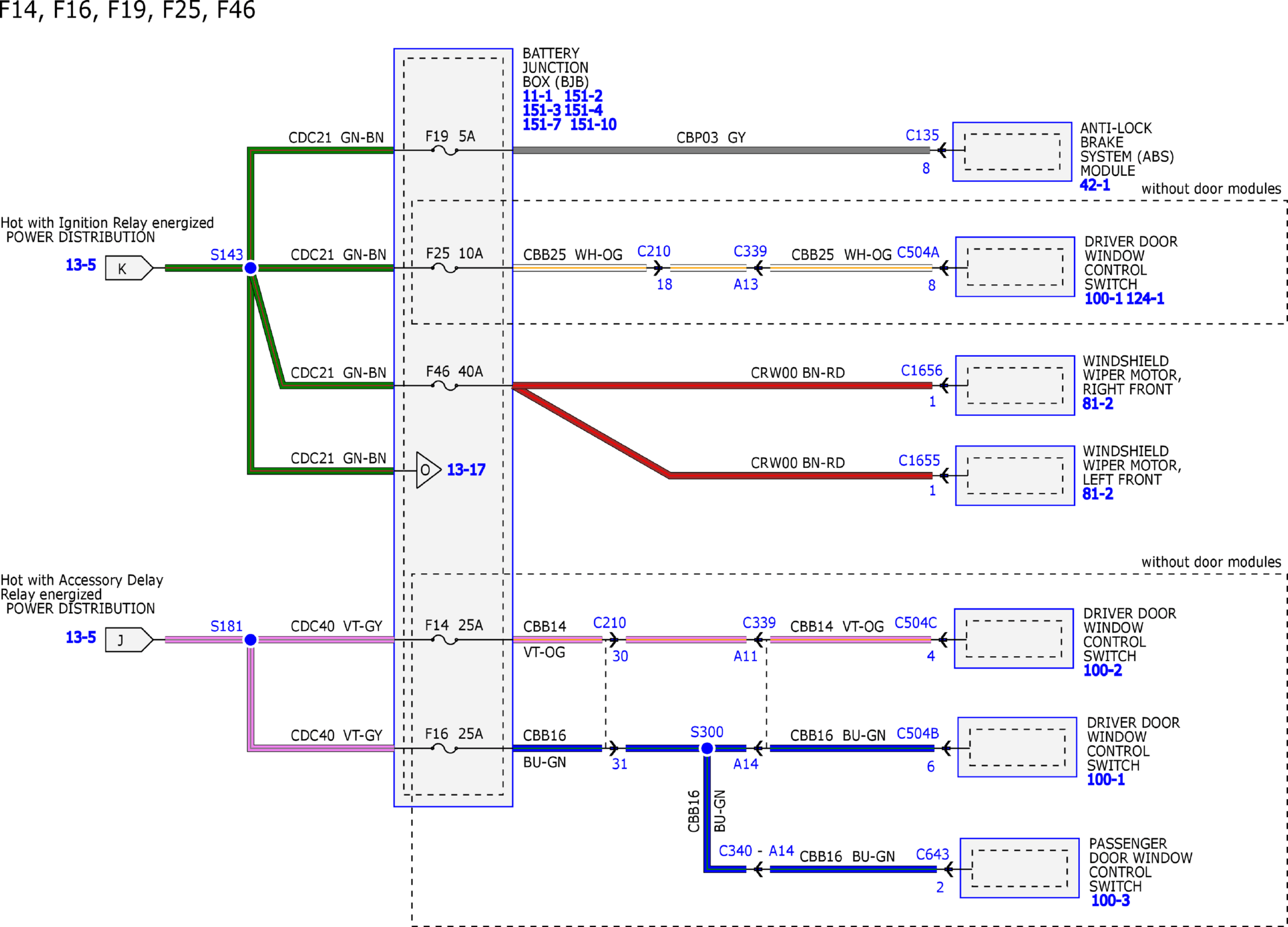

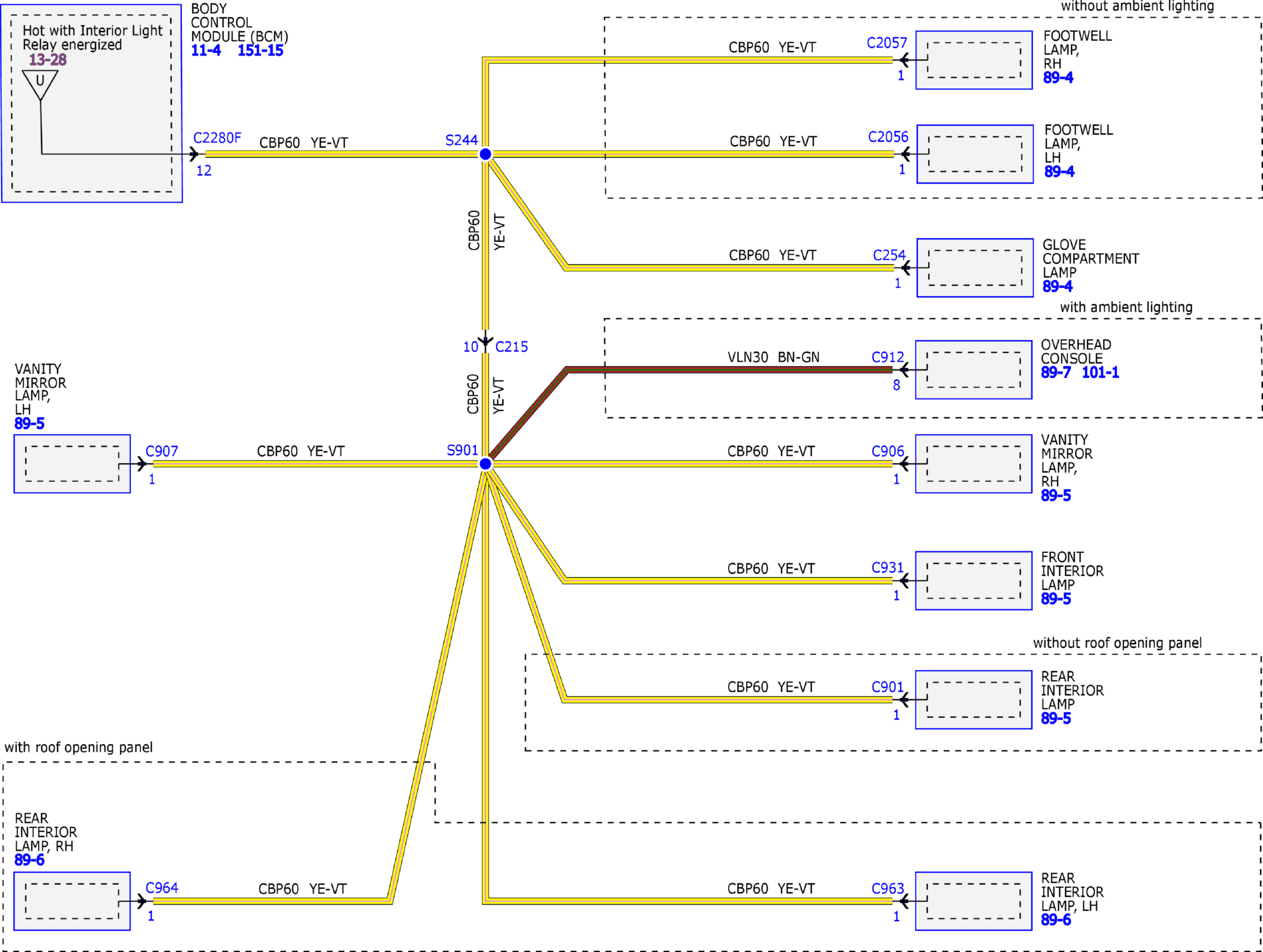

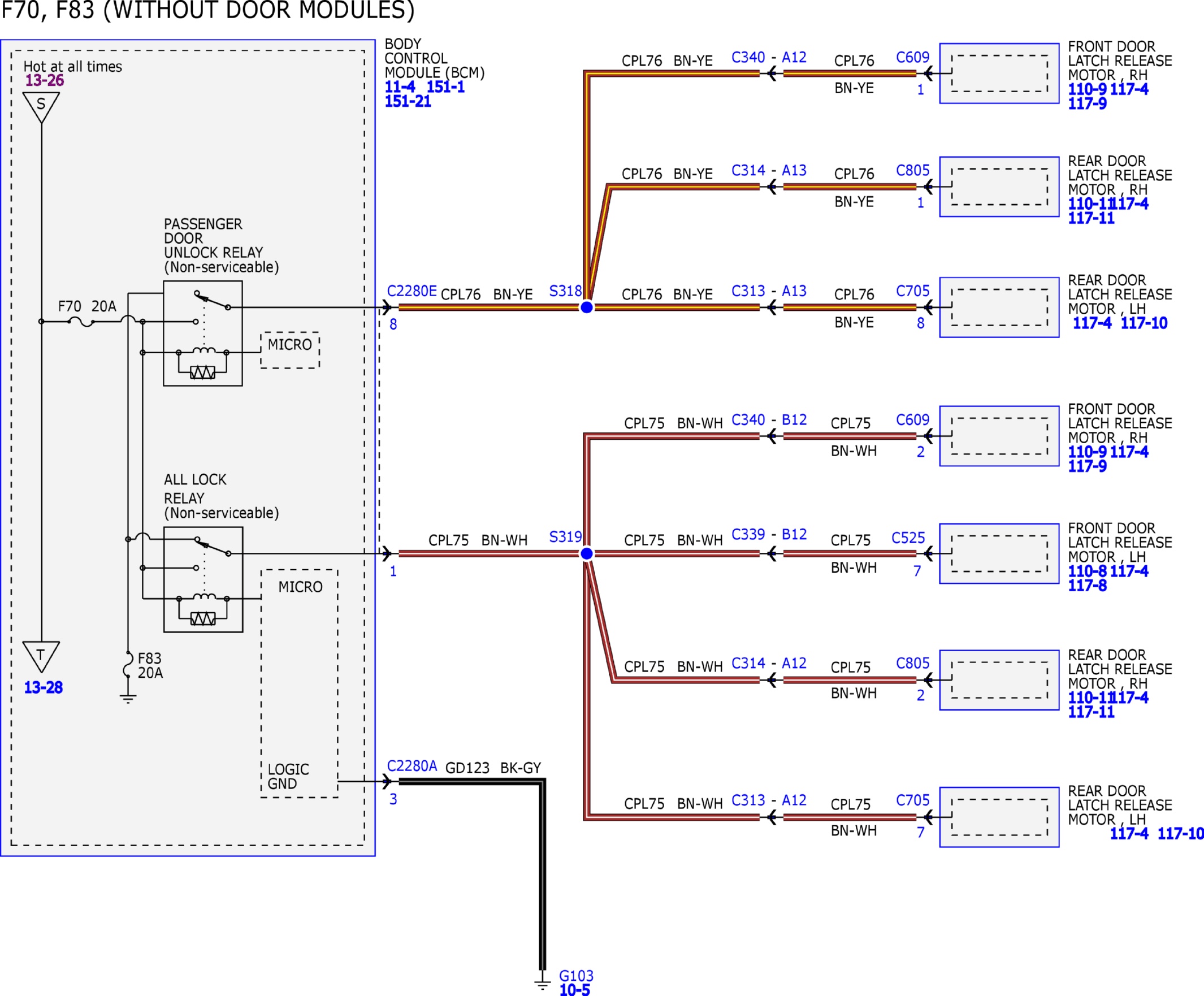

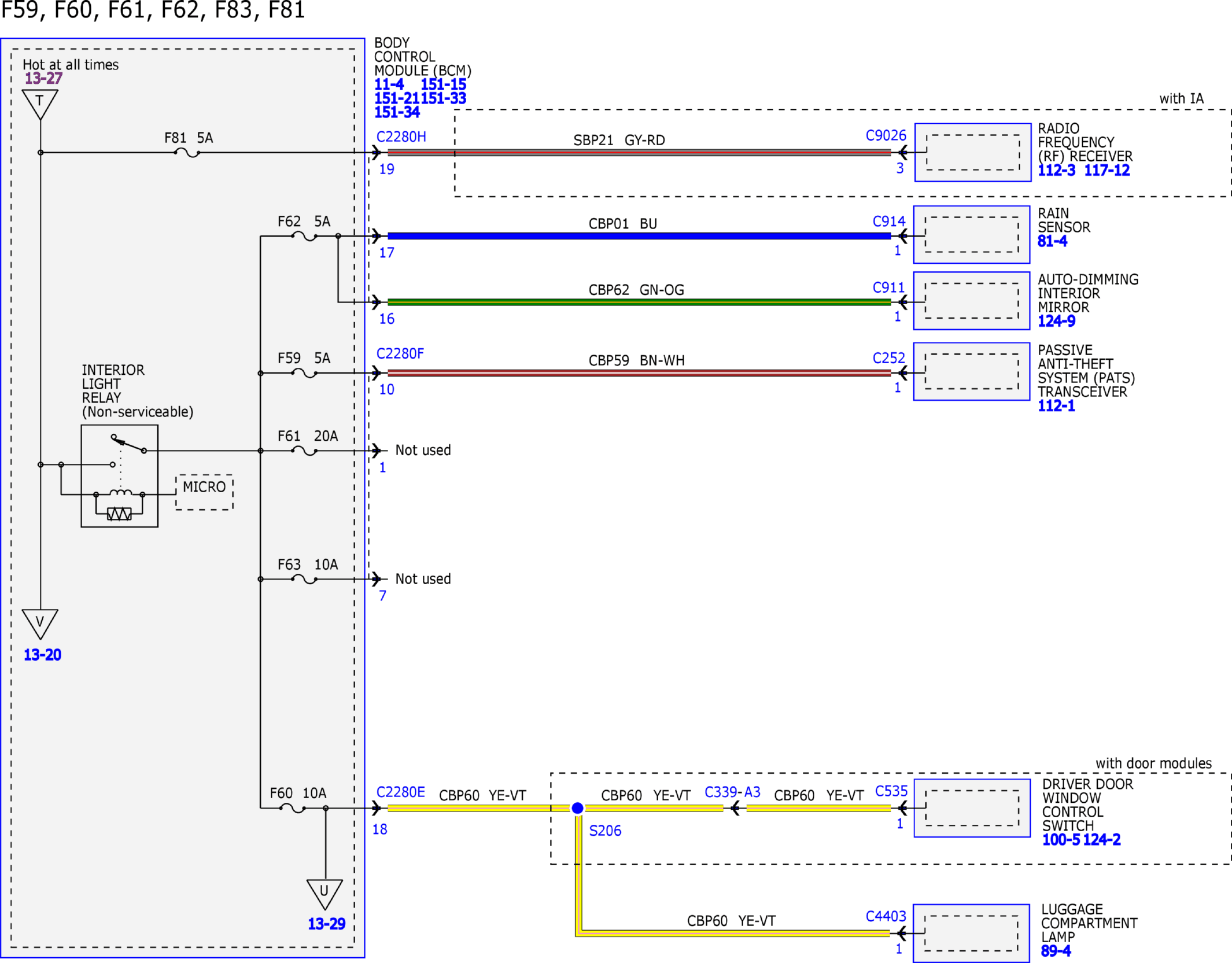

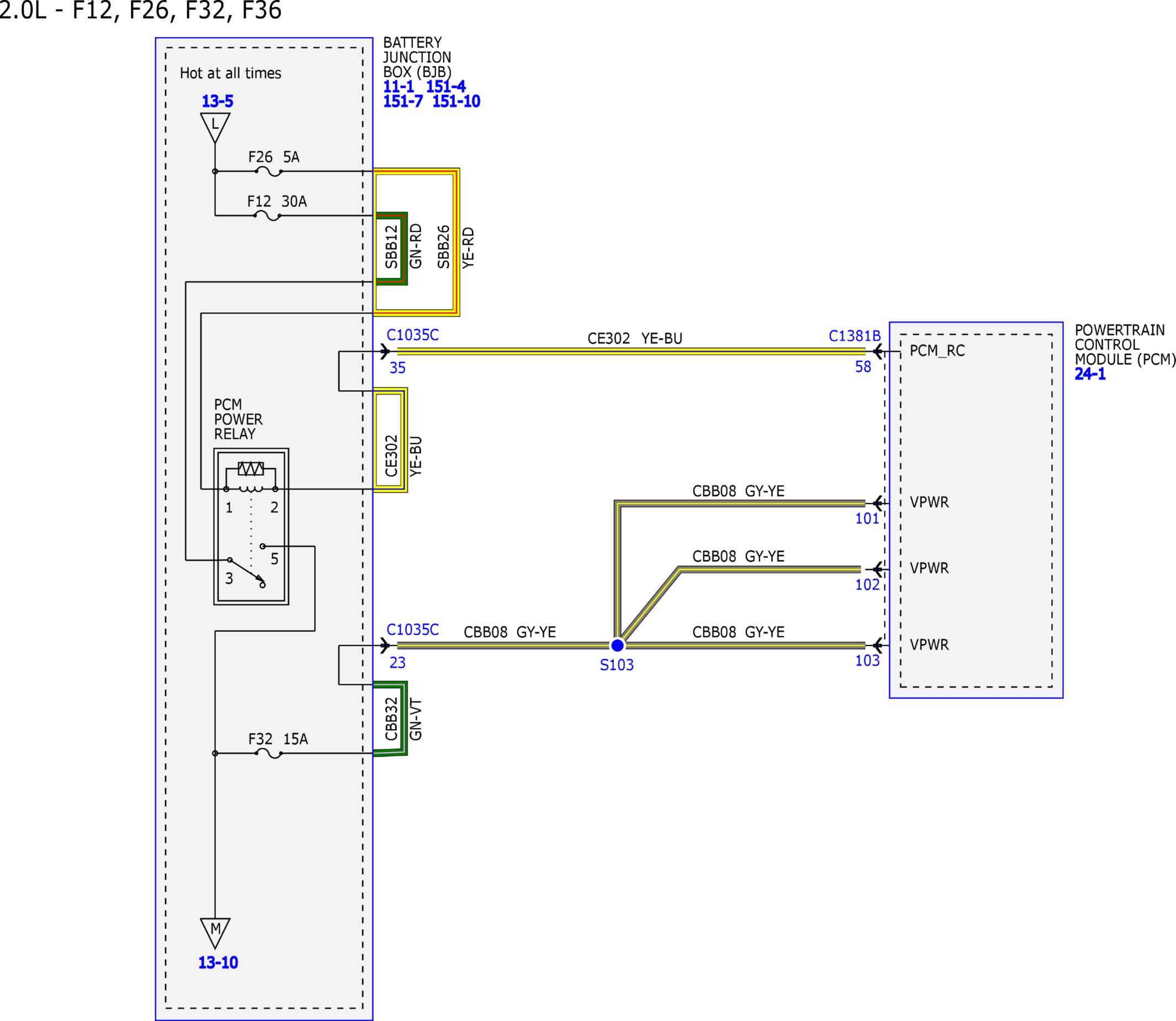

Fig 6: Power Distribution/BCM System Wiring Diagrams (6 of 39)
Courtesy of FORD MOTOR COMPANY

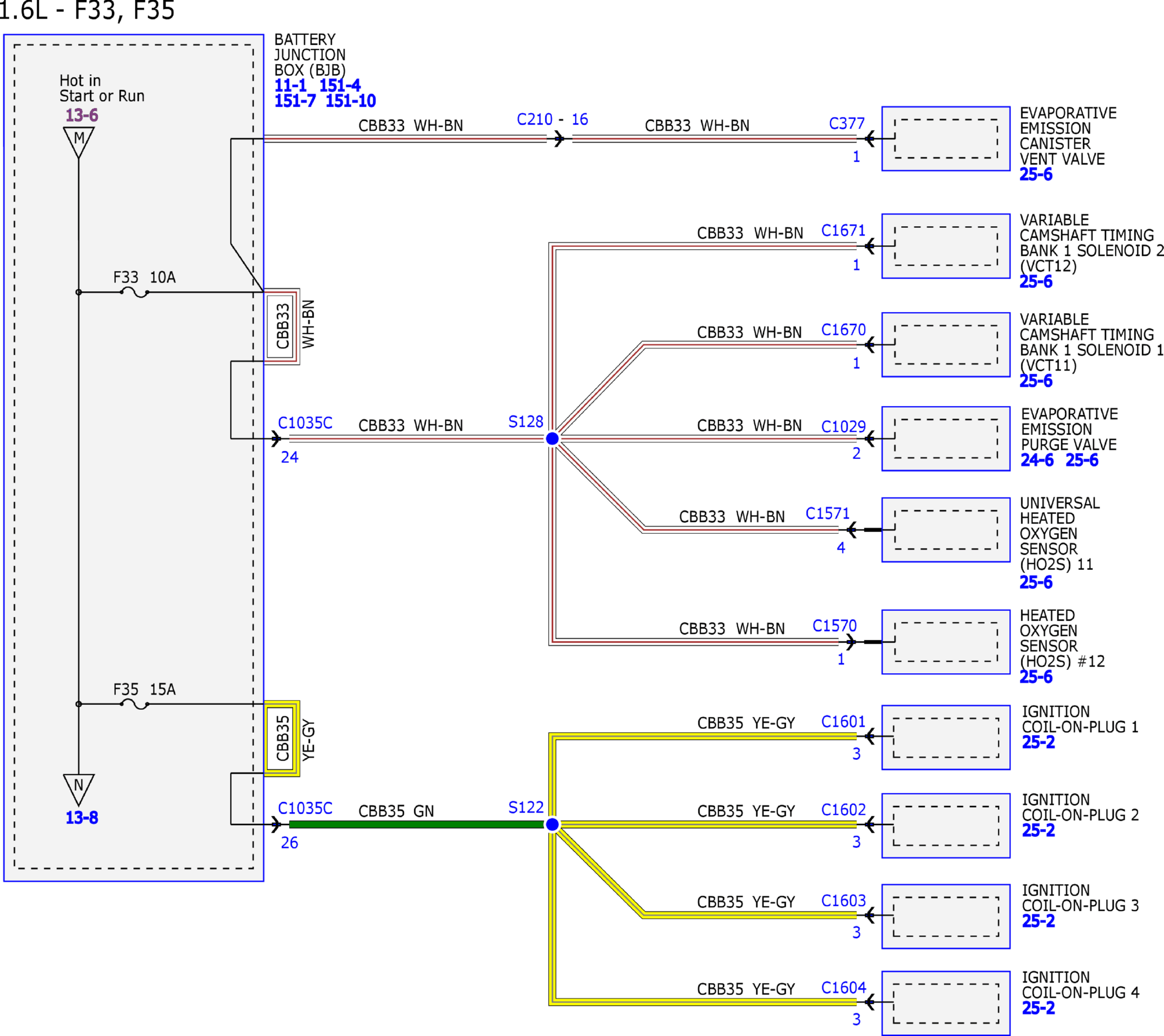

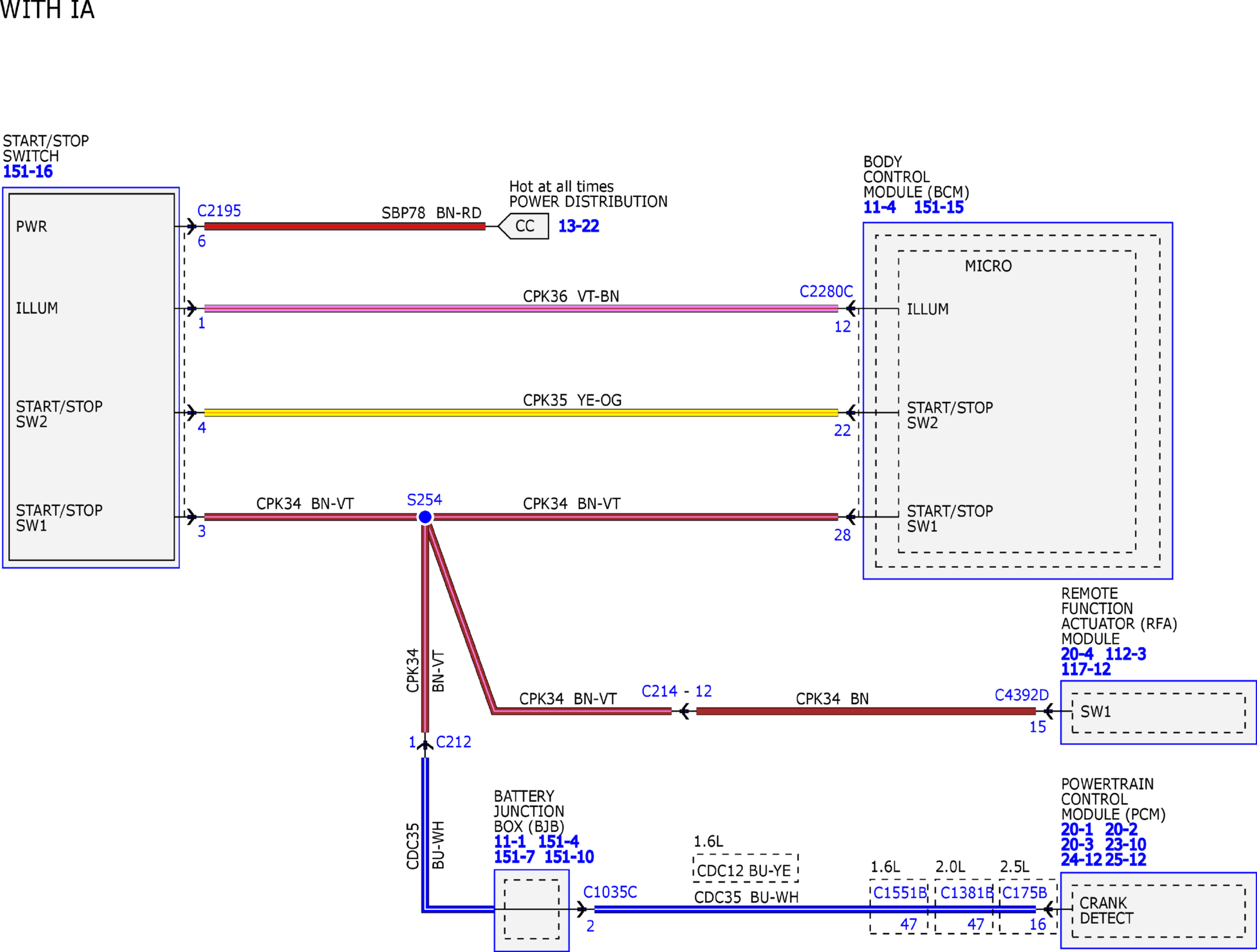

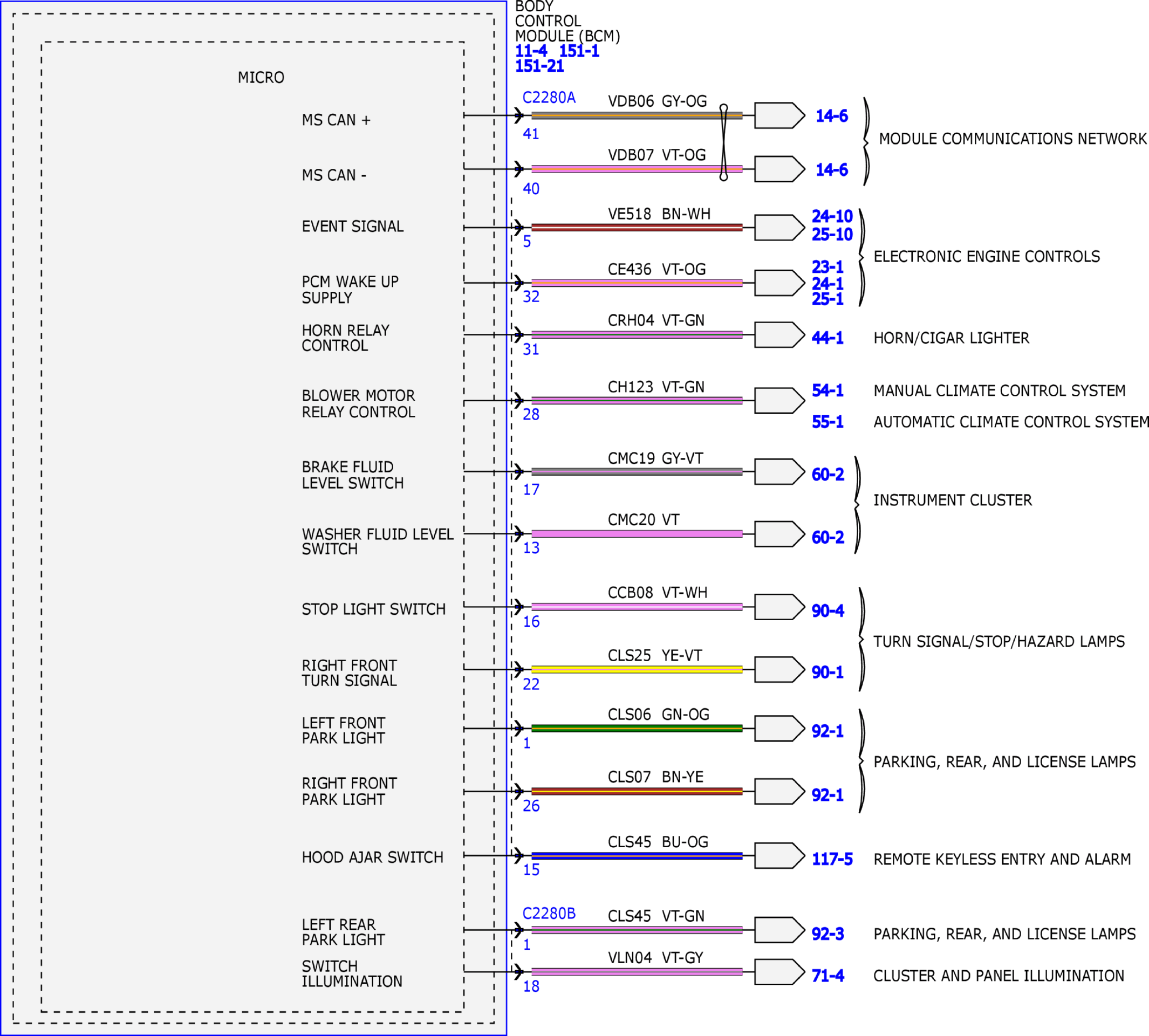

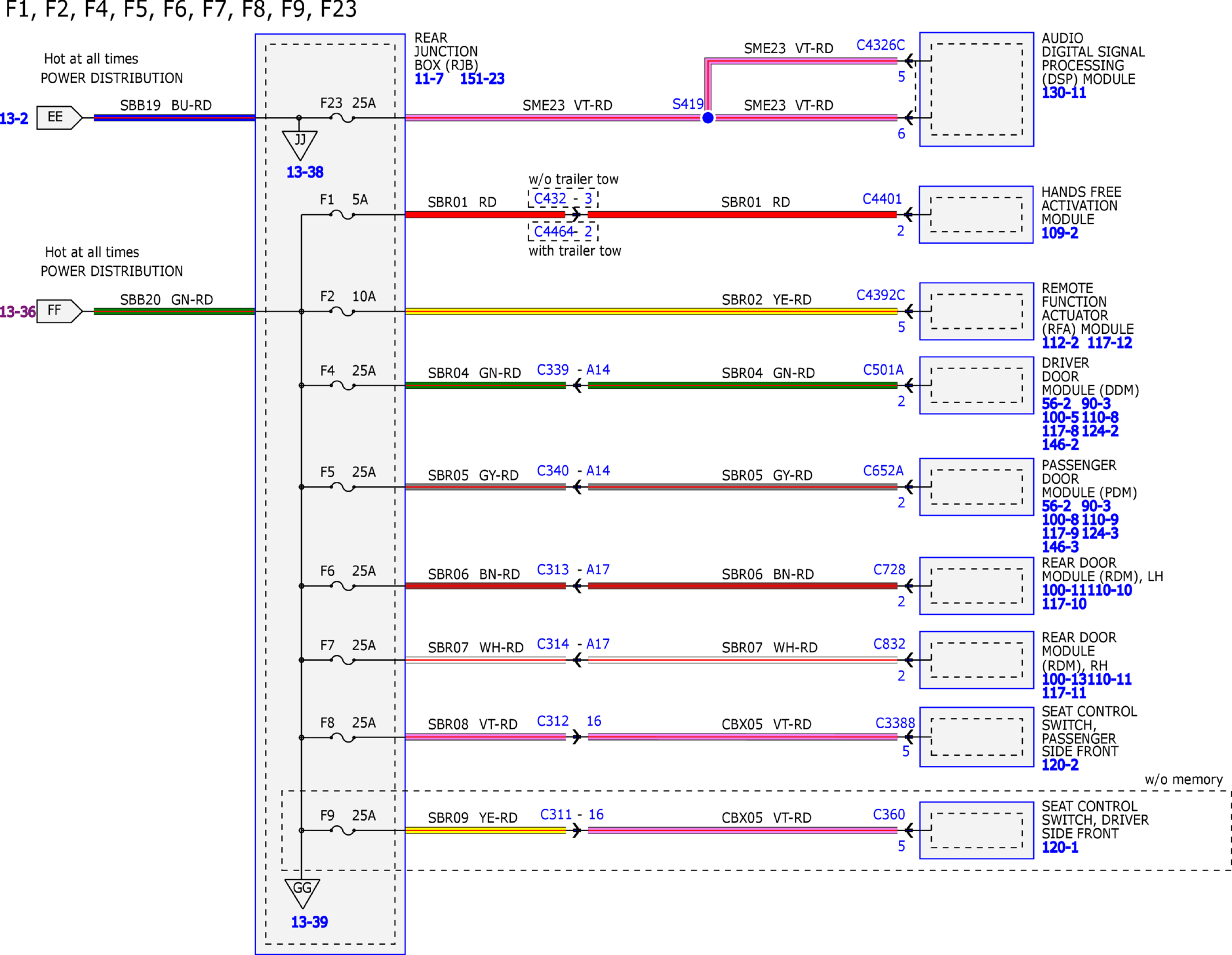

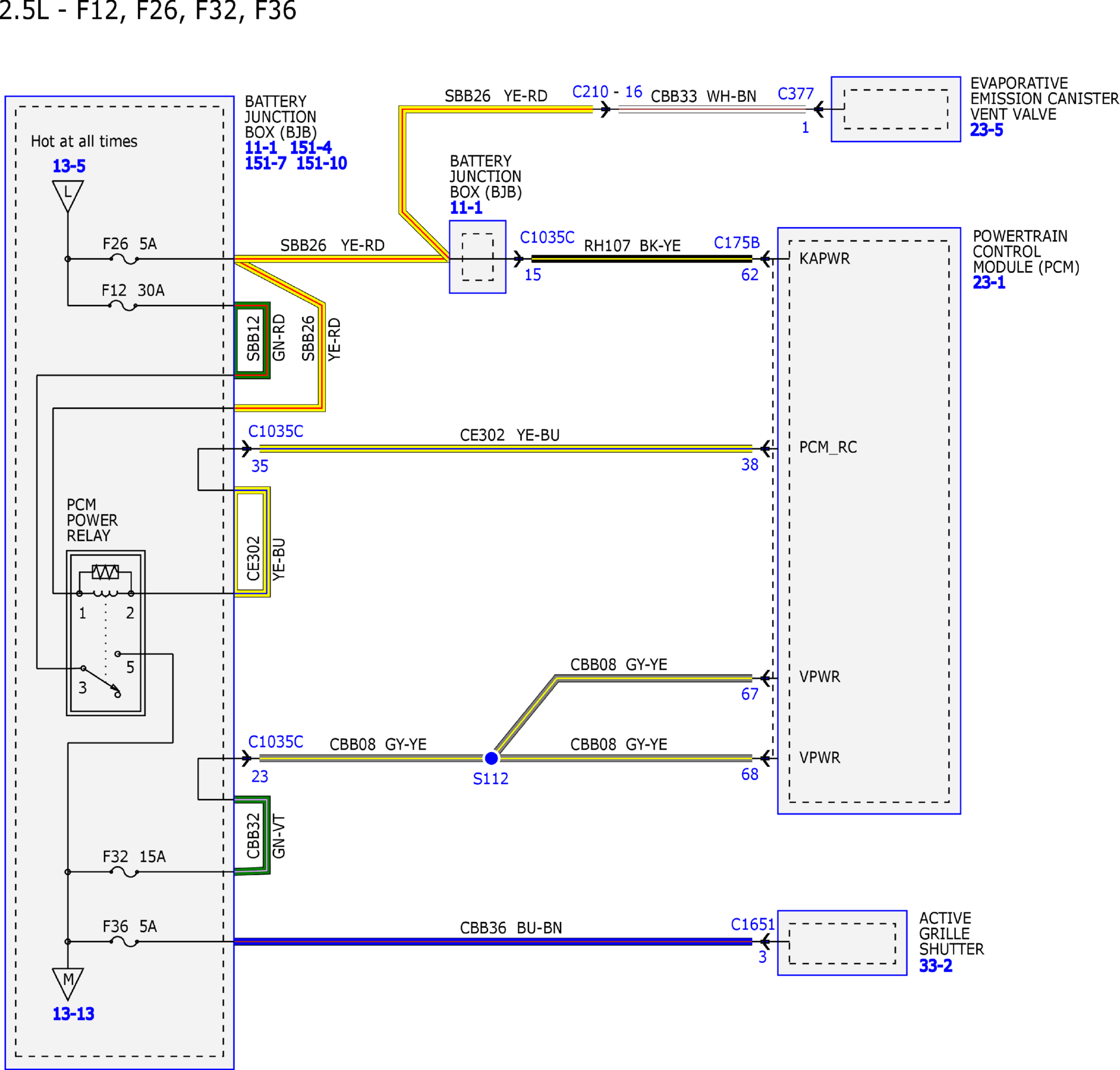

Fig 7: Power Distribution/BCM System Wiring Diagrams (7 of 39)
Courtesy of FORD MOTOR COMPANY

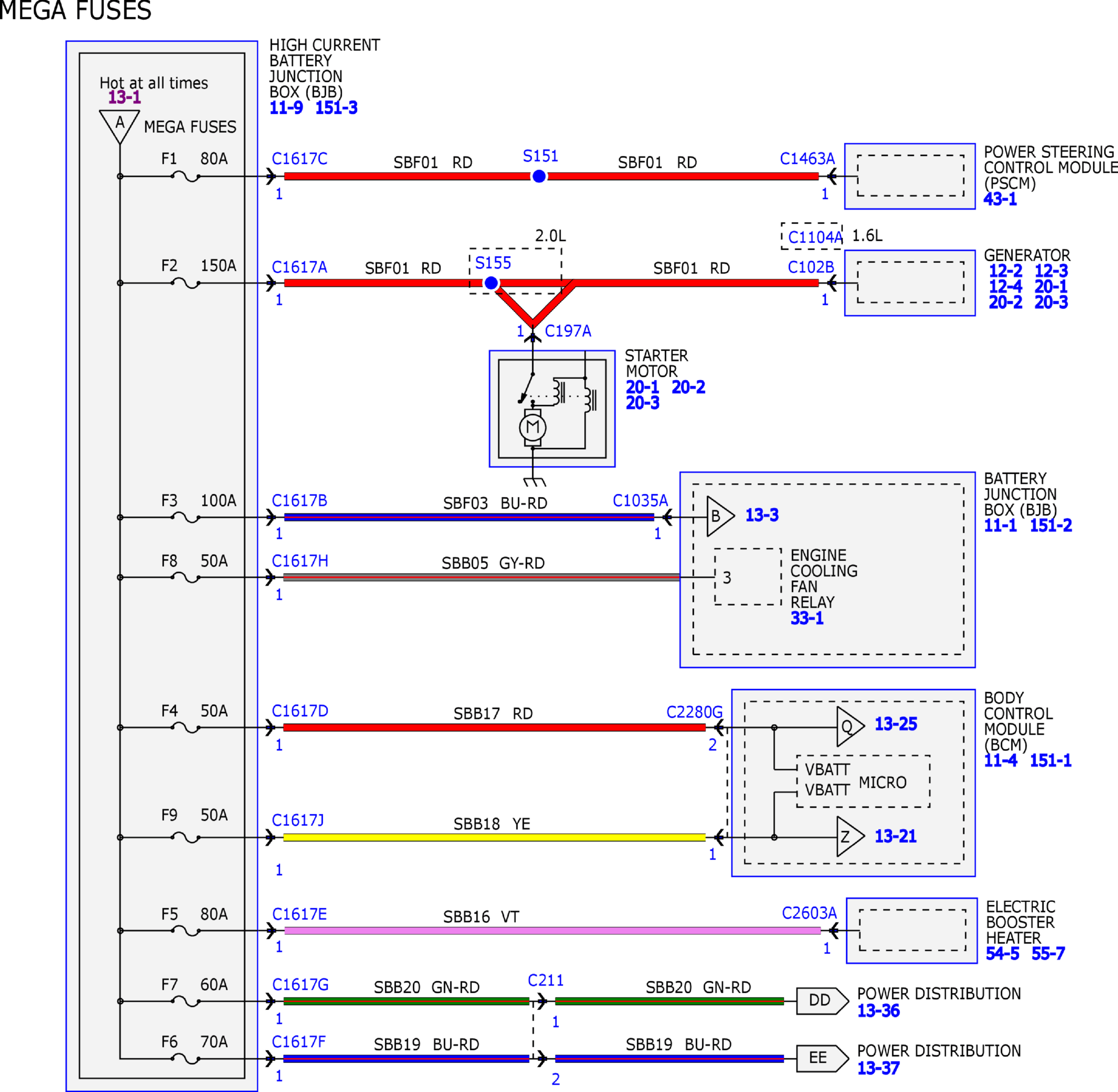

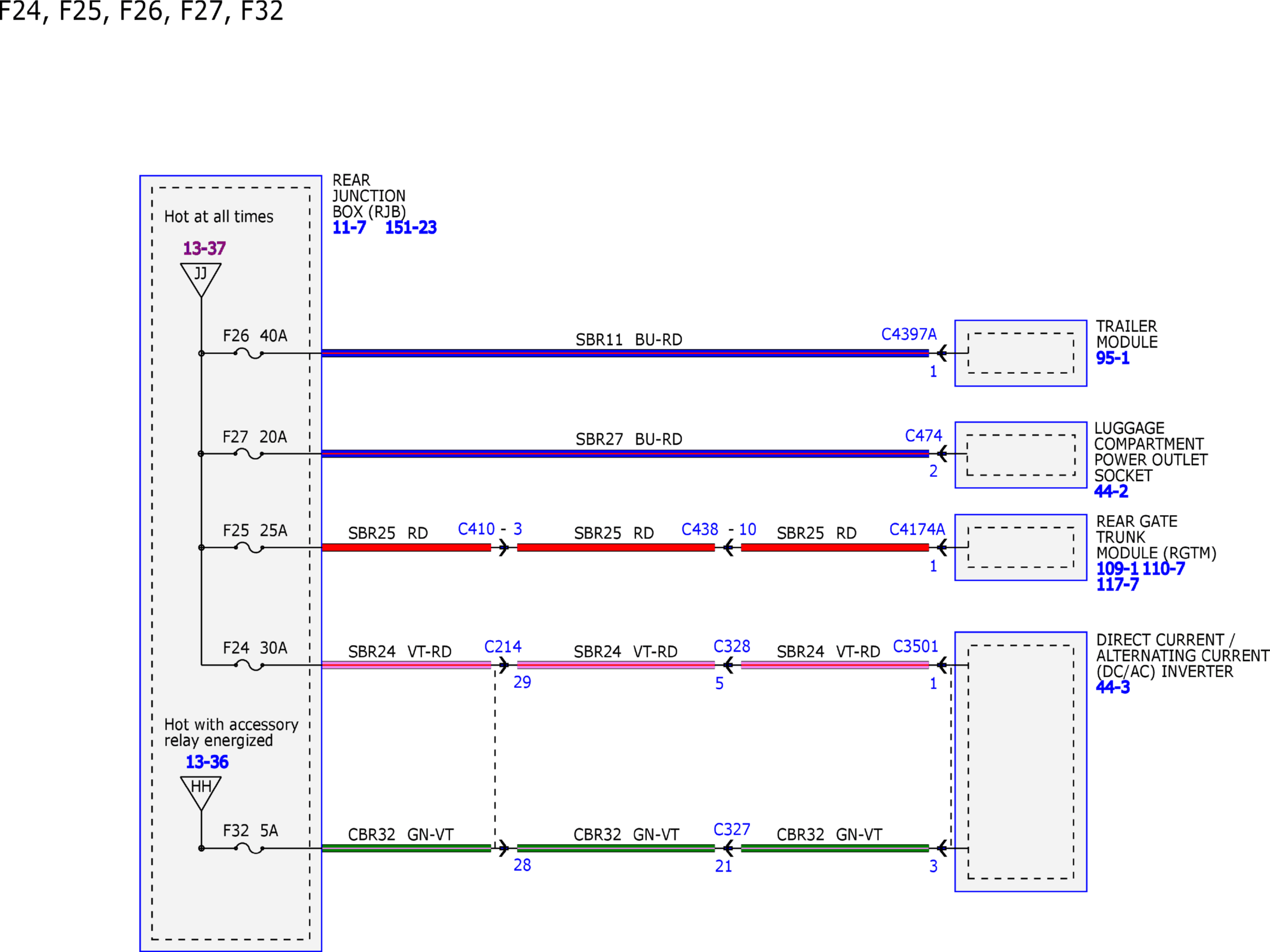

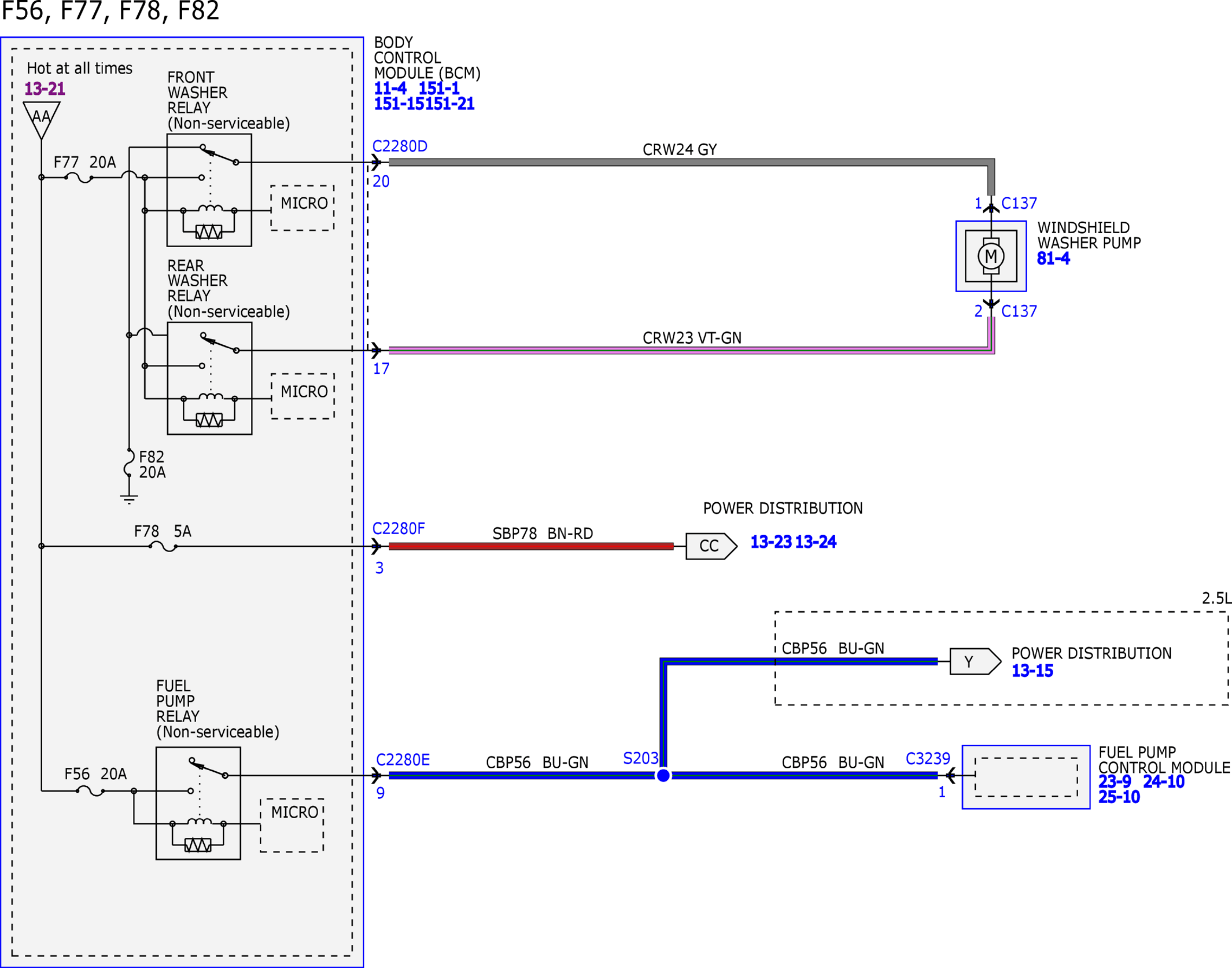

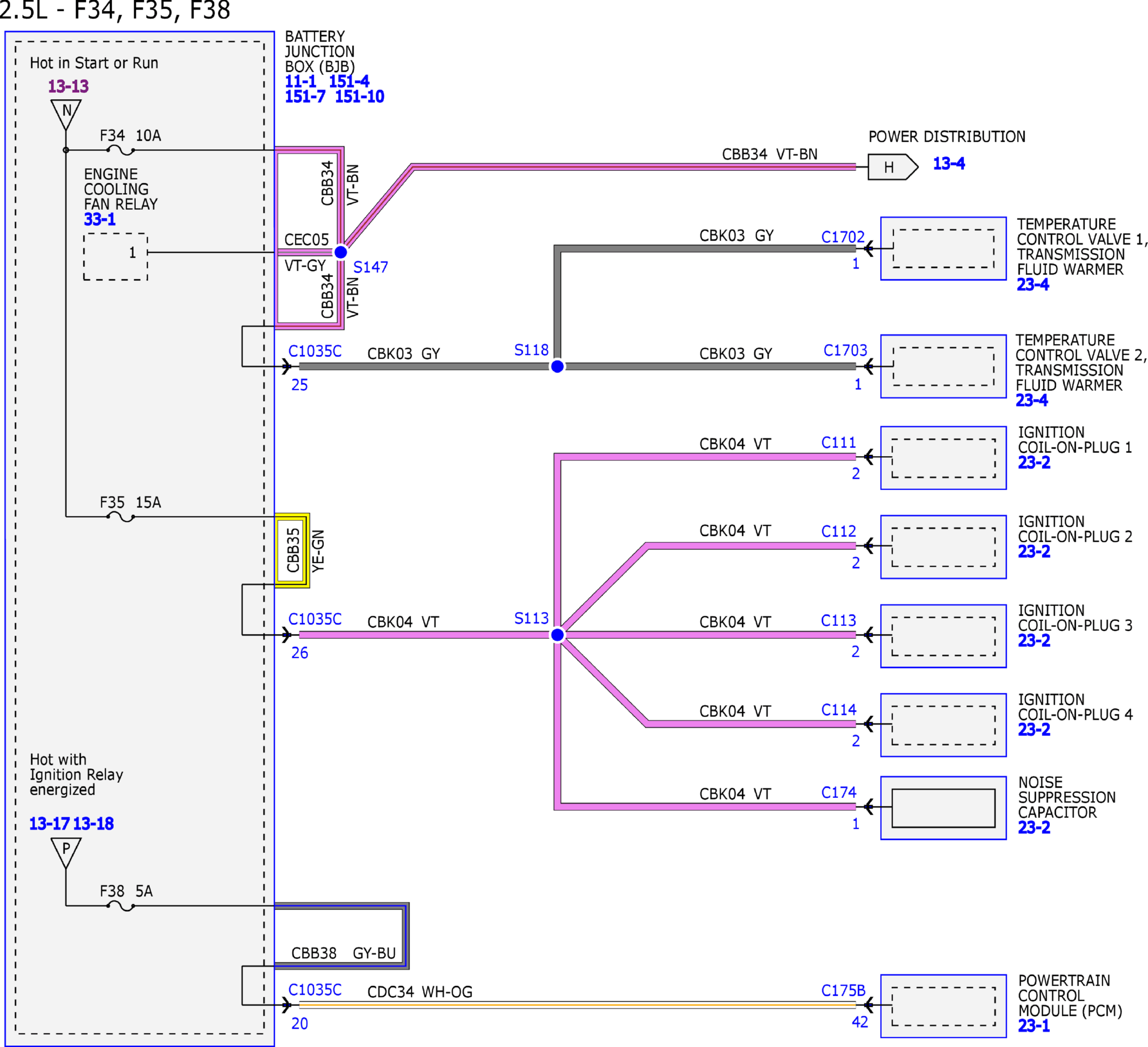

Fig 8: Power Distribution/BCM System Wiring Diagrams (8 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 9: Power Distribution/BCM System Wiring Diagrams (9 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 10: Power Distribution/BCM System Wiring Diagrams (10 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 11: Power Distribution/BCM System Wiring Diagrams (11 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 12: Power Distribution/BCM System Wiring Diagrams (12 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 13: Power Distribution/BCM System Wiring Diagrams (13 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 14: Power Distribution/BCM System Wiring Diagrams (14 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 15: Power Distribution/BCM System Wiring Diagrams (15 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 16: Power Distribution/BCM System Wiring Diagrams (16 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution/BCM System Wiring Diagrams (17 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution/BCM System Wiring Diagrams (18 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution/BCM System Wiring Diagrams (19 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution/BCM System Wiring Diagrams (20 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution/BCM System Wiring Diagrams (21 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution/BCM System Wiring Diagrams (22 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution/BCM System Wiring Diagrams (23 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution/BCM System Wiring Diagrams (24 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution/BCM System Wiring Diagrams (25 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution/BCM System Wiring Diagrams (26 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution/BCM System Wiring Diagrams (27 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution/BCM System Wiring Diagrams (28 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution/BCM System Wiring Diagrams (29 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution/BCM System Wiring Diagrams (30 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution/BCM System Wiring Diagrams (31 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 32: Power Distribution/BCM System Wiring Diagrams (32 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 33: Power Distribution/BCM System Wiring Diagrams (33 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 34: Power Distribution/BCM System Wiring Diagrams (34 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 35: Power Distribution/BCM System Wiring Diagrams (35 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 36: Power Distribution/BCM System Wiring Diagrams (36 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 37: Power Distribution/BCM System Wiring Diagrams (37 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 38: Power Distribution/BCM System Wiring Diagrams (38 of 39)
Courtesy of FORD MOTOR COMPANY
Fig 39: Power Distribution/BCM System Wiring Diagrams (39 of 39)
