Hands-Free Liftgate Actuation Module: Removal

WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

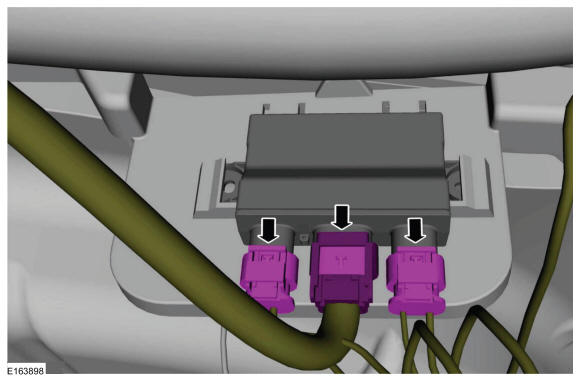

    Disconnect the hands-free liftgate actuation module electrical connectors.
GFD51091Courtesy of FORD MOTOR COMPANY

  1. 2.

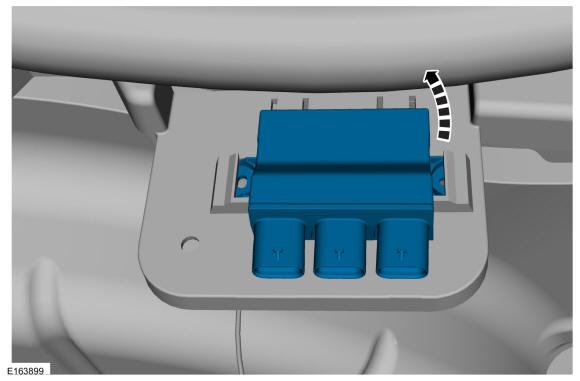

    Remove the hands-free liftgate actuation module.
GFD51092Courtesy of FORD MOTOR COMPANY
