Memory Set Switch

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

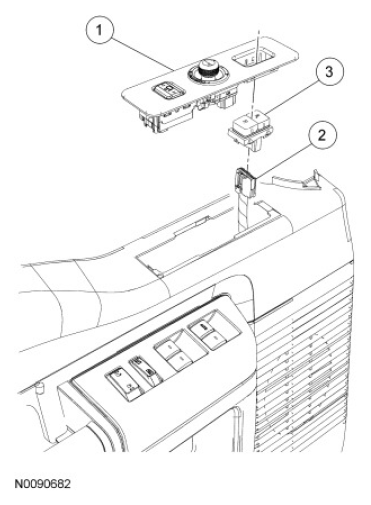

Fig 1: Identifying Memory Set Switch And Electrical Connector

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14525	Switch bezel
2	-	Electrical connector (part of 14631)
3	14776	Memory SET switch

Lift up and separate the switch bezel from the interior door trim panel.
